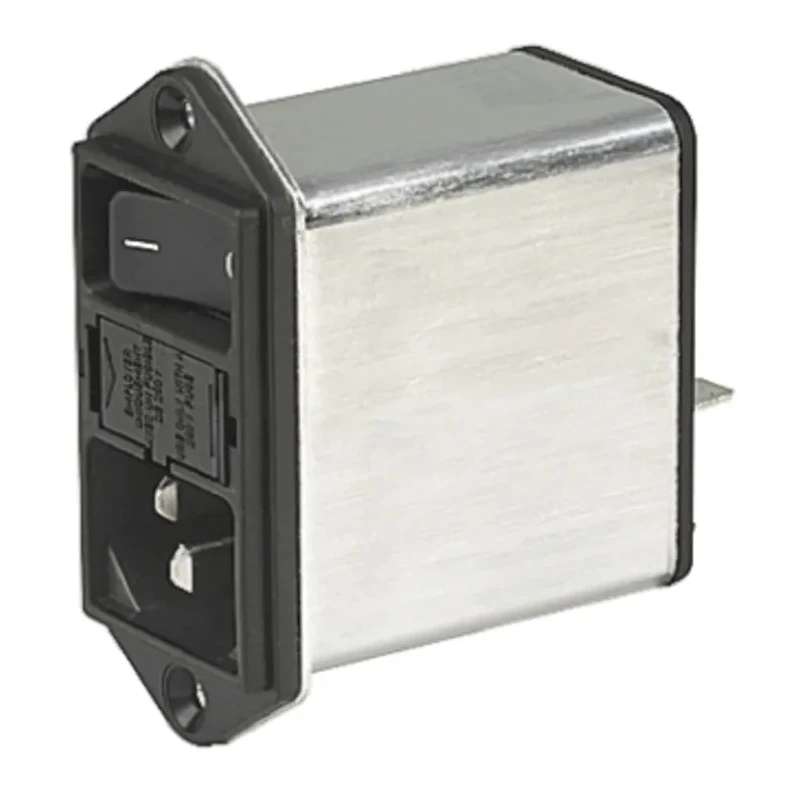

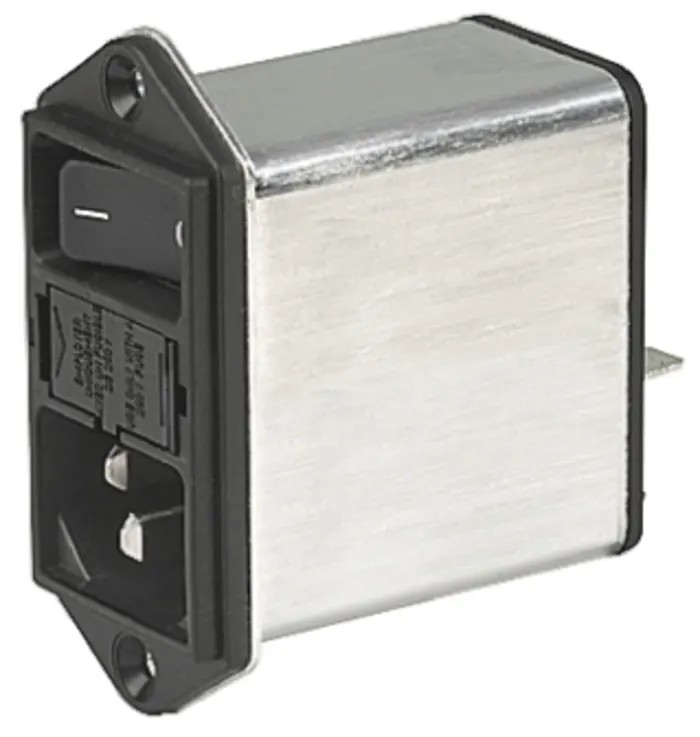

Schurter Panel Mount IEC Connector Male 2 Pole 2 Fuse 250V ac 1A Quick Connect DD12.1321.111

Schurter DD12.1321.111 Panel Mount IEC Connector is a robust and ultra-compact electrical connector designed for industrial and medical applications requiring reliable power connections at 250V ac voltage and 1A current rating.

The connector incorporates a 2 pole switch type with 2 fuse capability, suitable for standard 5 x 20 mm fuses for enhanced protection of electrical circuits. It features a panel mount design that enables secure mounting by screwing on from the front side, ensuring stability in demanding environments.

The termination type is quick connect, with 6.3 x 0.8 mm terminals facilitating rapid and secure wiring connections. The male contact gender and aluminium casing provide excellent shielding and durability, making it ideal for equipment that must comply with medical IEC/EN 60601-1 standards. Additionally, it is qualified for use in equipment adhering to IEC/EN 60950 standards for information technology safety.

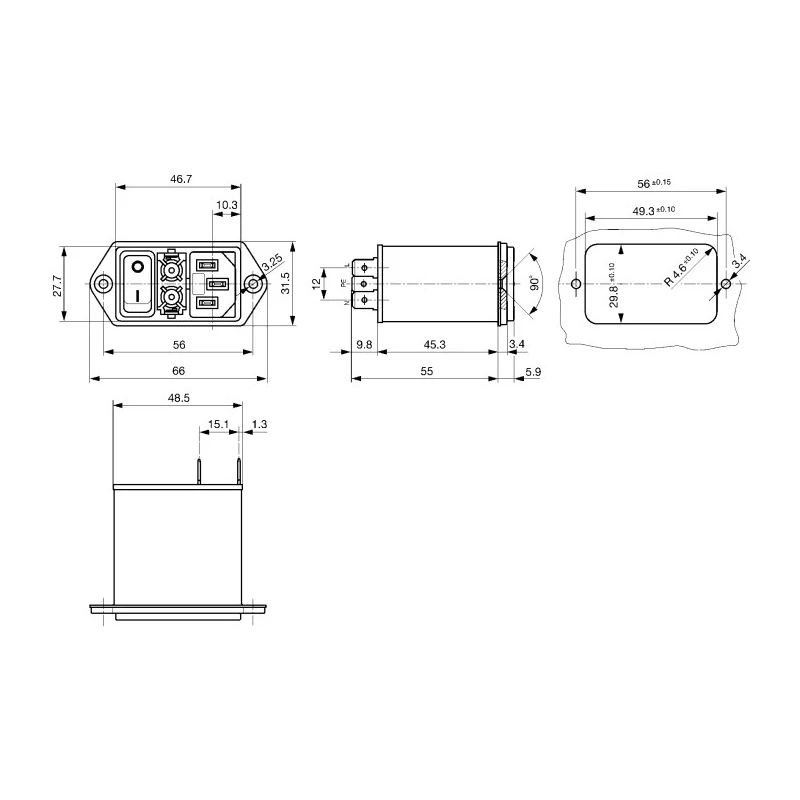

Operating temperature range from -25°C to 85°C allows this connector to function reliably in varied environmental conditions. Its compact size (31.5 mm height, 66 mm width, 60.9 mm depth) supports its use in space-constrained installations while maintaining performance.

This product is part of the Schurter range of IEC filters and connectors, optimized for high transient load applications and standard industrial or medical usage. Note that the fuse drawer required for operation is not included and must be purchased separately.

The connector features a 2 pole switch for reliable electrical control. Includes 2 fuse slots for 5 x 20 mm fuses to provide circuit protection. Panel mount design allows secure front-side screw mounting. Quick connect terminals sized 6.3 x 0.8 mm enable fast wiring.

Aluminium case offers durable shielding against interference. Designed and approved for medical and industrial standards IEC/EN 60601-1 and IEC/EN 60950. Operates effectively across a temperature range from -25°C to 85°C.

Compact dimensions fit tight spaces in equipment and panels. Fuse drawer not included; must be ordered separately for fuse installation.

This Schurter IEC Connector is suitable for electrical, industrial, medical, laboratory, HVAC, manufacturing, and equipment applications requiring dependable power connections with integrated circuit protection. Explore more IEC Connectors and filters in the EnvMart electronics & electricals category.
