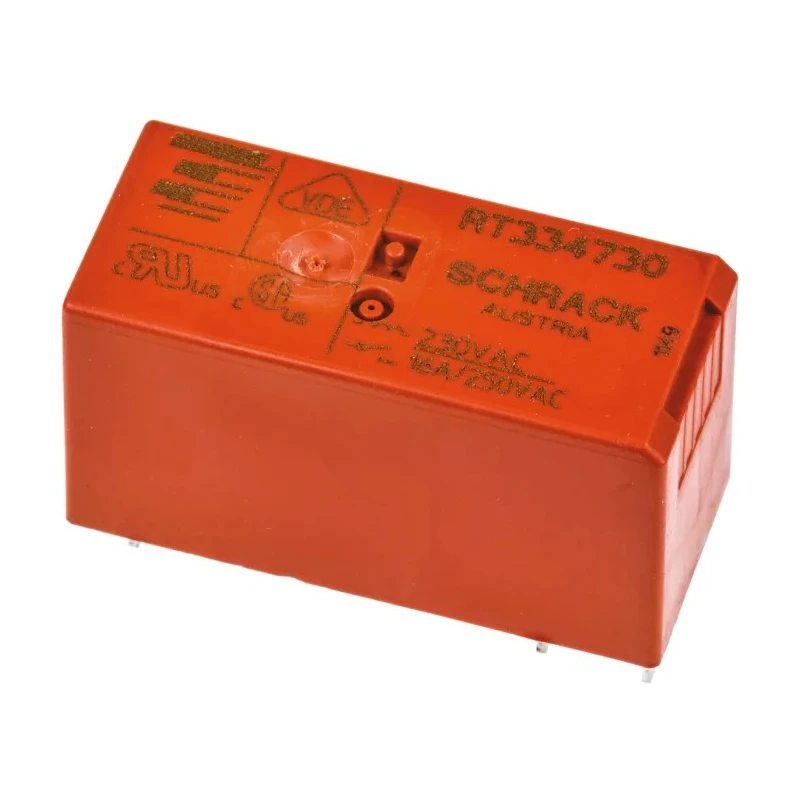

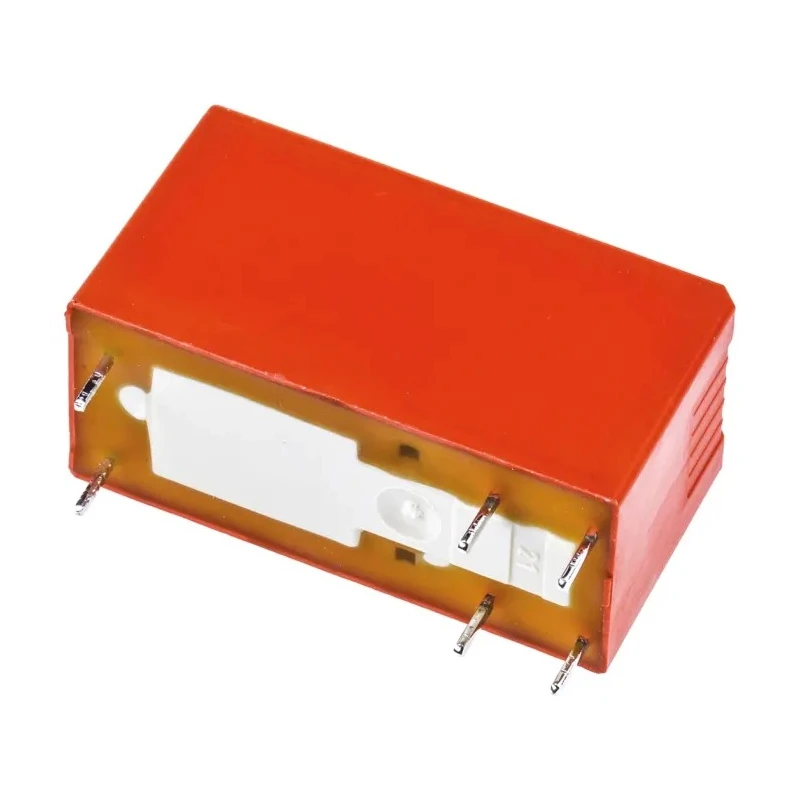

TE Connectivity PCB Power Relay 230V AC Coil 16A Switching Current SPST RT334730
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT334730 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 32.5kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Operates reliably with a coil voltage of 230V AC.
- Single Pole Single Throw (SPST) contact configuration for simple switching applications.
- Capable of switching currents up to 16 amperes and AC voltages up to 400V.
- Compact dimensions with length 29mm, width 12.7mm, and height 15.7mm for easy PCB integration.
- Coil resistance of 32.5 kΩ and low coil power consumption of 250mW.
- Wide operating temperature range from -40°C to 70°C suitable for diverse environments.
- Silver Nickel Alloy contact material ensures durability and reliability.
- Mounts on PCBs using solder terminals, compatible with RT1 series 3.5mm pinning and flux proof design.
Product Description
TE Connectivity RT334730 PCB Power Relay is engineered for high performance in industrial and automation applications, featuring a 230V AC coil and SPST contact configuration. This relay supports a switching current capacity of 16A and an AC switching voltage up to 400V, suitable for controlling power circuits on printed circuit boards.
The relay's robust construction includes Silver Nickel Alloy contacts and solder type terminals, designed for through-hole PCB mounting with a compact form factor measuring 29mm in length, 12.7mm in width, and 15.7mm in height.
With a coil resistance of 32.5 kΩ and coil power consumption of only 250mW, this relay ensures efficient operation with minimal energy usage. It operates reliably over a broad temperature range from -40°C to +70°C, making it suitable for various industrial, domestic, and automation environments.
The RT334730 relay is part of TE Connectivity's RT1 series, featuring 3.5mm pinning and flux-proof design to enhance durability and ease of assembly. Standards compliance with IEC 60335-1, RoHS, and VDE ensures quality and safety in demanding applications.
Operates with 230V AC coil voltage. SPST contact configuration for straightforward switching. Switching current rated at 16A, suitable for moderate power loads. Compact dimensions enable PCB mounting in space-constrained setups.
Coil resistance and power optimized for energy efficiency. Wide temperature tolerance for diverse installation conditions. Silver Nickel Alloy contacts for long service life. Solder terminals provide reliable electrical connections.
Flux-proof pinning for protection during soldering processes. Ideal for interface, automation, domestic, security lighting, and heating system applications. This power relay is a reliable component for engineers and hobbyists seeking robust solutions for power switching tasks in electronics and industrial automation.
Explore more Power Relays and components with TE Connectivity products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 230V AC.
This model can handle a maximum switching current of 16A.
The dimensions of the RT334730 relay are 29mm in length, 12.7mm in width, and 15.7mm in height.
This relay uses a Single Pole Single Throw (SPST) contact configuration.
The relay can switch AC voltages up to 400V.
The coil resistance of this relay is 32.5 kΩ.
The coil power consumption is 250mW.
The operating temperature range for this relay is from -40°C to +70°C.
The contacts in this relay are made of Silver Nickel Alloy.
This relay is mounted on a PCB using solder terminals.
This relay complies with IEC 60335-1, RoHS, and VDE standards.
This relay is manufactured in Austria.
