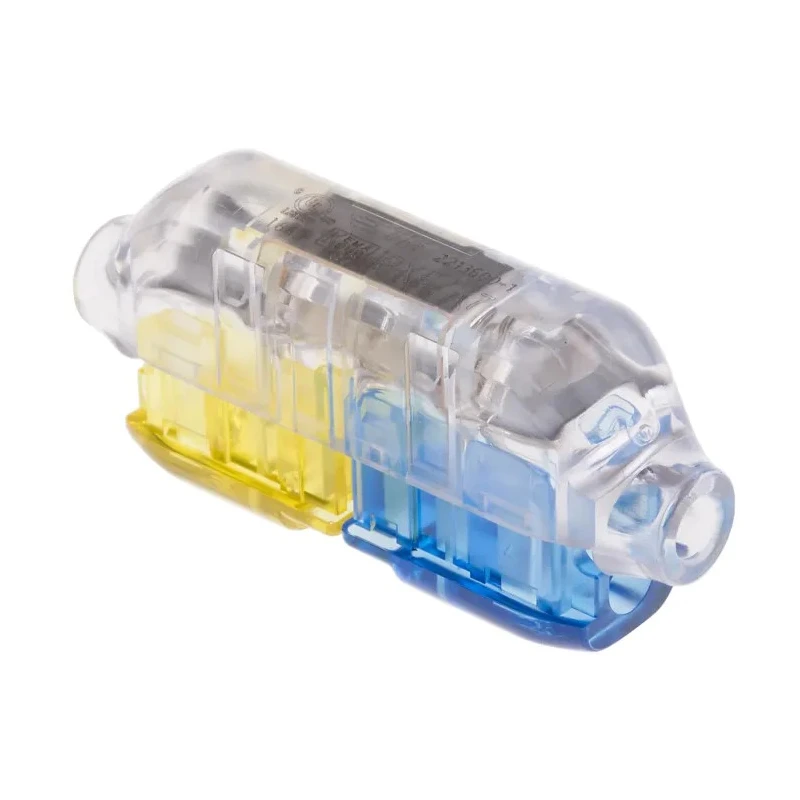

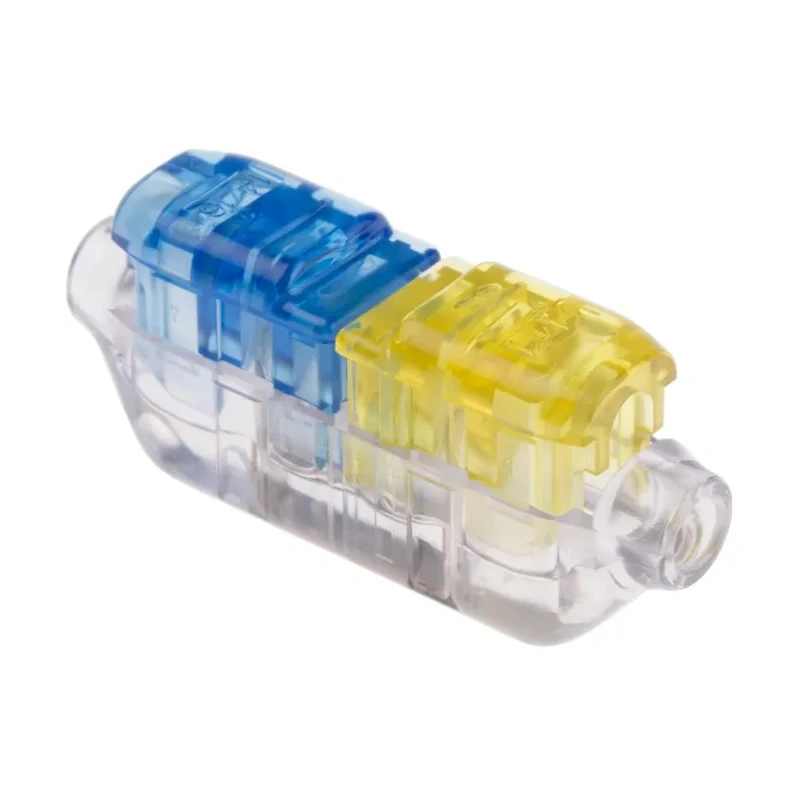

TE Connectivity 221 In Line Splice Connector Clear Insulated Polycarbonate Tin 12 AWG 2213600-1

TE Connectivity 2213600-1 In Line Splice Connector is a high-quality, clear insulated connector suited for splicing wires sized 1.5 mm² (16 AWG) to 4 mm² (12 AWG). This connector features a robust polycarbonate insulation material that is transparent to enable easy visual inspection of wire connections. It is designed to provide reliable, industry-proven connections using push button IDC (Insulation Displacement Connector) termination technology.

The connector utilizes phosphor bronze contacts with tin plating to offer excellent conductivity and corrosion resistance. Independent push buttons on either side allow single-handed termination of wires, simplifying both factory and field installation processes without the need for wire pre-stripping, thereby saving time.

Gel sealing technology protects the internal connections from moisture and contaminants, ensuring IPX8 waterproof ratings that make this connector suitable for harsh environmental conditions. It measures 48 mm in overall length and 12.8 mm in thickness, making it a compact solution for industrial electrical applications.

TE Connectivity 2213600-1 meets international safety standards including UL 486C, IEC 60998-2-3, and UL 94V-2, guaranteeing reliable performance in demanding industrial environments. Typical use cases include roadway and street lighting, signage installations, bridges, tunnels, and indoor lighting fixtures, where durable and easy-to-install wire Splice Connectors are essential.

The push buttons are color-coded for quick wire size identification and independent operation, enhancing installation flexibility and reducing the risk of errors. This allows for secure and fast wire splicing in both new and repair electrical wiring assemblies.

This connector supports wire sizes ranging from 16 AWG to 12 AWG, accommodating 1.5 mm² to 4 mm² wires. It features a durable polycarbonate insulation material with a transparent body for easy visual inspection of connections.

Phosphor bronze contact material with tin plating ensures corrosion resistance and secure electrical contact. Push button termination technology eliminates the need for wire pre-stripping, simplifying installation. Gel sealing offers waterproof protection rated at IPX8, suitable for harsh environment applications.

The connector has a compact overall length of 48 mm and thickness of 12.8 mm. Push buttons are color-coded to aid wire size identification and independent termination. It complies with international standards UL 486C, IEC 60998-2-3, and UL 94V-2 for safety and durability.

Applications include roadway lighting, street lighting, signage, buildings, bridge and tunnel lighting, and indoor light fixtures. Explore related categories and TE Connectivity products on EnvMart for more industrial electrical connectivity solutions.
