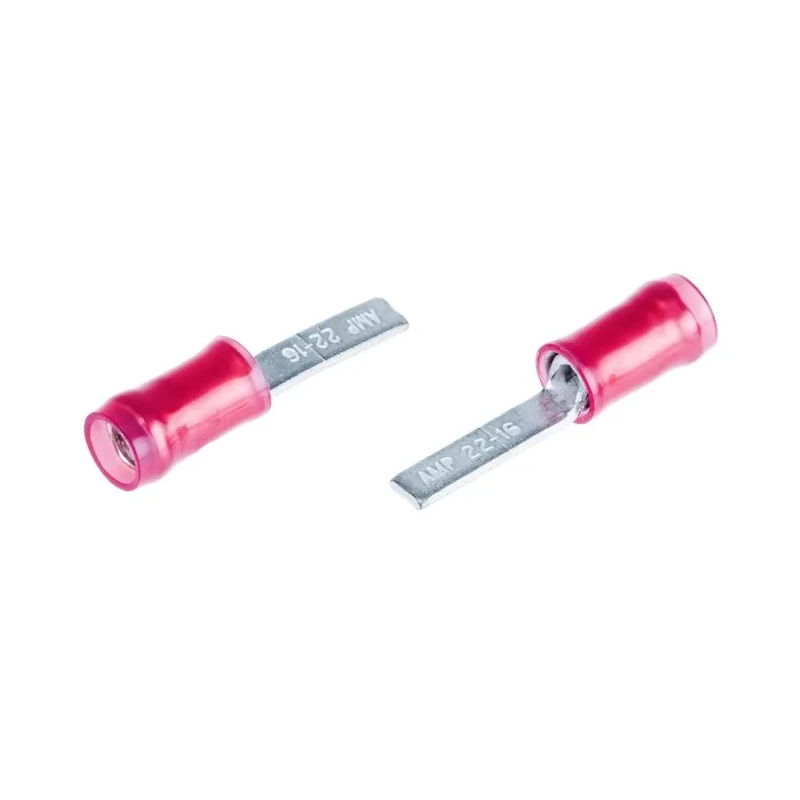

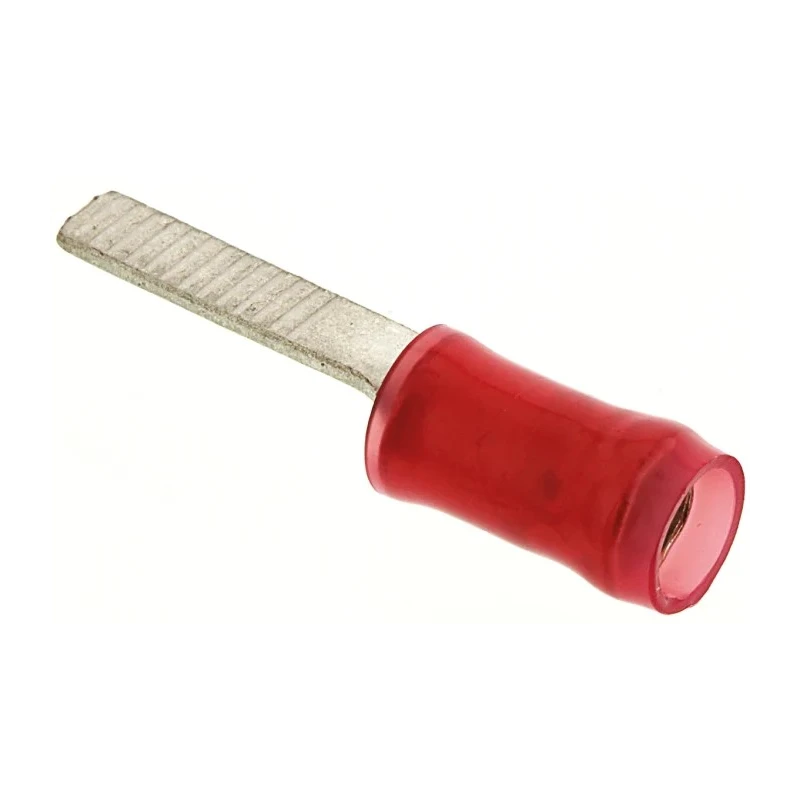

TE Connectivity PIDG Insulated Crimp Blade Terminal Red 12.4 mm Blade Length 22 AWG to 16 AWG 131331

TE Connectivity 131331 PIDG Insulated Crimp Blade Terminal features a 12.4 mm blade length designed for wire sizes ranging from 22 AWG to 16 AWG. This red-insulated terminal uses a nylon sleeve to provide strong insulation and enhanced safety during electrical applications.

The crimp Blade Terminal incorporates a precisely formed metal wire barrel with serrations to ensure maximum contact and tensile strength after crimping. The copper material base is plated with tin to enhance conductivity and resist corrosion.

With an overall length of 23 mm, blade width of 2.95 mm, blade thickness of 0.79 mm, and inside diameter of 3.5 mm, this terminal provides consistent, reliable connections in wire termination tasks. It is UL recognized, ensuring compliance with industry safety standards.

This terminal is ideal for use in electronic components, wire terminals, and splices across industrial, manufacturing, HVAC, and electrical maintenance sectors. Note that it is not intended for use with double wire configurations.

Compatible with wire sizes 22 AWG to 16 AWG. Blade length measures 12.4 mm with a width of 2.95 mm. Constructed with copper contact material and tin plating for reliable conductivity. Insulation made of durable red nylon for safety and durability.

Overall terminal length is 23 mm for secure connections. Designed for precision crimping with serrated metal wire barrel. UL recognized ensuring quality and compliance. Suitable for electrical and electronic connector applications.

Manufactured in the United States maintaining high production standards.

TE Connectivity products are widely trusted in electronics and electrical industries for their quality and performance. Browse EnvMart for more TE Connectivity connectors and terminals to enhance your electrical systems.
