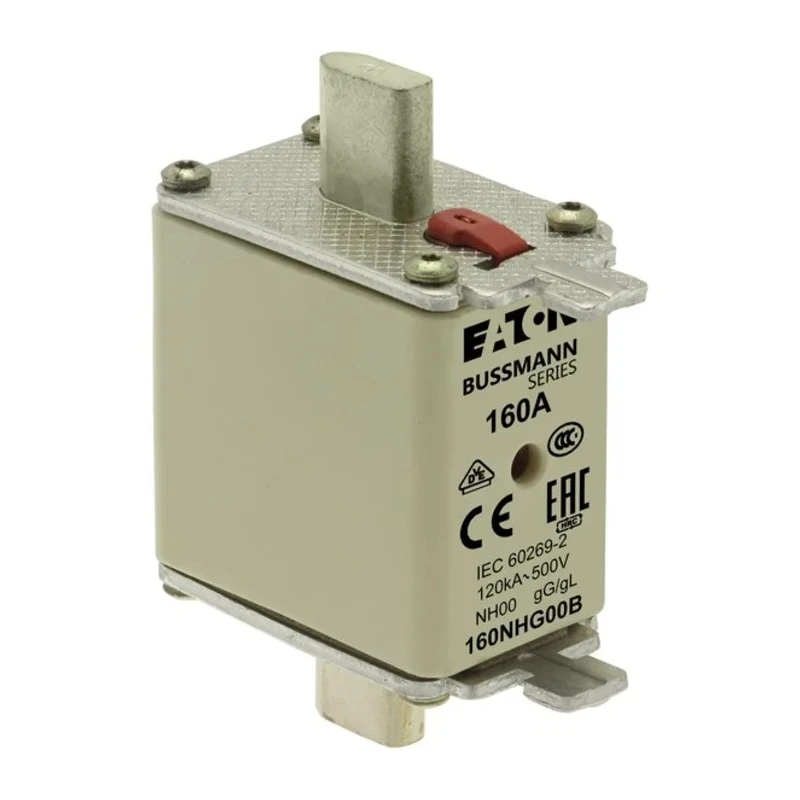

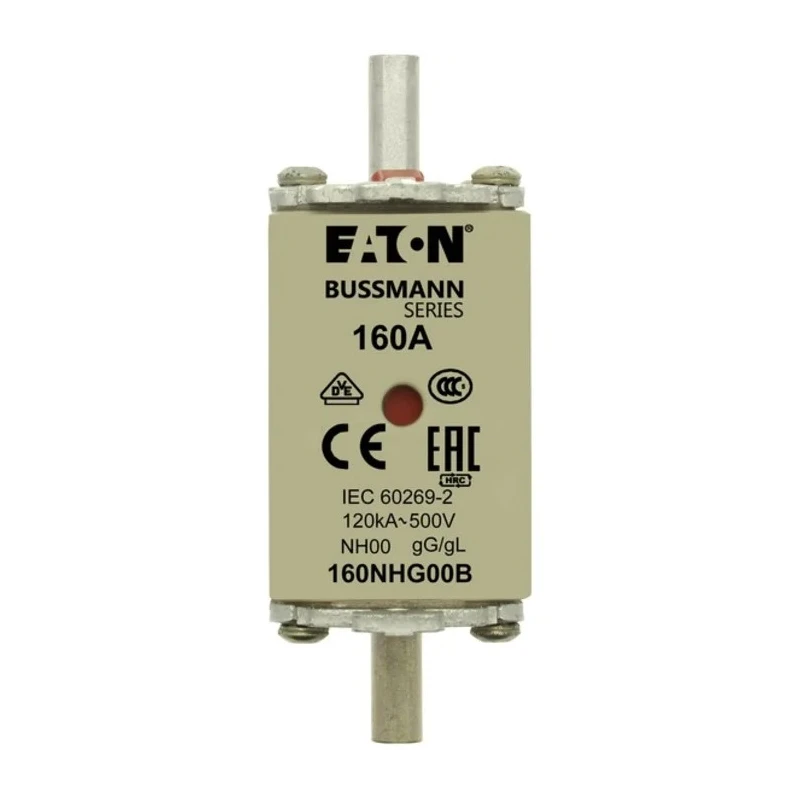

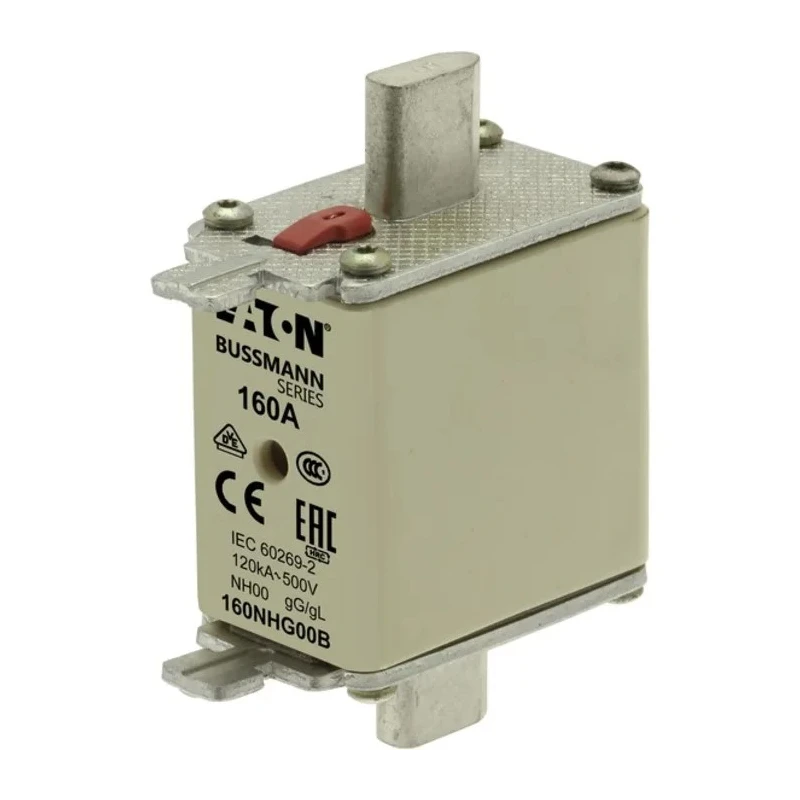

Eaton 160A Centred Tag Fuse NH00 500V AC High Rupture Capacity Dual Indication NH Series

Eaton 160NHG00B Centred Tag Fuse NH00 160A, 500V AC, is designed to protect electrical systems from overloads and short circuits by interrupting power flow reliably. This fuse operates at a current rating of 160A, making it suitable for medium to heavy industrial electrical applications such as motors and assembly lines.

The fuse features a NH series type and compact dimensions (54mm blade length, 78.5mm overall length, 48mm height, and 30mm width) that facilitate easy installation in limited spaces. Its aluminium end plates and plated steel screws resist corrosion, ensuring durability even in moist or harsh industrial environments. The steatite insulator within the fuse is heat-resistant, enhancing safety and stability during operation.

Equipped with a dual indication characteristic and a 6mm wide blade tag, this fuse offers clear status visibility. Its high rupture capacity rating supports effective interruption during fault conditions, aligned with IEC 60269, DIN 43620, and VDE 0636 international safety standards.

With a light weight of 0.19 kg, the Eaton fuse adds minimal mechanical load to your electrical system while maintaining low power loss of 11.2W to ensure operational efficiency. This fuse is ideal for industrial, manufacturing, automation, and electrical motor protection applications.

Rated current of 160A suitable for high-power circuits. Compact dimensions ensure minimal space usage. High rupture capacity enhances safety during fault conditions. Dual indication fuse characteristics for clear operational status.

Constructed with corrosion-resistant aluminium end plates and plated steel screws. Steatite insulator provides excellent heat resistance for reliability. Compliant with IEC 60269, DIN 43620, and VDE 0636 standards. Lightweight design at 0.19 kg minimizes mechanical stress on equipment.

Low power loss of 11.2 W maintains energy efficiency. Explore more Eaton fuses and circuit protection devices in the EnvMart Industrial Electrical section.
