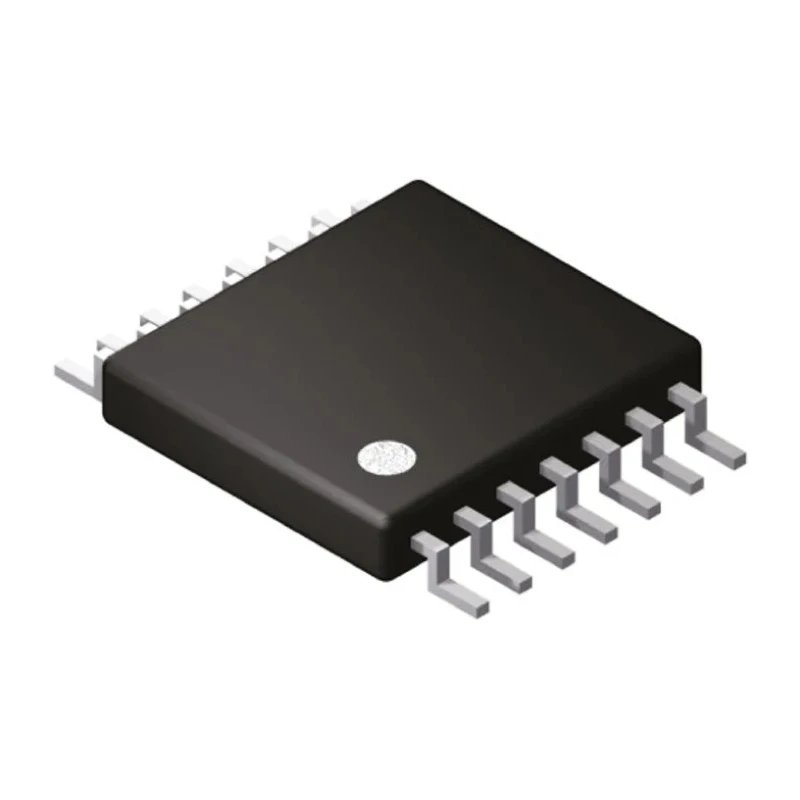

Microchip 4 Channel 16 bit Delta Sigma ADC 0.02 ksps Sampling Rate 14-Pin TSSOP MCP3428-E/ST
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Microchip |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | MCP3428-E/ST |
| Mount Type | Surface |
| Sampling rate | 0.02ksps |
| Series | MCP3428 |
| Input Type | Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-I2C |
| Architecture | Delta Sigma |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Number of ADCs | 4 |
| Programable Data rate options are | 15 SPS, 60 SPS or 240 SPS |
Key Features
- It features a delta sigma architecture for precise analog to digital conversion.
- Supports 4 ADC channels for multi-input applications.
- Operates with a low sampling rate of 0.02 ksps ideal for low-speed data acquisition.
- Designed in a compact 14-pin TSSOP surface mount package for PCB space saving.
- Operates over a wide temperature range from -40°C to 125°C for industrial applications.
- Includes serial I2C interface for easy digital communication.
- Minimum supply voltage is 2.7 V with a maximum of 5.5 V supply voltage.
- Complies with automotive standard AEC-Q100 suitable for automotive environments.
Product Description
Microchip MCP3428-E/ST is a high precision analogue-to-digital converter designed for various industrial, automotive, and electronic measurement applications. This device uses a delta sigma architecture to achieve 16-bit resolution and low sampling rates, making it ideal for sensitive and accurate measurement tasks.
This 4 channel ADC supports multi-input signals, enabling diverse application scenarios such as sensor interfacing, digital signal processing, and instrumentation. The device's serial I2C interface simplifies integration with microcontrollers and digital systems.
Operating voltage ranges from 2.7 V to 5.5 V facilitate compatibility with standard power supply rails in embedded systems. Its automotive-grade AEC-Q100 certification assures reliability in harsh environments including temperature extremes from -40°C to 125°C.
The 14-pin TSSOP package provides a compact footprint suitable for PCB designs requiring small form factors and surface-mount technology. Programmable data rate options (15 SPS, 60 SPS, and 240 SPS) allow users to balance between speed and precision based on application needs.
Common applications include industrial automation, laboratory instrumentation, automotive sensor data acquisition, and general-purpose data conversion tasks. It features a delta sigma architecture for precise analog to digital conversion.
Supports 4 ADC channels for multi-input applications. Operates with a low sampling rate of 0.02 ksps ideal for low-speed data acquisition. Designed in a compact 14-pin TSSOP surface mount package for PCB space saving. Operates over a wide temperature range from -40°C to 125°C for industrial applications.
Includes serial I2C interface for easy digital communication. Minimum supply voltage is 2.7 V with a maximum of 5.5 V supply voltage. Complies with automotive standard AEC-Q100 suitable for automotive environments. Programmable data rate options are 15 SPS, 60 SPS, or 240 SPS to suit different precision needs.
Compact dimensions of 5.1 mm length and 1.2 mm height enable compact circuit designs. Explore EnvMart’s range of semiconductor data converters for integrated and reliable electronic systems.
Explore more products in our Analogue to Digital Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP3428-E/ST features a resolution of 16 bits, allowing for precise analog to digital conversion.
The maximum supply voltage for the MCP3428-E/ST is 5.5 V.
This model operates in a temperature range from -40°C to 125°C, making it suitable for industrial applications.
The MCP3428-E/ST supports 4 ADC channels for multi-input applications.
It operates with a low sampling rate of 0.02 ksps, ideal for low-speed data acquisition.
The MCP3428-E/ST includes a serial I2C interface for easy digital communication with microcontrollers and digital systems.
The programmable data rate options for the MCP3428-E/ST are 15 SPS, 60 SPS, and 240 SPS, allowing users to balance speed and precision.
This ADC is designed in a compact 14-pin TSSOP surface mount package, suitable for PCB space saving.
The height of this model is 1.2 mm.
The length of the MCP3428-E/ST is 5.1 mm.
The MCP3428-E/ST complies with the automotive standard AEC-Q100, making it suitable for automotive environments.
The input type for this model is voltage, allowing it to interface with various sensors and signals.
