Schneider Electric 250V AC DIN Rail Push Button Circuit Trip A9E18036

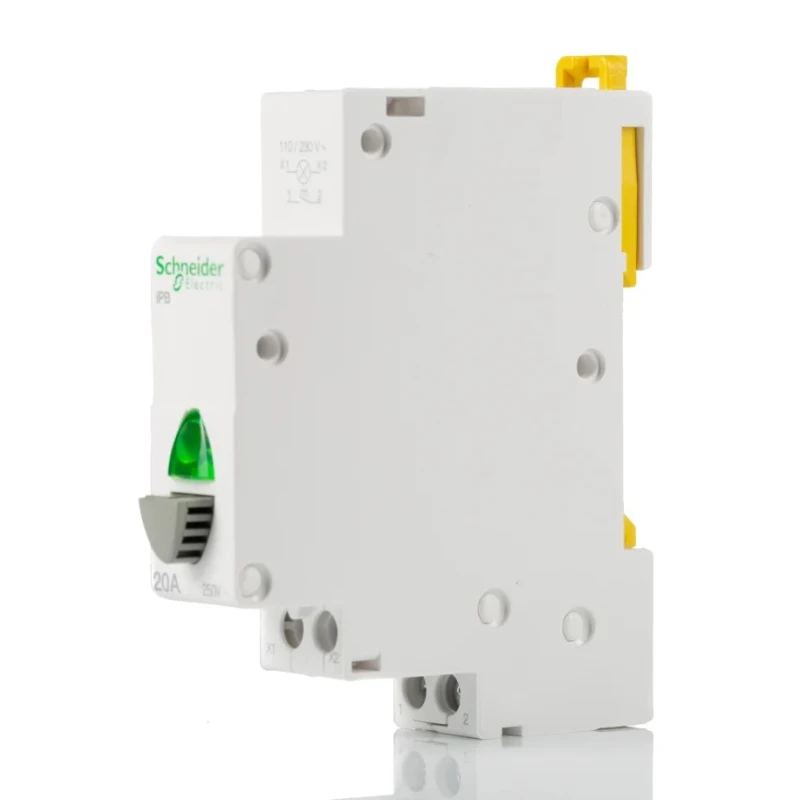

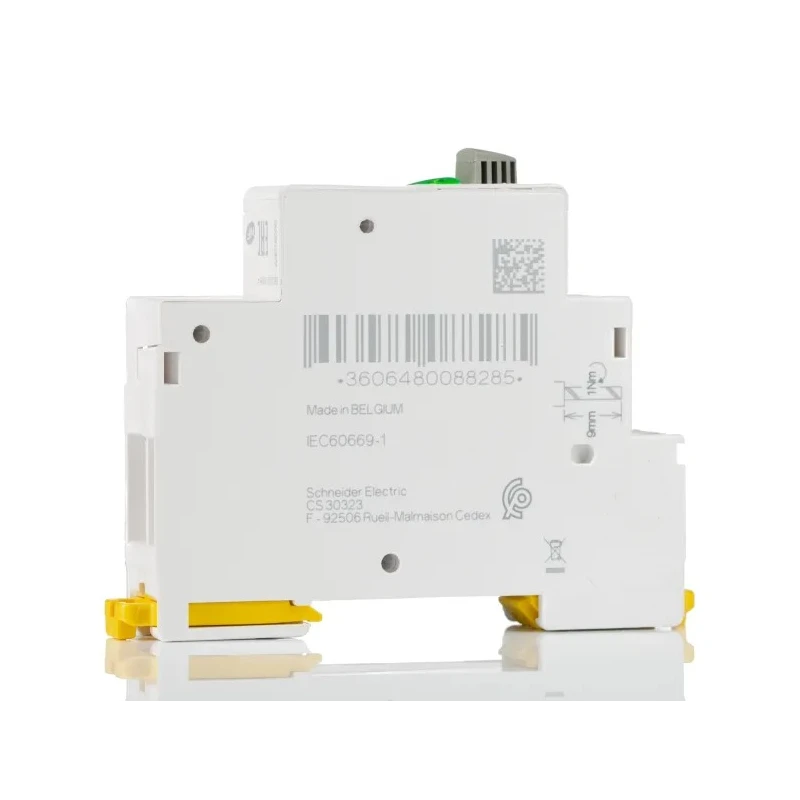

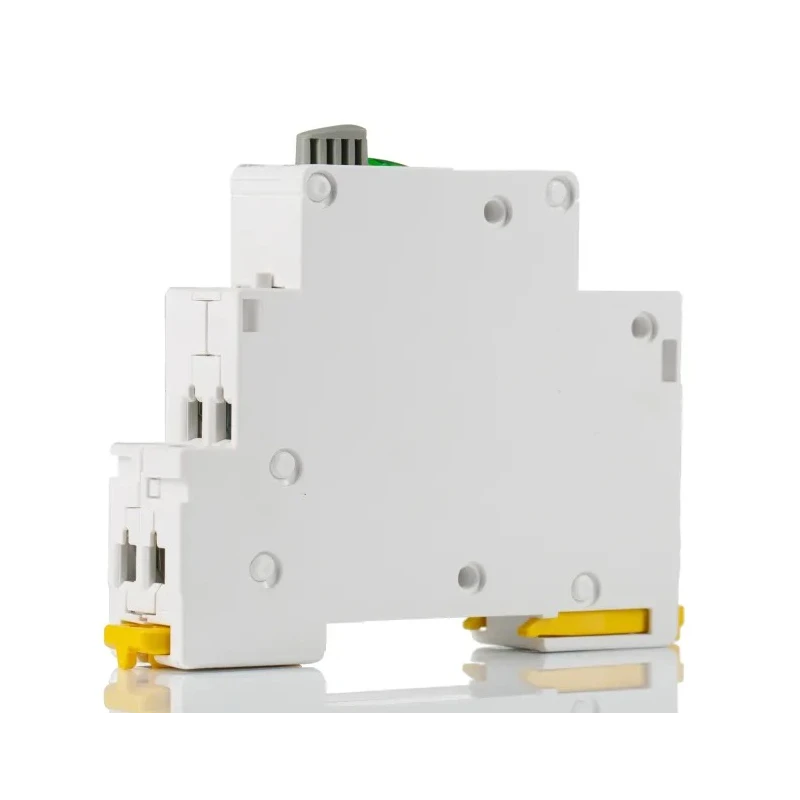

Schneider Electric A9E18036 is a push button circuit trip designed for industrial and commercial electrical systems. It operates at 250V AC and supports a current rating of 20A, making it suitable for controlling high-powered circuits reliably. This DIN rail mount device provides easy installation and compact size, with dimensions measuring 18 mm width, 82 mm height, and 71 mm depth, allowing efficient use of panel space.

The single normally open (1 NO) contact configuration ensures swift circuit activation or break upon pressing the button, with a green LED indicator providing a clear operational status at a glance. Its terminal type is tunnel, facilitating secure and robust wiring connections, ideal for demanding electrical environments.

Designed to withstand harsh working conditions, this circuit trip features an operating temperature range from -35°C up to +70°C and can endure relative humidity up to 95% at +55°C, protecting it against moisture in challenging areas. The robust construction promises a long service life of 100,000 hours, ensuring reliability and reduced maintenance for users in domestic appliances, shower systems, and light switch controls.

This product conforms to international standards IEC 60947-5-1 and IEC 60669-1, assuring safety and performance consistency. It is part of Schneider Electric’s Acti9 Control range, providing users with trusted quality and advanced electrical protection solutions.

Its compact and efficient design coupled with practical features makes the Schneider Electric A9E18036 push button Circuit Trip ideal for industrial, commercial, and residential electrical installations requiring precise control and reliable circuit switching.

This DIN rail mount push button features a 1 NO contact configuration. Equipped with a green LED indicator for operational status. Compact dimensions of 18 mm width, 82 mm height and 71 mm depth minimize space usage. Operates reliably within a temperature range of -35°C to +70°C.

Offers maximum operating humidity tolerance of 95% at +55°C. Manufactured for durability and long service life of 100,000 hours. Terminal type is tunnel for secure wire connections. Compliance with IEC 60947-5-1 and IEC 60669-1 standards.

Part of Schneider Electric's Acti9 Control series, range Acti9. Explore more premium electrical protection devices and accessories with Schneider Electric offerings at EnvMart.
