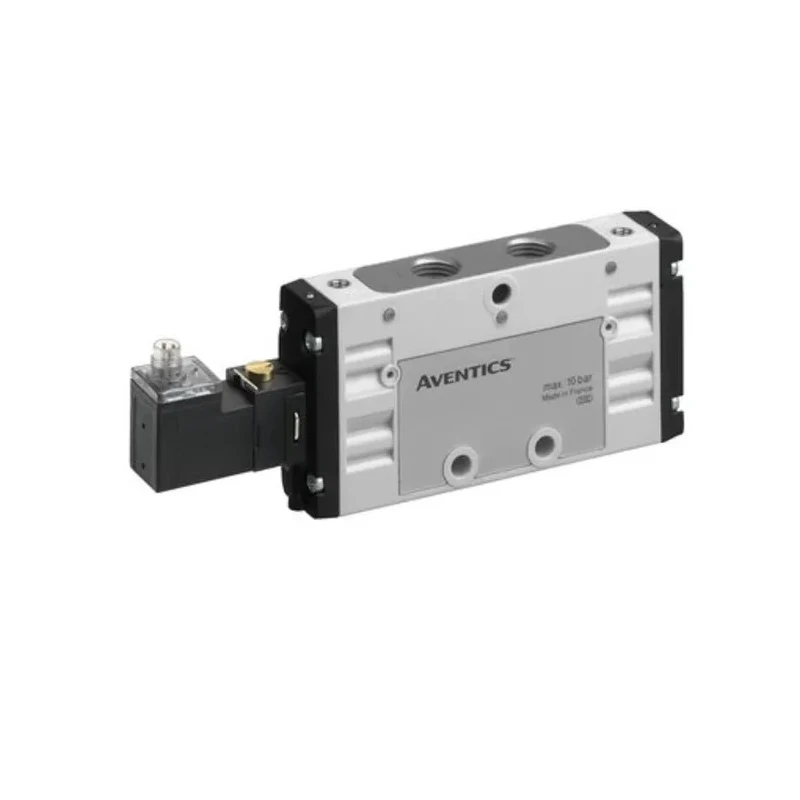

EMERSON ? AVENTICS EMERSON AVENTICS Pneumatic Solenoid Valve 5/2 Solenoid G Series 24V DC 2.2W Power TC15

EMERSON AVENTICS TC15 Pneumatic Solenoid Valve 5/2 Series with 24V DC voltage and 2.2W solenoid power consumption is engineered for industrial fluid power control applications. It offers a massive flow from its 21 mm wide body, delivering 1500 L/min for all 5/2 functions and 1300 L/min for 5/3 functions. This valve is designed to be mounted on a P-strip manifold, providing efficient space usage and flexible configuration in pneumatic systems.

The spool valve design includes a non-overlapping spool with 2 positions and integrates a reliable M8 3-pin electrical connection rated to IP65 for protection against dust and water exposure. The valve's body comprises fibreglass reinforced polyamide, offering excellent mechanical strength and chemical resistance.

It operates under a maximum pressure of 10 bar, with a maximum pilot pressure of 2.5 bar and minimum pilot pressure of 10 bar, suitable for a range of pneumatic control applications. The seals are made from Acrylonitrile Butadiene Rubber and Hydrogenated Nitrile Butadiene Rubber, ensuring durability and resistance to oil content in compressed air from 0 to 5 mg/m3.

Operating temperature ranges from -10°C to 50°C support a broad usability spectrum across industrial environments. With built-in manual override featuring detent functionality, the valve allows manual actuation during maintenance or emergencies.

The product complies with RoHS standards, reflecting its environmental compliance, though it does not have any hazardous area certification. The external pilot design also permits use in vacuum applications, enhancing the valve's versatility.

This valve suits pneumatic system applications in manufacturing, automation, and fluid power control across industrial, laboratory, and commercial sectors. This 5/2 solenoid valve delivers high flow capacity of 1500 L/min for effective pneumatic control.

The fibreglass reinforced polyamide body provides mechanical strength and chemical resistance. Operates at 24V DC with low power consumption of 2.2W via an M8 3-pin connection. Supports manifold mount configuration with a robust spool valve design and manual override.

Seals made of durable Acrylonitrile Butadiene Rubber variants withstand oil content up to 5 mg/m3. Wide operating temperature range (-10°C to 50°C) suitable for diverse environments. External pilot option allows vacuum application compatibility, enhancing versatility.

Complies with RoHS environmental standards for safe industrial use. Explore more Pneumatic Solenoid Valves and related industrial control products at EnvMart to meet your automation needs.
