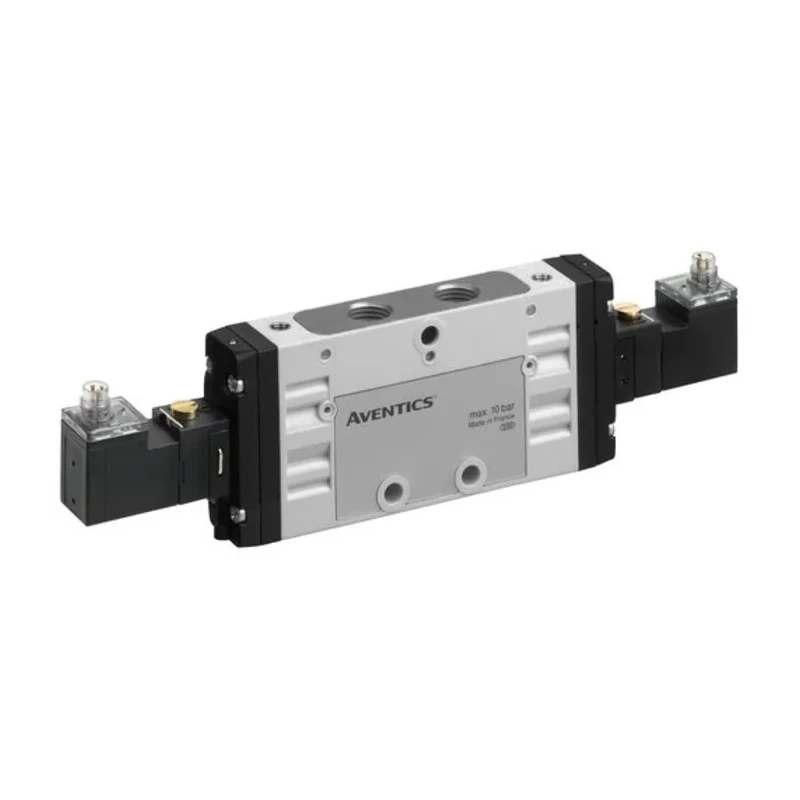

EMERSON ? AVENTICS Pneumatic Solenoid Valve Pilot G 1/4 in G Port 24V dc 1300L/min Max Flow R422100992

EMERSON AVENTICS R422100992 Pneumatic Solenoid Valve Pilot G TC15 Series is a high-performance valve engineered for industrial pneumatic applications. Featuring a voltage rating of 24V dc and a port size of 1/4 in G, this valve provides efficient control of compressed air within pneumatic systems.

The valve body is made from robust fiberglass reinforced polyamide, ensuring strength and lightweight durability. Its spool valve design with zero overlap and three positions delivers precise control over airflow, making it ideal for automated systems requiring rapid switching.

Operating reliably within a pressure range of up to 10 bar, and supporting pilot pressures from 3 to 10 bar, it meets demanding pneumatic control requirements. The seal materials combine hydrogenated nitrile butadiene rubber and acrylonitrile butadiene rubber, offering excellent resistance to wear, oil, and compressed air contaminants.

Designed for manifold strip mounting, the valve is easy to integrate into assemblies, supporting massive flow rates of up to 1300L/min suitable for 5/3 valve functions, and even higher flows for 5/2 configurations. Its electrical connection includes an M8 3-pin with IP65 protection, ensuring durability in harsh environments.

This valve features an external pilot option allowing vacuum applications and a manual override with detent for maintenance and testing procedures. It supports a 100% duty cycle and is designed to operate under a maximum particle size of 5 μm and oil content levels from 0 to 5 mg/m3 in compressed air, making it suitable for sensitive industrial environments.

Originating from France, the R422100992 valve is perfect for use in industrial automation, fluid power systems, HVAC, manufacturing lines, and various pneumatic control applications demanding reliability and long service life.

This TC15 series pneumatic solenoid valve features a robust fiberglass and polyamide body. The valve supports manifold strip mounting for ease of installation. Designed for operating pressures up to 10 bar and pilot pressures between 3 and 10 bar.

It has a spool valve function with zero overlap and three valve positions. Seal materials include hydrogenated nitrile butadiene rubber and acrylonitrile butadiene rubber for durability. Suitable for operating temperatures ranging from -10°C to 50°C.

The valve includes an M8 3-pin electrical connection with IP65 rating. Allows external pilot option enabling vacuum applications. The design supports 100% duty cycle with maximum particle size of 5 μm in compressed air. Its compact design offers massive flow capacity from a 21 mm wide body, suitable for both 5/2 and 5/3 functions.
