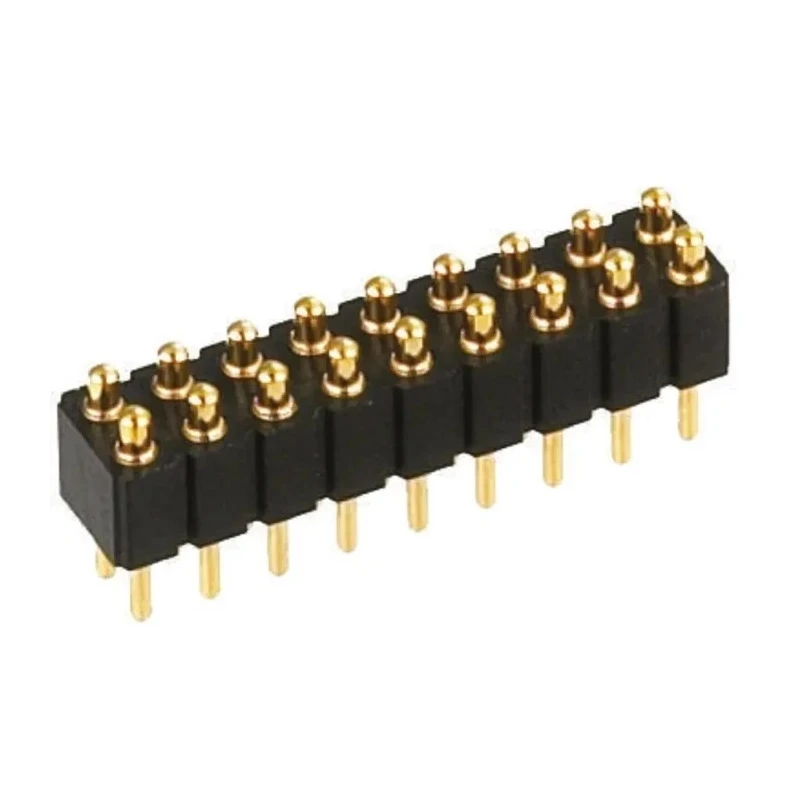

Preci-Dip 813 Series Straight Through Hole Spring Loaded Connector, 20 Contacts, 2.54 mm Pitch, 2 Row 813-S1-020-10-015101

Preci-Dip 813-S1-020-10-015101 Spring Loaded Connector is a high-reliability electronic component designed for through hole PCB mounting with 20 contacts arranged in 2 rows at a 2.54 mm pitch. Featuring spring-loaded contacts, it provides low, stable electrical resistance under vibration or movement, guaranteeing consistent multipoint connectivity.

The connector’s housing is constructed from fiberglass reinforced polyethylene terephthalate, ensuring mechanical strength and thermal stability. Contacts are made of brass with gold plating, enhancing conductivity and resisting corrosion over long-term use.

Operating temperatures span from -55°C to 125°C and the connector supports up to 3.5A current with a voltage rating of 150V. The plastic body stands 4 mm tall, with a plunger stroke length of 1.4 mm, optimizing contact pressure and reliability.

This shrouded DIL style connector protects terminals from damage and is ideal for use in industrial electronics manufacturing, PCB assemblies, and applications requiring reliable, low-resistance connections that withstand thermal and mechanical stress.

Straight orientation for through hole mounting on printed circuit boards. 20 gold-plated brass contacts for durable and effective electrical conduction. Spring-loaded multipoint connection ensures low contact resistance.

Fiberglass reinforced housing material offers mechanical durability. Wide operating temperature range from -55°C to 125°C. Supports 150V maximum voltage and 3.5A current rating. Shrouded design prevents misalignment and protects contacts.

Compact plastic body height of 4 mm with 1.4 mm plunger stroke length. Manufactured in Switzerland to meet stringent quality standards.

This connector is suitable for use in electronic, industrial, telecommunications, and other manufacturing applications requiring precise, robust PCB connector solutions. Browse the Electronics & Electricals category at EnvMart for more PCB connector options and related components.
