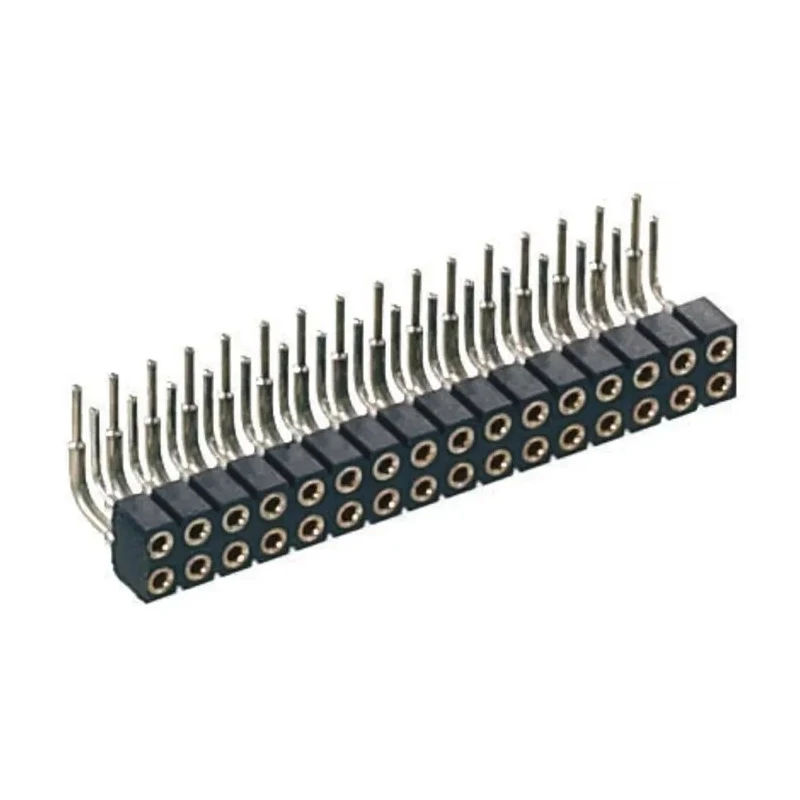

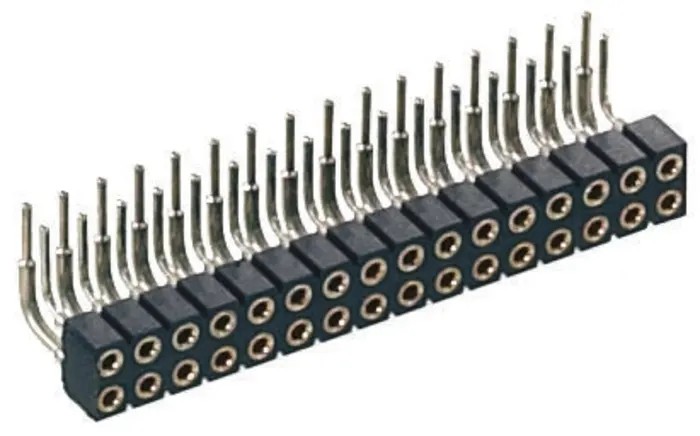

Preci-Dip 833 Series Right Angle PCB Socket 20-Contact 2 Row 2 mm Pitch Solder Termination 150V 12A 833-87-020-20-001101

Preci-Dip 833-87-020-20-001101 Right Angle PCB Socket is a high-quality board-to-board connector designed for reliable electrical connections in electronic assemblies. Featuring 20 contacts arranged in 2 rows with a precise 2 mm pitch, it provides a secure fit for mating pins ranging from 0.4 to 0.66 mm in diameter or 0.5 mm square. The connector's housing is made from black glass filled polyester, providing excellent mechanical strength and thermal resistance.

The contact components are crafted from beryllium copper alloy with a gold flash plating to ensure superior conductivity and corrosion resistance. This socket supports a voltage rating of 150V and a current rating of 12A, making it suitable for various industrial and electronic applications.

Its right angle orientation allows for efficient circuit board layout and space-saving installations. Designed for solder termination, it offers robust electrical connections that are durable under thermal and mechanical stress.

The connector meets UL 94V-0 flame retardant standards and can operate safely up to a maximum temperature of 125°C, ensuring reliability in demanding operational environments.

This 833 Series socket is ideal for industrial electronics manufacturing, laboratory equipment, telecommunications, and other applications requiring secure board-to-board interfacing.

Right angle orientation ensures efficient PCB mounting. Durable black glass filled polyester housing material. Beryllium copper alloy contacts with gold flash plating. Supports 150 volts and 12 amperes current rating. Maximum operating temperature of 125°C.

Solder termination for secure connections. Conforms to UL 94V-0 flammability standard. Compact 2 mm pitch and 2-row design. Compatible with mating pins 0.4 to 0.66 mm diameter or 0.5 mm square. Explore more products in our PCB Sockets category to find connectors that meet your project's technical requirements.
