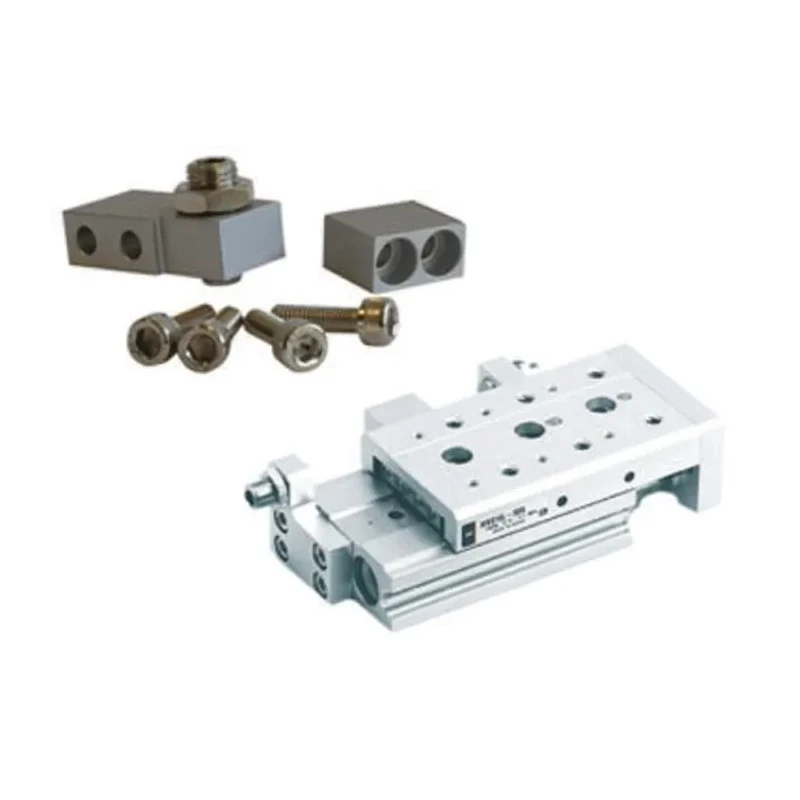

SMC Pneumatic Guided Cylinder MXS Series Double Acting Vertical, Lateral Mount Dual Piston Rod MXS-AT20
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Maximum Operating Pressure | 0.7 Mpa |
| Model | MXS-AT20 |
| Mount Type | Vertical, Lateral |
| Series | MXS |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Rod Type | Dual Piston Rod |
| Action Type | Double Acting |
| Guide Type | Cross Roller Bearing |
Key Features
- Allows precision guiding with cross roller bearing integration.
- Operates within temperature range of -10°C to 60°C.
- Maximum operating pressure is 0.7 Mpa ensuring reliable force output.
- Suitable for vertical and lateral mounting arrangements.
- Dual piston rod design enhances stability and reduces rotation.
- Magnetic piston included as standard for auto switch compatibility.
- Compact design with stroke adjustment options from 10mm to 150mm.
- Manufactured in Japan ensuring high-quality standards.
Product Description
SMC MXS-AT20 Pneumatic Guided Cylinder, part of the MXS Series, is a high precision double acting cylinder designed for reliable and compact pneumatic movement applications.
This guided cylinder features a dual piston rod and cross roller bearing, which together provide accurate linear motion and stability throughout its operational stroke adjustment range of 10 to 150mm.
It supports vertical and lateral mount types, making it versatile for integration in varied industrial environments such as manufacturing automation, assembly lines, and material handling systems.
With a maximum operating pressure of 0.7 Mpa and a piston speed up to 500 mm/s, this cylinder ensures consistent performance under moderate pneumatic loads. It is capable of operating in ambient temperatures ranging from -10°C to 60°C, making it suitable for multiple working conditions.
The magnetic piston incorporated as standard allows compatibility with flush mountable auto switches, enhancing its sensing capabilities for automated control.
Designed and manufactured in Japan, the product meets stringent quality requirements and is suitable for a wide range of pneumatic guided cylinder uses in industrial, laboratory, and commercial applications.
Allows precision guiding with cross roller bearing integration. Operates within temperature range of -10°C to 60°C. Maximum operating pressure is 0.7 Mpa ensuring reliable force output. Suitable for vertical and lateral mounting arrangements.
Dual piston rod design enhances stability and reduces rotation. Magnetic piston included as standard for auto switch compatibility. Compact design with stroke adjustment options from 10mm to 150mm. Manufactured in Japan ensuring high-quality standards.
This Pneumatic Guided Cylinder is ideal for industries requiring precise guidance, stable motion control, and compact pneumatic actuators, including manufacturing, automotive, electronics assembly, and automation solutions.
Explore the industrial tools & equipment category for more pneumatic cylinder and actuator products suited to enhance your system's productivity and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 0.7 Mpa.
It operates within a temperature range of -10°C to 60°C.
This unit supports both vertical and lateral mounting arrangements.
The stroke adjustment options for this model range from 10mm to 150mm.
It features a dual piston rod design, which enhances stability and reduces rotation.
The MXS-AT20 utilizes a cross roller bearing for precision guiding.
The maximum piston speed is up to 500 mm/s.
Yes, a magnetic piston is included as standard for auto switch compatibility.
This model is manufactured in Japan.
It operates as a double acting cylinder.
This pneumatic guided cylinder is suitable for manufacturing, automotive, electronics assembly, and automation solutions.
Key features include precision guiding with cross roller bearing integration, a dual piston rod design, and compatibility with auto switches.
