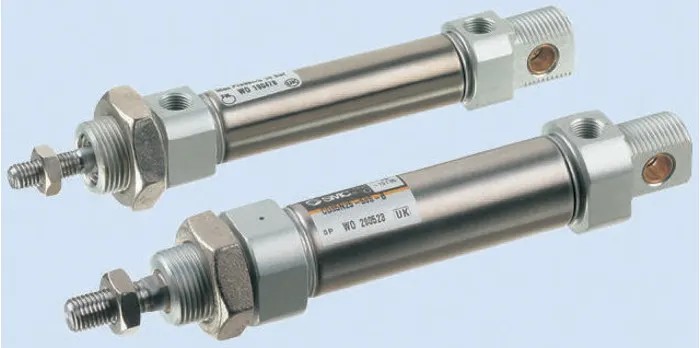

SMC 50 mm Pneumatic Piston Rod Cylinder CD85 Series Double Acting Aluminium Alloy Body 176mm Length 50mm Stroke

Free Delivery in India | Lowest Global Shipping Charges

SMC 50 mm Pneumatic Piston Rod Cylinder CD85 Series Double Acting Aluminium Alloy Body 176mm Length 50mm Stroke



Category Pneumatic Piston Rod Cylinder Brand SMC Condition New

Specifications

Country of Origin	India
Brand	SMC
Body Material	Aluminium Alloy
Length	176mm
Model	CD85
Mount Type	Both Ends Tapped
Series	CD85
Maximum Operating Temperature	60°C
Stroke Length	50mm
Rod Type	Single
Action Type	Double Acting
Standards/Approvals	ISO 6432
Cushioning Type	Air Cushion
Piston Rod Gender	Female
Piston Rod Thread Standard	Metric
SMC 50 mm Pneumatic Piston Rod Cylinder - CD85 Series, Double Acting ActingBrand	SMC

Key Features

This cylinder complies with ISO 6432 standard ensuring quality and compatibility.
Features air cushioning type for smooth operation and reduced impact.
Single rod type designed with female piston rod thread and metric standard.
Maximum operating temperature is 60°C, suitable for diverse industrial applications.
Compact length of 176mm with a 50mm stroke length for precise motion control.
Constructed from corrosion-resistant aluminium alloy body for durability.
Incorporates abrasion-resistant seals and replaceable piston rod seal for longevity.
Double-swaged anodised aluminium end caps provide airtight sealing and excellent service life.

Product Description

SMC CD85N20-50C-B Pneumatic Piston Rod Cylinder from the CD85 Series features a 50 mm bore size and is double acting, delivering precise and reliable linear motion.

Designed with an aluminium alloy body and both ends tapped mount type, it boasts a compact length of 176mm and a stroke length of 50mm. The cylinder is constructed with corrosion-resistant materials, including stainless steel barrel and piston rod, providing excellent durability and long service life.

This cylinder complies with ISO 6432 standards and incorporates advanced features such as air cushioning for smooth operation, abrasion-resistant seals, and replaceable piston rod seals. The double-swaged anodised aluminium end caps ensure airtight sealing, enhancing performance reliability. A unique dust seal design offers high dust resistance, making it suitable for use in dusty and harsh industrial environments.

The piston rod is of single type with female threading that meets metric standards, facilitating easy installation. The maximum operating temperature rating of 60°C and a maximum piston speed of 1500 mm/s enable versatile usage in various industrial applications including manufacturing, automation, material handling, and assembly operations.

This cylinder features ISO 6432 compliance for standardized quality. Double acting action type for controlled extension and retraction. Air cushioning type to reduce impact and noise. Aluminium alloy body for lightweight yet robust construction.

Special dust seal design for superior protection in dusty environments. Able to sustain a maximum piston speed of 1500 mm/s. Operating temperature range up to 60°C. Includes piston rod locknut and nose-mounting nut for secure installation.

Compact length and stroke dimensions support space-saving setups.

Ideal for industrial, manufacturing, and automation sectors requiring durable and efficient pneumatic actuation solutions. Explore more pneumatic cylinders and actuators to suit your specific application needs on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The stroke length of this pneumatic piston rod cylinder is 50 mm.

The maximum operating temperature for this cylinder is 60°C.

This cylinder complies with ISO 6432 standards, ensuring quality and compatibility.

The length of this pneumatic cylinder is 176 mm.

It features air cushioning, which helps to reduce impact and noise during operation.

The rod type is single, and it has a female piston rod thread that meets metric standards.

The cylinder is constructed from a corrosion-resistant aluminium alloy body and includes a stainless steel barrel and piston rod.

This model features a both ends tapped mount type for installation.

The maximum piston speed for this cylinder is 1500 mm/s.

This cylinder is suitable for various industrial applications including manufacturing, automation, material handling, and assembly operations.

Yes, it includes a piston rod locknut and a nose-mounting nut for secure installation.

It incorporates abrasion-resistant seals and a replaceable piston rod seal for longevity, along with double-swaged anodised aluminium end caps for airtight sealing.
