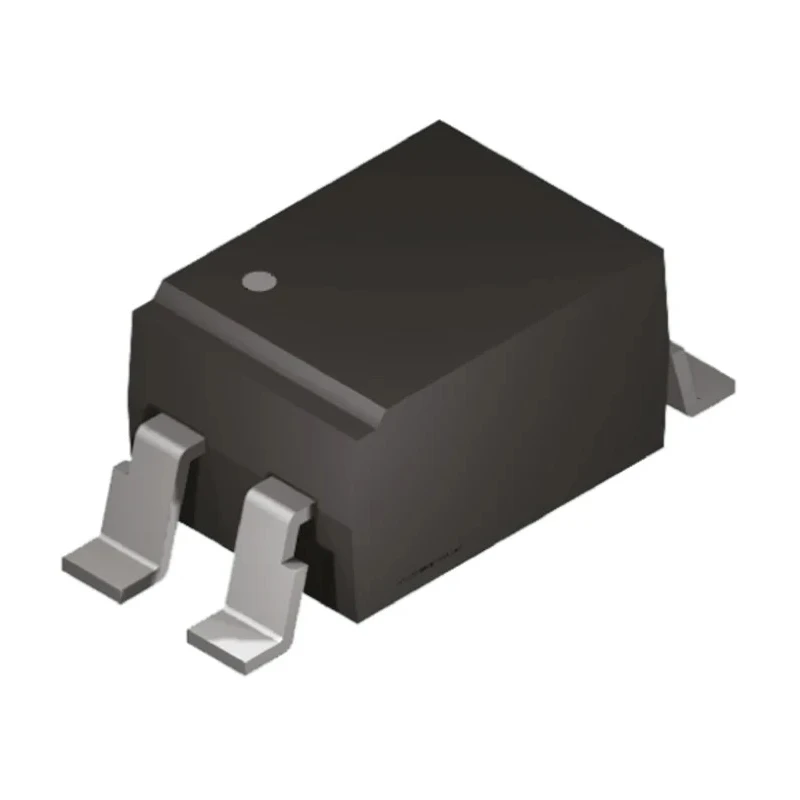

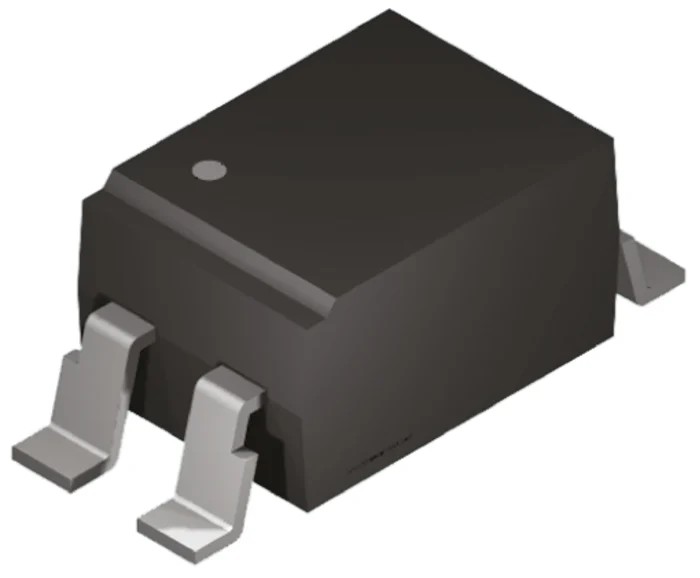

Vishay DC Input Phototransistor Output Optocoupler Surface Mount, 4-Pin SOP TCLT1002
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | TCLT1002 |
| Mount Type | Surface |
| Output type | Phototransistor |
| Series | TCLT |
| Maximum Operating Temperature | 100°C |
| Package Type | SOP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | EN, UL |
| Maximum Forward Voltage | 1.6V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 125% |
| Typical Fall Time | 4.7μs |
| Minimum Current Transfer Ratio | 0.63% |
| Isolation Voltage | 5000V ac |
Key Features
- Designed for DC input with a phototransistor output type.
- Surface mount type suitable for automated PCB assembly.
- High isolation voltage of 5000V AC for safe signal transmission.
- Maximum forward voltage of 1.6V ensures efficient operation.
- Supports a maximum input current of 60mA and single channel operation.
- Operates reliably between -55°C to 100°C ambient temperatures.
- Typical rise and fall times are 3 microseconds and 4.7 microseconds, respectively.
- Complies with EN and UL safety standards for quality assurance.
Product Description
Vishay TCLT1002 is a high-performance DC input optocoupler featuring a phototransistor output. Packaged in a surface mount 4-pin SOP configuration, this device provides excellent electrical isolation essential for reliable industrial and electronic control applications.
The device supports a maximum forward voltage of 1.6V and a maximum input current of 60mA, designed specifically for single-channel operation. It withstands high isolation voltage up to 5000V AC, making it suitable for isolating signals in harsh electrical environments.
Operating temperature ranges from -55°C to 100°C ensure durability under varied environmental conditions. Typical rise and fall times of 3 microseconds and 4.7 microseconds respectively enable fast switching, suitable for precision applications.
This optocoupler complies with European Norms (EN) and Underwriters Laboratories (UL) standards, ensuring it meets international safety and quality requirements.
Vishay TCLT series optocouplers find extensive use in industrial automation, telecommunications, signal isolation, and power supply systems. Their surface mount form factor is optimized for efficient circuit board layout and mass production.
DC input with phototransistor output provides signal isolation and amplification. Single channel, 4-pin SOP package enables compact and reliable installation. High isolation voltage of 5000V AC enhances operator and equipment safety.
Wide operating temperature range supports harsh environmental conditions. Fast switching characteristic suits high-speed electronic circuits. Explore Vishay Optocouplers and related electronic components for your industrial and electronic system projects at EnvMart.
