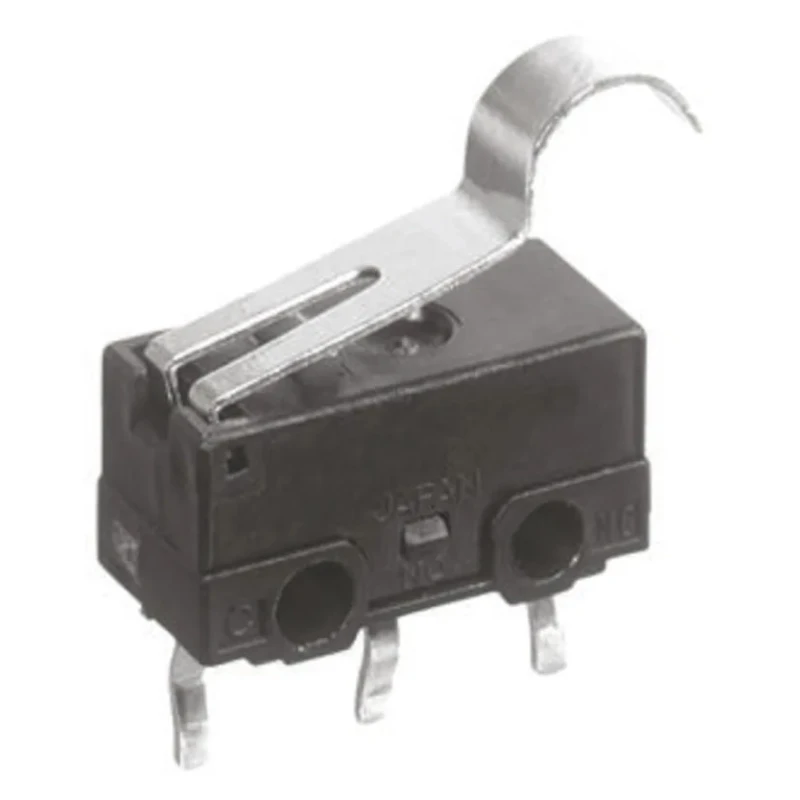

Panasonic Ultra Miniature Simulated Roller Lever Micro Switch Solder Terminal 100mA 125V AC 30V DC AH168461-A
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Length | 12.8mm |
| Model | AH168461-A |
| Depth | 6mm |
| IP Rating | IP40 |
| Width | 5mm |
| Series | AH1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Simulated Roller Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS, UR, CSA |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.26N |
| Mechanical Life | 10Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | Ultra Miniature |
Key Features
- Compact dimensions of 12.8mm length, 6mm depth, and 5mm width enable use in tight spaces.
- Contact configuration is Single Pole Change Over (SPCO) for versatile switching.
- Operating force is low at 0.26N for precise actuation.
- Durable mechanical life rated at 10 million operations for long-term reliability.
- IP40 rated, protecting against solid object ingress but not water.
- Wide operating temperature range from -25°C to 85°C for varied environments.
- Complies with RoHS, UR, and CSA standards ensuring quality and safety compliance.
- Ideal for electronics applications like computer mice, phone chargers, and automotive key position detection.
Product Description
Panasonic AH168461-A ultra miniature micro switch features a simulated roller lever actuator with solder terminal, designed for reliable switching in compact electronic devices.
With dimensions of 12.8mm length, 6mm depth, and 5mm width, this micro switch is suitable for integration into devices where space is critical, such as computer mice, mobile phone charger units, and automotive key position detectors.
The switch operates at low force of 0.26N and is rated for 100mA contact current, 125V AC, and 30V DC voltages, making it versatile for various control circuits requiring Single Pole Change Over (SPCO) contact configuration.
The device offers a solid IP40 ingress protection rating, shielding internal components from small solid objects, and functions reliably across a wide temperature range from -25°C to 85°C.
Its mechanical endurance is robust, rated for 10 million operations, supporting long-term industrial and consumer electronics applications. Certified to meet RoHS environmental requirements and safety standards UL (UR) and CSA, this switch assures compliance with international quality standards.
Compact ultra miniature size for tight spaces. Simulated roller lever actuator for precise switching. Solder terminal facilitating easy installation. Rated for moderate current and voltage with SPCO contact. Wide operating temperature range and IP40 protection.
10 million operation mechanical life for durability. Compliant with RoHS, UL (UR), and CSA standards. Applications in computers, mobile chargers, and automotive key detection. Manufactured in Thailand as part of Panasonic AH1 series.
This Panasonic micro switch is ideal for industrial control, consumer electronics, automotive, and automation systems requiring small form factor switches with reliable operation. Explore more Panasonic Micro Switches and components at EnvMart for precise and durable switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This micro switch has compact dimensions of 12.8mm in length, 6mm in depth, and 5mm in width, making it suitable for tight spaces.
The contact configuration of this model is Single Pole Change Over (SPCO), allowing for versatile switching applications.
The rated operating force for this micro switch is 0.26N, enabling precise actuation.
This micro switch is rated for a mechanical life of 10 million operations, ensuring long-term reliability in applications.
The switch has an IP40 rating, which protects against the ingress of small solid objects but not water.
It operates effectively within a temperature range of -25°C to 85°C, suitable for various environmental conditions.
This model features a simulated roller lever actuator, which allows for reliable switching in compact devices.
The micro switch is rated for a contact current of 100mA, with voltage ratings of 125V AC and 30V DC.
It complies with RoHS, UL (UR), and CSA standards, ensuring quality and safety compliance.
This micro switch features a solder terminal, facilitating easy installation in electronic devices.
It is suitable for various applications, including computer mice, mobile phone chargers, and automotive key position detection.
This product is manufactured in Thailand as part of the Panasonic AH1 series.
