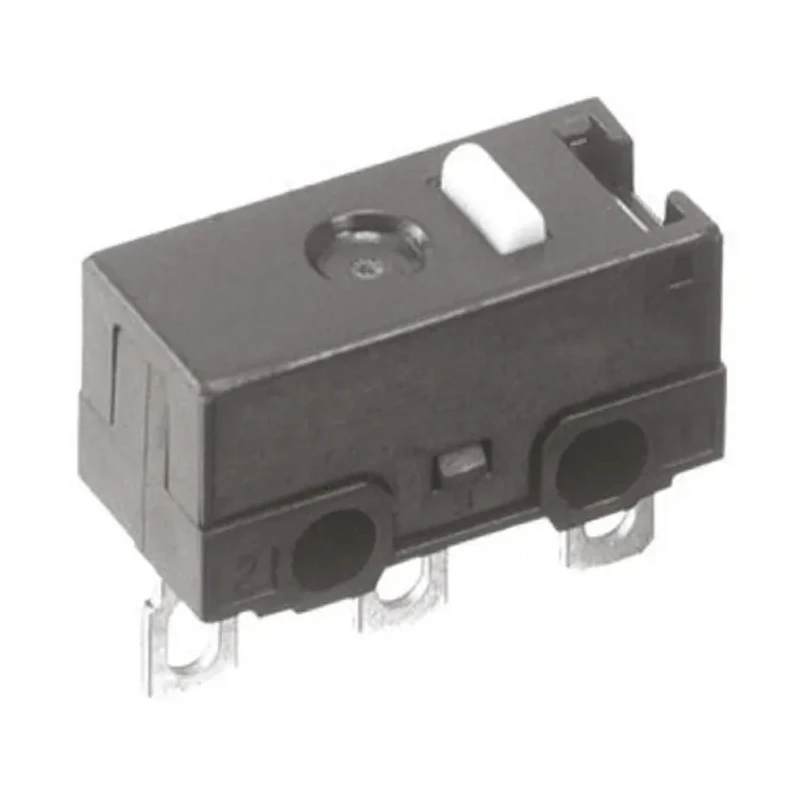

Panasonic Ultra Miniature Pin Plunger Micro Switch, Solder Terminal, 2A, 125 V AC, 30 V DC, SPCO AH16609-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Length | 8.5mm |
| Model | AH16609-A |
| Depth | 6mm |
| Width | 12.8mm |
| Series | AH1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | CSA, RoHS, UR |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 2A |
| Operating Force | 1.47N |
| Mechanical Life | 500000Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | Ultra Miniature |
Key Features
- The switch actuator is a pin plunger type, ensuring precise operation.
- Compact dimensions of 12.8 x 6 x 8.5 mm allow use in small equipment.
- SPCO contact configuration provides single-pole changeover functionality.
- Operating force of 1.47 N enables smooth mechanical actuation.
- Rated mechanical life up to 500,000 operations ensures durability.
- Wide operating temperature range from -25°C to 85°C for versatile applications.
- Certified to CSA, RoHS, and UR standards for compliance and safety.
- Flat solder terminal shape facilitates easy assembly and soldering.
Product Description
Panasonic AH16609-A Ultra Miniature Pin Plunger Micro Switch is designed for high precision performance in compact industrial and electronic applications. Operating at 2A contact current and rated for 125 V AC and 30 V DC, this switch is ideal for switching and detection in confined spaces.
The ultra miniature size (12.8 mm width, 6 mm depth, and 8.5 mm length) allows integration into devices such as computer mice, mobile phone charger units, and automotive key position detectors. The pin plunger actuator type offers precise actuation with an operating force of 1.47N, delivering reliable switching action.
This SPCO (single pole changeover) micro switch features a mechanical life of up to 500,000 operations, ensuring long-term reliability in industrial environments. Its flat solder terminal block is integrally molded to prevent contamination by solder flux during assembly, thereby enhancing durability.
Operating temperature range from -25°C to 85°C enables use in various industrial, commercial, and consumer electronics applications. Compliance with CSA, RoHS, and UL (UR) standards confirms quality and safety standards are met.
The compact dimensions minimize required space in electronic assemblies. Flat solder terminals ensure ease of manufacturing integration. Pin plunger actuator provides accurate detectability and control. Suitable for use in automation, instrumentation, HVAC, and consumer electronics.
Ideal for precise limit switching and positioning detection.
This Panasonic micro switch series AH1 is trusted for superior precision and performance in complex switch applications. Explore more Micro Switches and precision switching solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has compact dimensions of 12.8 mm in width, 6 mm in depth, and 8.5 mm in length, making it suitable for integration into small devices.
The operating force of the Panasonic AH16609-A is 1.47 N, which enables smooth mechanical actuation.
It has a rated mechanical life of up to 500,000 operations, ensuring reliability in various applications.
The switch is rated for 125 V AC and 30 V DC, making it versatile for different electrical applications.
It features a single-pole changeover (SPCO) contact configuration, providing flexible switching options.
This micro switch utilizes a pin plunger actuator type, which ensures precise operation and detectability.
It operates within a wide temperature range from -25°C to 85°C, suitable for various industrial and commercial applications.
The Panasonic AH16609-A is certified to CSA, RoHS, and UR standards, ensuring compliance with safety and quality regulations.
It features a flat solder terminal type, which facilitates easy assembly and soldering during manufacturing.
This model is suitable for automation, instrumentation, HVAC, and consumer electronics, particularly where space is limited.
This model belongs to the AH1 series, known for its precision and performance in complex switch applications.
The contact current rating for this model is 2A, allowing it to handle various switching tasks effectively.
