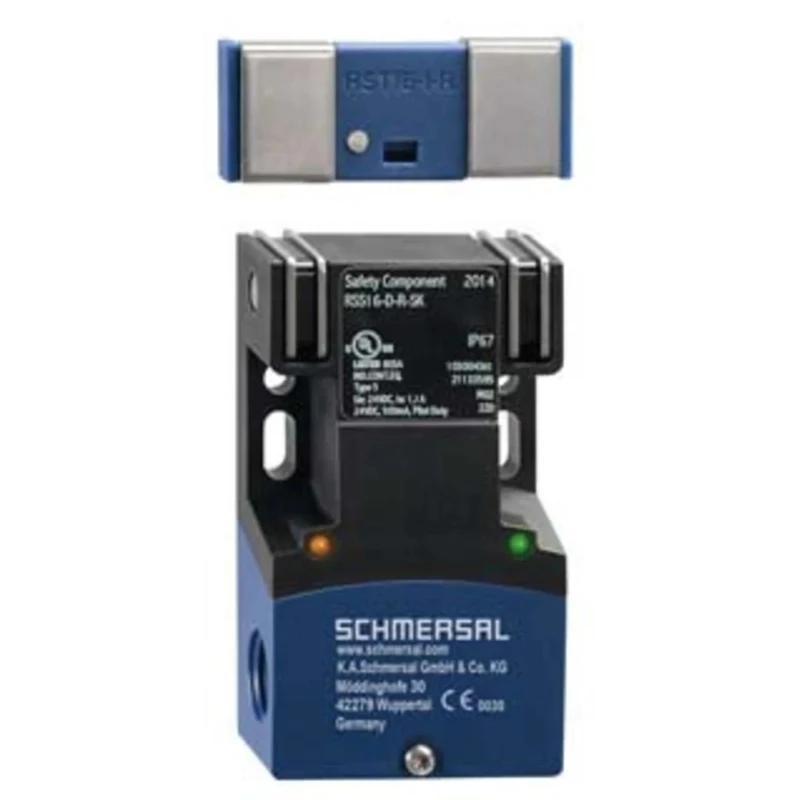

Schmersal RFID Non-Contact Safety Switch Fibreglass Reinforced Thermoplastic Housing 26.4V DC, 2 Safety RSS16-I2-D-R-SK

Free Delivery in India | Lowest Global Shipping Charges

Schmersal RFID Non-Contact Safety Switch Fibreglass Reinforced Thermoplastic Housing 26.4V DC, 2 Safety RSS16-I2-D-R-SK

Name: Schmersal RFID Non-Contact Safety Switch Fibreglass Reinforced Thermoplastic Housing 26.4V DC, 2 Safety RSS16-I2-D-R-SK
Brand: SCHMERSAL
SKU: 213832



Category Safety Switch Brand SCHMERSAL Condition New

Specifications

Country of Origin	Germany
Brand	Schmersal
Length	91mm
Model	RSS16-I2-D-R-SK
Connection Type	Screw
Depth	30mm
IP Rating	IP67, IP65
Width	52mm
Housing Material	Fibreglass Reinforced Thermoplastic
Series	RSS 16
Actuator Type	Flat
Safety Category	3
Switching Current	2100mA
Terminal type	Screw
Sensor Principle	RFID
Body Style	Rectangular
Standards/Approvals	TUV, EAC, CE, cULus
Switching DC Voltage	26.4V dc
Housing Colour	Blue, Black
Safety Contacts	2
Switching Distance	15 mm, 12 (On) mm, 30 (Off) mm

Key Features

Equipped with a fibreglass reinforced thermoplastic housing ensuring durability and self-extinguishing properties.
Features screw terminal connections for secure and reliable installation.
Uses RFID sensor principle providing non-contact switching for reduced mechanical wear.
Rated IP67 and IP65 for dustproof and water resistance up to 1 meter submersion for 30 minutes.
Switching current rated at 2100mA with flat actuator type included.
Operating temperature range of -25°C to +70°C suitable for harsh environments.
LED indicators simplify status monitoring during operation.
Compact dimensions with 91 mm length, 52 mm width, and 30 mm depth facilitate easy integration.

Product Description

Schmersal RSS16-I2-D-R-SK RFID Non-Contact Safety Switch is engineered to help regulate industrial machinery by detecting open guard doors and stopping equipment safely. This switch operates at 26.4V DC and includes 2 safety contacts engineered to enhance operational safety in demanding industrial settings.

The rectangular body is made from a fibreglass reinforced thermoplastic housing, which is highly durable and self-extinguishing, ensuring fire safety. The switch uses RFID technology, eliminating mechanical wear by having no moving parts in the sensing mechanism. Screw type connections guarantee robust and reliable installation.

Designed for a broad operating temperature range from -25°C to +70°C, it maintains performance in harsh environments. Its IP67 and IP65 ratings provide dustproofing and protection against water ingress up to 1 meter for 30 minutes, making it suitable for demanding industrial applications.

The switch incorporates LED indicators for easy status monitoring and features a flat actuator type that is included with the unit. With dimensions of 91 mm length, 52 mm width, and 30 mm depth, this compact switch integrates efficiently into existing setups.

Certified by TUV, EAC, CE, and cULus, Schmersal RSS16-I2-D-R-SK meets international safety and quality standards. It is especially well-suited for use in the petrochemical industry, assembly plants, sliding doors, and laboratory environments.

Durable fibreglass reinforced thermoplastic housing with self-extinguishing properties. RFID technology for non-contact, wear-free sensing. Screw connection type ensures secure installation. High IP67 and IP65 rating for dust and water resistance.

Operating temperature from -25°C to +70°C for harsh conditions. Switching current of 2100mA with included flat actuator. LED indicators for status monitoring. Compact size: 91 mm length, 52 mm width, 30 mm depth. Compliance with TUV, EAC, CE, and cULus standards.

Ideal for petrochemical, manufacturing, sliding doors, and laboratory use. Explore more industrial Safety Switches and accessories at EnvMart to enhance operational safety and efficiency in your facility.
