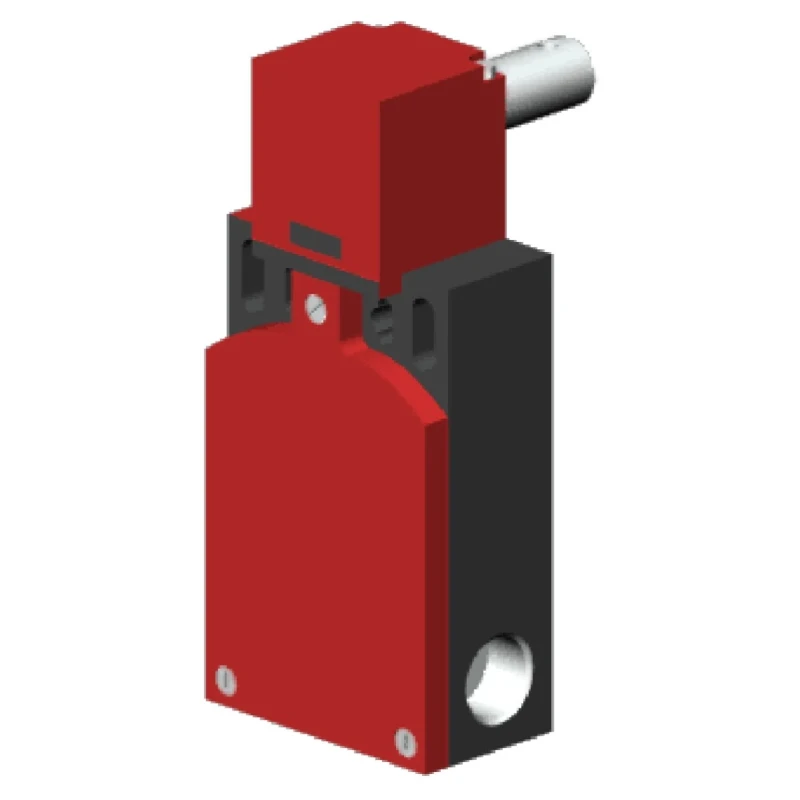

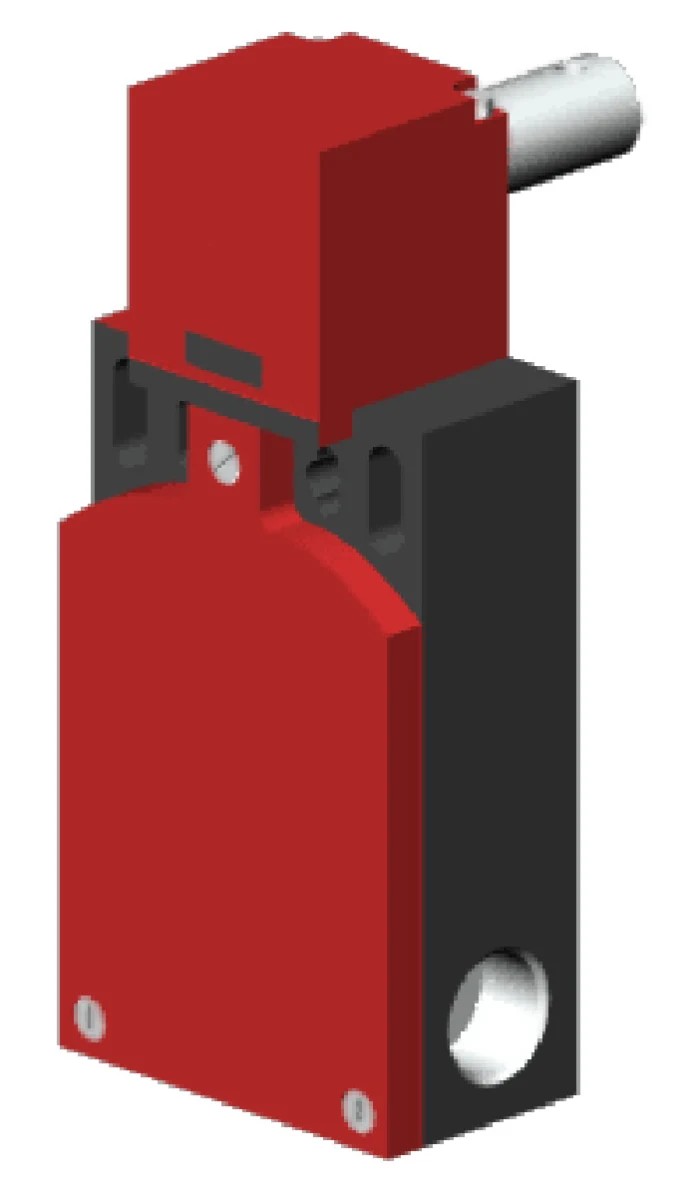

Telemecanique Sensors XCSTR Hinge Switch 3 NC, Polyamide Fibreglass Housing, IP67, 250V DC, 240V AC XCSTR852

Telemecanique Sensors XCSTR852 Hinge Switch 3 NC is engineered to provide safety interlocking for light industrial machines equipped with hinged or rotary protective covers, particularly where there is a small opening radius such as double gate guards. This switch is constructed from polyamide and fibreglass materials that ensure mechanical robustness and durability under industrial conditions.

The device includes three normally closed contacts with slow break safety contacts providing positive opening action. The contacts open when the spindle is displaced more than 5°, enabling safe interruption of machinery operation to protect operators. The ingress protection rating of IP67 means the switch operates reliably even in dusty or wet conditions. Two cable entries with ISO M16 x 1.5 thread accommodate secure cable connections, suitable for cable glands or conduit fittings.

Designed for demanding temperatures from -25°C to 70°C, the hinge switch performs consistently in diverse environments. Its mechanical life exceeds one million cycles, offering dependable performance over extensive usage periods. It complies fully with international standards including EN/IEC 60947-5-4, EN 1088/ISO 14119, CSA C22.2 No. 14, EN/IEC 60204-1, EN/IEC 60947-5-1, and UL 508, ensuring conformance with global safety and reliability requirements.

The 30 mm shaft length and a trigger angle of 5° provide accurate operational control for machine safety interlocking, preventing hazardous situations during machine access or maintenance. Typical industrial use cases include automation, manufacturing lines, and safety systems where access control to moving parts is critical.

The switch features 3 normally closed contacts ensuring reliable safety operations. Constructed with durable polyamide and fibreglass housing providing excellent mechanical strength. Offers ingress protection rated IP67, suitable for harsh industrial environments.

Supports contact voltage of 250 V DC and 240 V AC with contact current of 6 mA. Includes two cable entries sized M16 x 1.5 for secure wiring connections. Designed for temperatures ranging from -25°C to 70°C to meet industrial requirements.

Mechanical life rated at 1,000,000 cycles ensures long-lasting usage. Complies with standards EN/IEC 60947-5-4, ISO 14119, CSA C22.2 No. 14, UL 508, and others. Features a 30 mm shaft length and a trigger angle of 5° for precise actuation.

This high-quality safety interlock switch is ideal for industrial automation and manufacturing applications requiring robust safety switching solutions. Explore more products in the Safety Interlock Switch category on EnvMart to find complementary safety devices from Telemecanique Sensors and other trusted brands.
