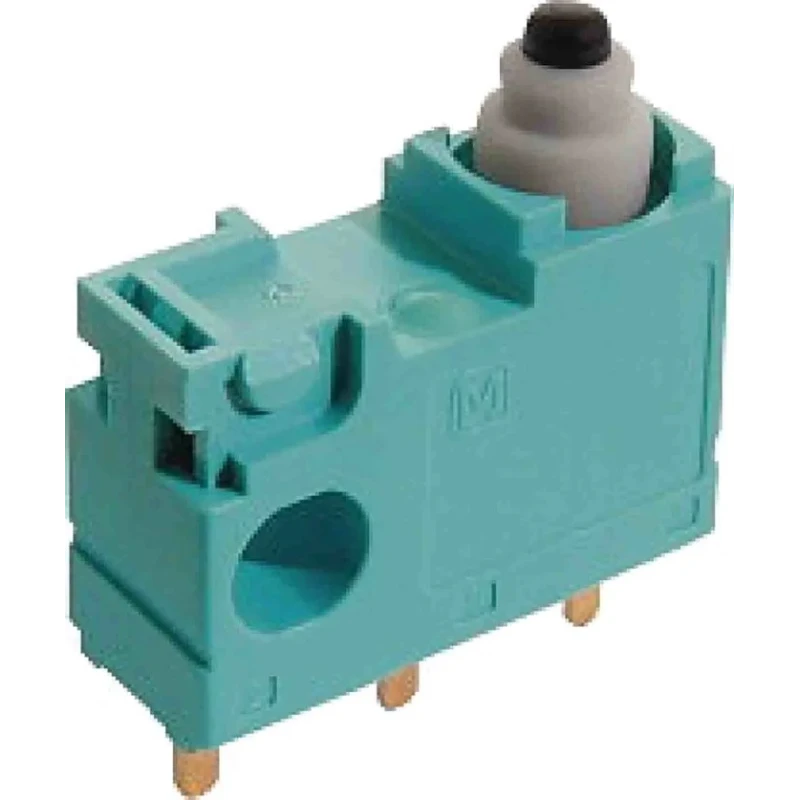

Panasonic Ultra Miniature Pin Plunger Micro Switch PCB Terminal 30 V dc 100mA IP67 ASQ11510
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Model | ASQ11510 |
| IP Rating | IP67 |
| Width | 5.4mm |
| Series | ASQ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 1.5N |
| Microswitch Type | Ultra Miniature |
Key Features
- The switch features a silent operation ideal for industrial and automotive applications.
- Its IP67 rating ensures protection against immersion and dust.
- Equipped with a high overtravel of 2.5mm for enhanced contact force.
- The product is RoHS compliant and made in Japan.
- Operates reliably within temperature range -40°C to 85°C.
- Implements an SPCO contact configuration for switching versatility.
- Offers an operating force of 1.5N for precise actuation.
- Constructed with a pin plunger actuator type for accurate mechanical response.
Product Description
Panasonic ASQ11510 ultra miniature pin plunger micro switch with PCB terminal is designed for highly reliable low-level switching with a contact current of 100mA and contact voltage of 30 V DC. This switch belongs to the ASQ series known for its innovative sliding contacts allowing a notable overtravel of 2.5mm at optimal contact force, simplifying installation and adjustment tasks.
The microswitch features silent operation and an IP67 rating ensuring complete protection against dust ingress and immersion in water, making it suitable for a variety of industrial and automotive environments demanding durability and reliability.
This product operates flawlessly within a broad temperature range from -40°C to 85°C and is RoHS compliant, affirming its environmental safety and adherence to international standards.
Its contact configuration is SPCO (Single Pole Change Over), facilitating versatile switching tasks with a low operating force of 1.5 Newtons, which combined with the pin plunger actuator design provides precise and reliable mechanical response.
The switch has a compact width of 5.4mm, ideal for dense PCB layouts and applications requiring ultra-miniature components. Silent operation ensuring minimal noise emissions during actuation. IP67 rated housing providing excellent protection against water and dust.
Enhanced overtravel using sliding contacts improves contact reliability and switch lifespan. Low operating force enhances device sensitivity and control. Wide operating temperature range supports diverse industrial environments.
Compact size suits applications with restricted space on PCBs. RoHS certified confirming compliance with hazardous substances regulations.
Typical use cases for the Panasonic ASQ11510 micro switch include industrial automation controls, automotive sensor assemblies, and consumer electronics requiring reliable miniature switches.
Explore more Micro Switch solutions and technical components at EnvMart with trusted brands like Panasonic for quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this micro switch is 85°C.
This model features an SPCO (Single Pole Change Over) contact configuration, allowing for versatile switching tasks.
The width of this micro switch is 5.4mm, making it suitable for dense PCB layouts.
The operating force required for actuation is 1.5 Newtons.
The Panasonic ASQ11510 has an IP67 rating, providing protection against dust and immersion in water.
It operates reliably within a temperature range of -40°C to 85°C.
This model uses a pin plunger actuator type for accurate mechanical response.
The contact voltage rating for this micro switch is 30V DC.
The switch has a contact current rating of 100mA.
Yes, this micro switch is RoHS compliant, indicating adherence to hazardous substances regulations.
The country of origin for this micro switch is Japan.
Typical applications include industrial automation controls, automotive sensor assemblies, and consumer electronics requiring reliable miniature switches.
