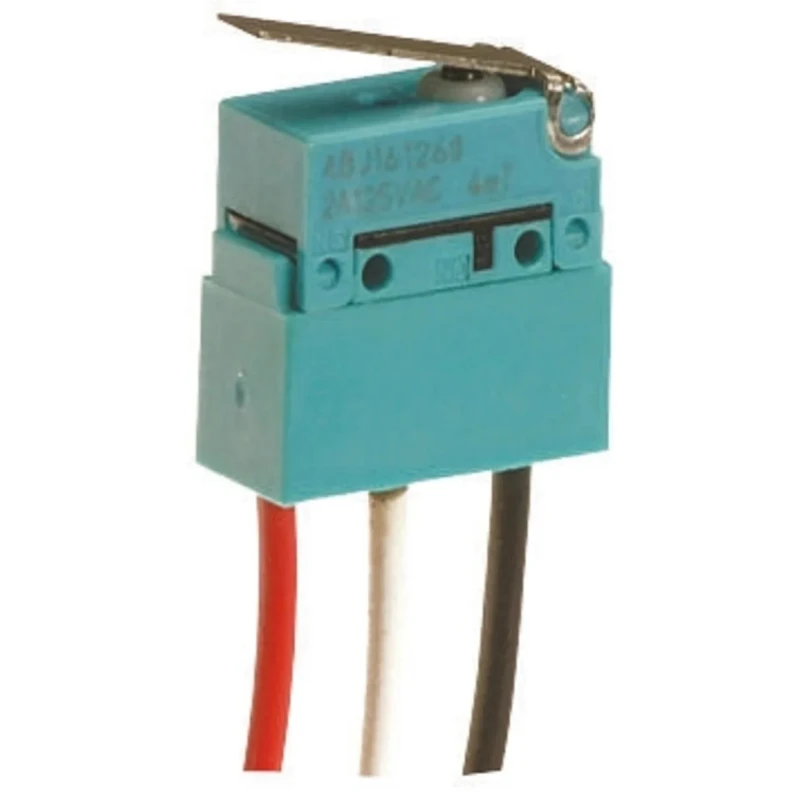

Panasonic Hinge Lever Micro Switch Pre-Wired Terminal 1A 125V ac 30V dc SPCO IP67 ABJ161240
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Length | 12.8mm |
| Model | ABJ161240 |
| Depth | 6mm |
| IP Rating | IP67 |
| Series | ABJ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Pre-Wired |
| Standards/Approvals | UR, RoHS, CSA |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 1A |
| Operating Force | 0.39N |
| Mechanical Life | 10Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | Ultra Miniature |
Key Features
- Compact ultra-miniature design with IP67 rating for dust and water protection.
- Hinge lever actuator ensures precise switching action.
- Pre-wired terminal for easy installation and electrical connection.
- Single pole changeover (SPCO) contact configuration for versatile applications.
- Operates effectively between -40°C and 85°C temperature range.
- Minimum operating force of 0.39 Newtons ensures sensitive actuation.
- Mechanical life of 10 million operations for durability.
- Certified to UR, RoHS, and CSA standards, guaranteeing compliance and safety.
Product Description
Panasonic ABJ161240 is an ultra-miniature hinge lever micro switch featuring a pre-wired terminal designed for reliable control in diverse industrial and automation settings. Rated for 1 Ampere contact current, this micro switch supports 125 V ac and 30 V dc contact voltages, suitable for low power electrical switching requirements.
The compact dimensions of 12.8 mm length and 6 mm depth enable use in tight spaces, while the ultra-miniature form factor suits intricate circuit designs. The hinge lever actuator offers precise mechanical actuation, and the single pole changeover (SPCO) contact configuration provides flexible switching capability.
With an IP67 ingress protection rating, this switch is sealed against dust ingress and water immersion, ideal for harsh industrial environments requiring robust sensor and control components. The device operates reliably from a minimum temperature of -40°C to a maximum of 85°C, accommodating a wide range of ambient conditions.
The switch features a minimum operating force of 0.39 Newtons ensuring sensitive and consistent triggering. It is engineered for a mechanical operational life up to 10 million cycles, delivering long service life and dependable operation in manufacturing, automation, HVAC control, safety equipment, and electronics assembly applications.
Compliant with UL Recognized (UR), RoHS environmental regulations, and CSA standards, the ABJ161240 assures quality and safety in industrial and commercial implementations. Manufactured in Japan, it reflects Panasonic’s commitment to precision and reliability in electrical components.
Compact ultra-miniature design with IP67 rating for dust and water protection. Hinge lever actuator for precise mechanical switching. Pre-wired terminal simplifies installation and connection. SPCO contact configuration supports varied electrical circuits.
Wide operating temperature range from -40°C to 85°C. Low operating force of 0.39N for sensitive actuation. Long mechanical life of 10 million operations. Certified to UR, RoHS, and CSA standards. Manufactured in Japan ensuring high quality.
This Panasonic micro switch is ideal for industrial automation, electrical control systems, HVAC units, manufacturing equipment, and other applications requiring reliable miniature switches with sealed protection.
Explore more Micro Switch and electrical components in the Electronics & Electricals category at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
The minimum operating force required for actuation is 0.39 Newtons.
This micro switch has an IP67 rating, providing protection against dust and water immersion.
It supports contact voltages of 125V ac and 30V dc.
The mechanical life of this model is rated for up to 10 million operations.
It uses a hinge lever actuator for precise mechanical actuation.
The dimensions are 12.8 mm in length and 6 mm in depth.
It is certified to UR, RoHS, and CSA standards.
This micro switch operates effectively between -40°C and 85°C.
The contact configuration is single pole changeover (SPCO).
It features a pre-wired terminal for easy installation and electrical connection.
This micro switch is manufactured in Japan.
