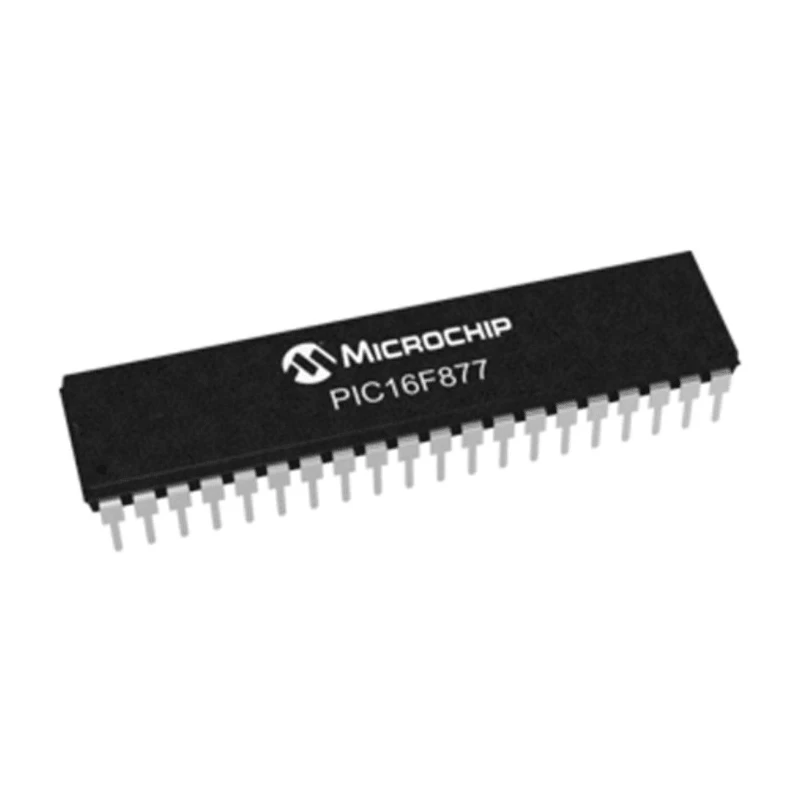

Microchip 8 bit PIC Microcontroller PIC16F877-20I/P, 20 MHz, 14kB FLASH, 40-Pin PDIP PIC16F877-20I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 52.45mm |
| Model | PIC16F877-20I/P |
| Width | 14.22mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 368bit |
| Standards/Approvals | RoHS |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 4V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 33 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- This microcontroller uses Microchip's PIC architecture with an 8-bit data bus width.
- It supports a maximum supply voltage of 5.5V and minimum of 4V, ensuring stable operation.
- Features include 33 programmable I/O pins and 8 channels of 10-bit ADC.
- Includes three timers, power-on reset, brown-out reset, and watchdog timer for reliable control.
- Operates over a temperature range from -40°C to +85°C for industrial applications.
- Designed for through-hole mounting with a 40-pin PDIP package type.
- Program memory is FLASH type with 14kB capacity for flexible code storage.
- Maximum power dissipation is 1W suitable for moderate power applications.
Product Description
Microchip PIC16F877-20I/P is an 8 bit PIC microcontroller featuring a 20 MHz maximum clock speed and 14kB of FLASH program memory installed in a 40-Pin PDIP package. This device belongs to Microchip's PIC16F series that provides robust and efficient 8-bit Microchip PIC architecture for embedded applications.
It operates with a data bus width of 8 bits and offers 33 programmable input/output pins for flexible interfacing. The microcontroller features a maximum supply voltage of 5.5V and a minimum supply voltage of 4V, suitable for stable and reliable performance. It supports operating temperatures from -40°C to +85°C, making it well suited for industrial and harsh environment usage.
Notable peripherals include an 8-channel 10-bit analogue-to-digital converter (ADC), three timers, power-on reset, brown-out reset, power-up timer, oscillator start-up timer, and watchdog timer. In-circuit serial programming (ICSP) and debugging features are integrated for straightforward development.
The device has 368 bits of RAM and uses FLASH memory technology for the program memory. It supports a reduced instruction set computer (RISC) architecture with 35 instructions and an 8-level hardware stack. Maximum power dissipation is rated at 1W, appropriate for medium power embedded applications.
This microcontroller’s form factor is through-hole mounted in a PDIP 40-pin package measuring approximately 52.45mm in length, 14.22mm in width, and 4.06mm in height. It is compliant with RoHS standards for environmental safety.
This PIC16F877-20I/P microcontroller is widely utilized for industrial control systems, embedded automation, and various digital control applications. It offers flexibility for designers with multiple I/O and peripherals integrated on chip, suited for cost-effective embedded solutions.
The combination of moderate speed, memory size, and robust peripherals allows versatile usage in commercial and industrial electronics. Explore Microchip Microcontrollers for reliable embedded system design with a wide range of packages and features on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It features a program memory size of 14 kB, utilizing FLASH memory technology.
This microcontroller has 33 programmable input/output pins for flexible interfacing.
It operates over a temperature range from -40°C to +85°C, suitable for industrial applications.
The dimensions of this microcontroller are approximately 52.45 mm in length, 14.22 mm in width, and 4.06 mm in height.
It is designed in a 40-pin PDIP (Plastic Dual In-line Package) format for through-hole mounting.
The maximum supply voltage is 5.5V, with a minimum supply voltage of 4V.
This model includes three timers for various timing applications.
It supports an 8-channel 10-bit analogue-to-digital converter (ADC).
The maximum power dissipation is rated at 1W, making it suitable for moderate power applications.
It is compliant with RoHS standards for environmental safety.
This microcontroller utilizes a reduced instruction set computer (RISC) architecture with 35 instructions.
