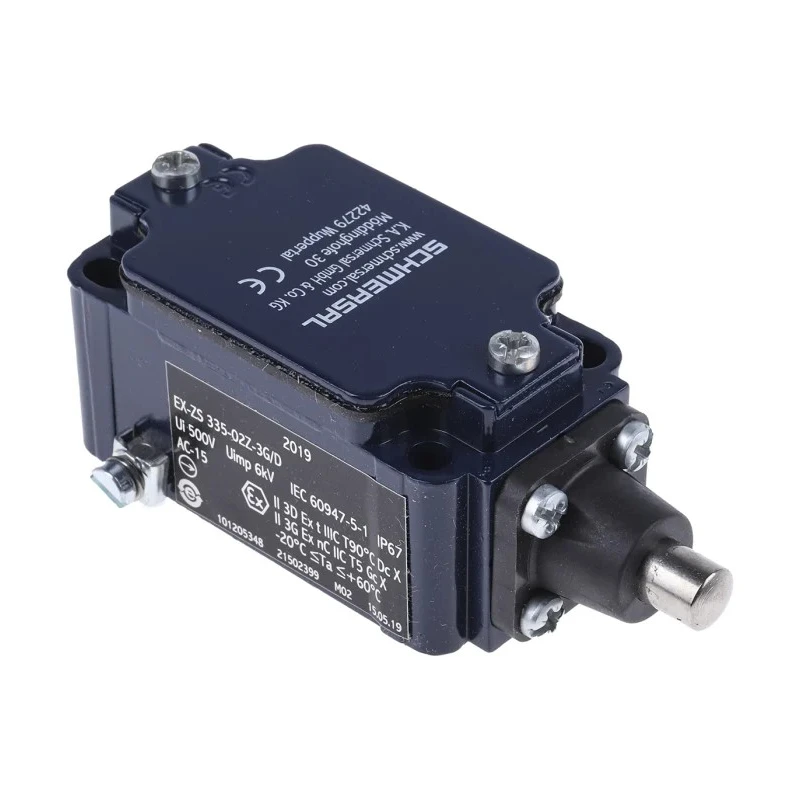

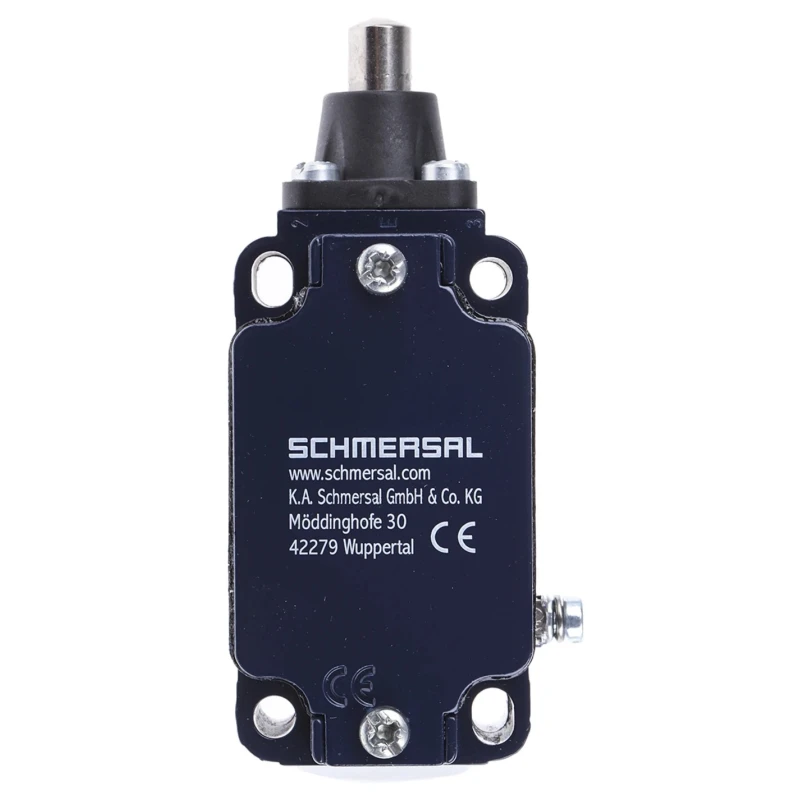

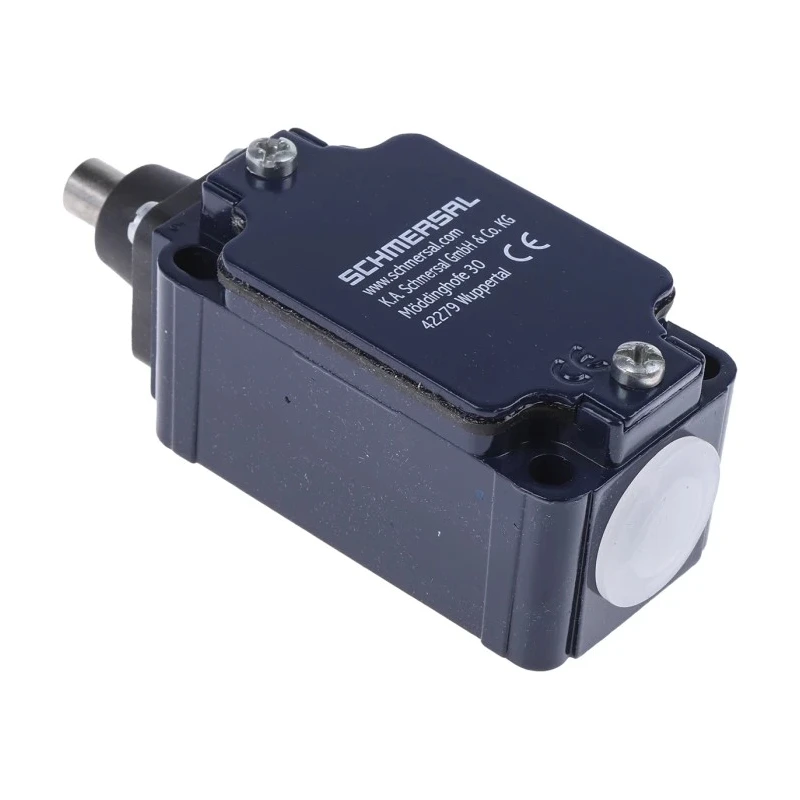

Schmersal Metal Housing Plunger Limit Switch with 1 NO/1 NC Contacts, IP67, 230V AC, 4A Current Rating
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Length | 66.5mm |
| Model | IP67 |
| Depth | 38mm |
| IP Rating | IP67 |
| Width | 40.5mm |
| Housing Material | Metal |
| Series | EX-ZS 335 |
| Maximum Operating Temperature | 60°C |
| Mounting Orientation | Any Position |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -20°C |
| Switching Current | 4A |
| Terminal type | M20 |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | EN, ISO, RoHS |
| Operating Force | 12N |
| Mechanical Life | 30000000Cycles |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 230V ac |
| Conduit Entry | M20 x 1.5 |
Key Features
- The switch offers a durable metal housing for protection in harsh environments.
- Rated IP67 for dust tight and water immersion protection up to 1 meter for 30 minutes.
- Equipped with 1 normally open and 1 normally closed snap-action contacts.
- Operates reliably at 230V AC with a switching current of 4A.
- Compact dimensions facilitate installation in restricted spaces.
- Certified ATEX hazardous area approval suitable for explosive environments.
- Long mechanical life of 30 million cycles ensures durability for industrial use.
- Operates between -20°C and 60°C with an operating force of 12N.
Product Description
Schmersal EX-ZS 335-02Z-3G/D is a robust industrial plunger limit switch featuring a corrosion-resistant metal housing, designed for commercial and industrial automation systems. It operates safely in hazardous environments with ATEX certification and is rated IP67 to resist dust ingress and temporary water immersion.
This limit switch activates electrical circuits through snap-action contacts configured as 1 normally open (NO) and 1 normally closed (NC), allowing flexible control in safety and operational functions. Its operational rating supports switching voltages up to 230V AC and current up to 4A, making it suitable for a wide range of industrial control scenarios.
The compact design with dimensions of 66.5mm length, 40.5mm width, and 38mm depth enables installation in confined spaces. Its mechanical life of 30 million cycles guarantees long-term service life with reduced downtime. Operating temperatures from -20°C to 60°C and an activation force of 12N accommodate varying environmental conditions.
Additional technical details include an M20 x 1.5 conduit entry for secure wiring, snap action contact type for reliable switching, and universal mounting orientation for versatile installation. This switch is engineered for applications including access control systems and automated door operations, enhancing safety by promptly switching off power during malfunctions or obstacles.
This product is made in Germany and complies with EN, ISO, and RoHS standards, assuring quality and environmental safety. The EX-ZS 335 Series plunger limit switch from Schmersal is an essential component for industrial automation, electrical control panels, and machinery safety systems.
The switch offers a durable metal housing for protection in harsh environments. Rated IP67 for dust tight and water immersion protection up to 1 meter for 30 minutes. Equipped with 1 normally open and 1 normally closed snap-action contacts.
Operates reliably at 230V AC with a switching current of 4A. Compact dimensions facilitate installation in restricted spaces. Certified ATEX hazardous area approval suitable for explosive environments. Long mechanical life of 30 million cycles ensures durability for industrial use.
Operates between -20°C and 60°C with an operating force of 12N. M20 conduit entry and terminal supports secure wiring and mounting orientation flexibility. Ideal for applications such as access control and automated door systems.
Browse EnvMart for more Schmersal Limit Switches and related industrial automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably at a maximum switching voltage of 230V AC.
It is rated IP67, providing dust tightness and protection against water immersion up to 1 meter for 30 minutes.
The dimensions are 66.5mm in length, 40.5mm in width, and 38mm in depth.
The switch has a current rating of 4A.
It is equipped with 1 normally open (NO) and 1 normally closed (NC) snap-action contacts.
It operates effectively within a temperature range of -20°C to 60°C.
This unit has a mechanical life of 30 million cycles, ensuring long-term service.
The actuator type is a plunger, which is standard for this model.
It is certified with ATEX approval, making it suitable for use in explosive environments.
The switch features an M20 x 1.5 conduit entry for secure wiring connections.
The required operating force for this model is 12N.
It can be mounted in any position, providing flexibility for installation.
