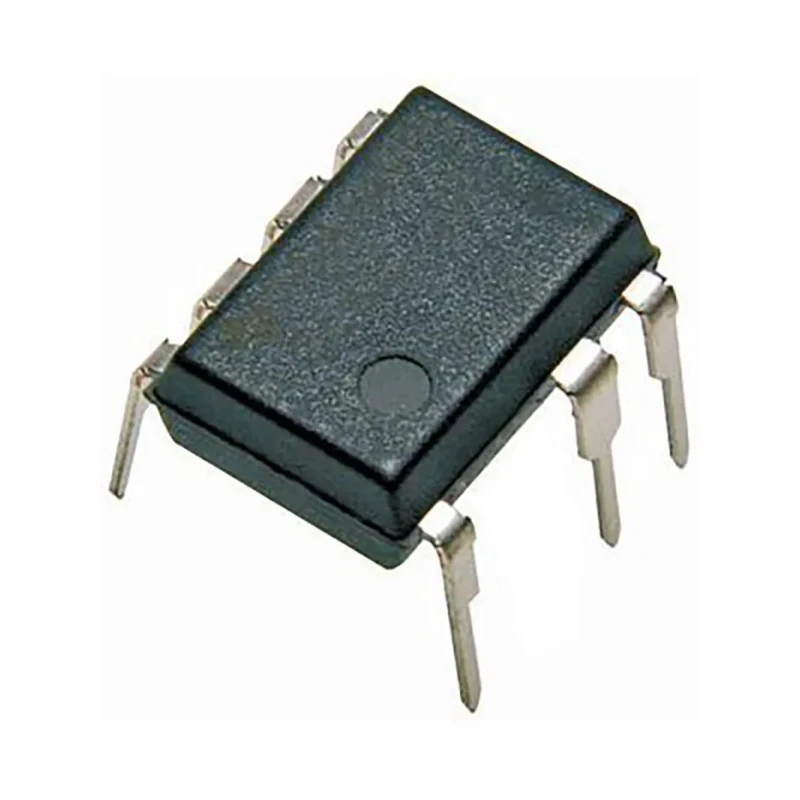

Power Integrations Buck Converter Through Hole 700V Output Voltage 360mA Output Current LNK306PN

Power Integrations LNK306PN is a high-performance Buck Converter featuring a through hole mount with 700V output voltage and 360mA output current. This device is specifically designed to replace linear and capacitor-fed power supplies for loads under 360mA, providing higher energy efficiency and better system performance.

The LNK306PN integrates a 700 V power MOSFET, oscillator, and a simple On/Off control scheme within a monolithic IC. It includes advanced protective features such as cycle-by-cycle current limit, frequency jittering, and thermal shutdown circuitry to ensure reliability under various operating conditions.

It supports multiple power supply topologies including buck, buck-boost, and flyback, making it suitable for a wide range of power conversion applications in industrial and electronic equipment.

The device offers tight tolerances with negligible temperature variation and excellent line and load regulation. It operates efficiently at 75%, minimizing power loss and heat generation.

The unit is housed in a compact DIP-B package with 8 pins and measurements of 9.83 mm length, 6.6 mm depth, and 3.68 mm width, ensuring ease of integration into PCB designs.

Operating temperature ranges from -40°C to 150°C, allowing reliable function in harsh environments. Its maximum input voltage is 265V AC with a minimum of 85V AC, supporting stable power supply conditions.

Integrates a 700 V power MOSFET and oscillator for reliable switching. Supports buck, buck-boost, and flyback topologies for versatile design. Built-in current limit and thermal protection safeguard device operation. Efficient 75% operating efficiency reduces energy loss.

Compact DIP-B package with 8 pins for through hole mounting. Wide operating temperature range from -40°C to 150°C. Tight tolerances with negligible temperature variation. RoHS compliant for environmental safety standards.

Maximum input voltage of 265V AC and minimum of 85V AC.

This Buck Converter is ideal for industrial, electronic components, power supplies, and transformer applications requiring efficient voltage conversion. The device’s compact design and advanced features make it a reliable solution for modern power management.
