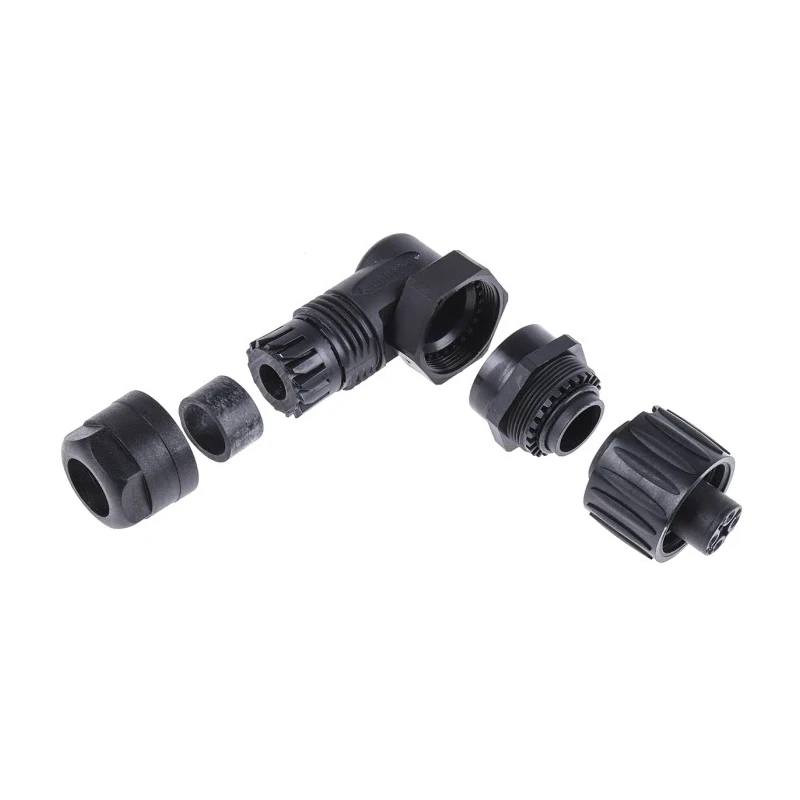

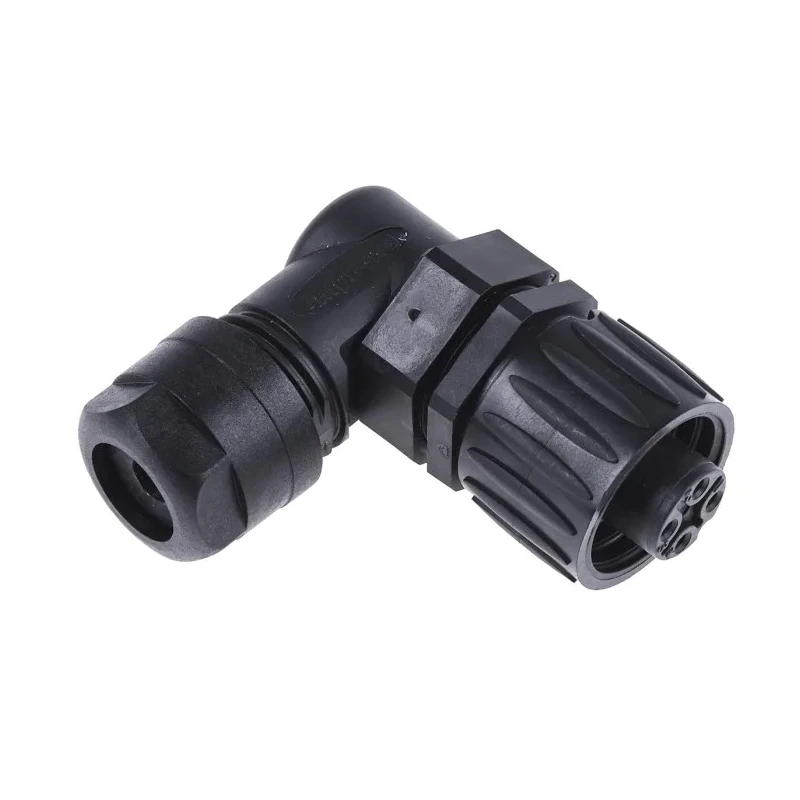

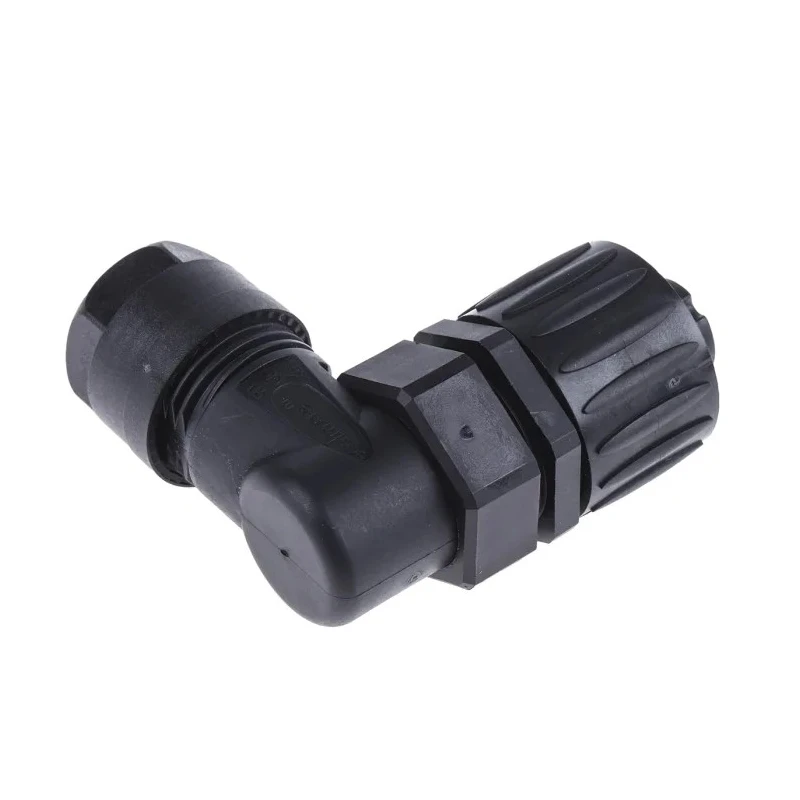

RS PRO Circular Connector 3 Contacts Cable Socket Female IP67 Ecomate M Series C016-20F003-100-12

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Circular Connector 3 Contacts Cable Socket Female IP67 Ecomate M Series C016-20F003-100-12

Name: RS PRO Circular Connector 3 Contacts Cable Socket Female IP67 Ecomate M Series C016-20F003-100-12
Brand: RS PRO
SKU: 213432
Price: 20.01 USD
Availability: InStock



Category Industrial Circular Connector Brand RS PRO Condition New

Specifications

Country of Origin	India
Voltage	400V
Brand	RS PRO
Orientation	Right Angle
Current	16A
Model	C016-20F003-100-12
IP Rating	IP67
Mount Type	Cable
Housing Material	Polymer
Series	Ecomate M
Termination Type	Screw
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-40°C
Pole Format	3+PE
Contact Plating	Silver
Number of Contacts	3
Contact Gender	Female
Shell Size	30 mm
Mating Type	Bayonet
Connector Size	Standard
Plug/Socket	Socket
RS PRO Circular Connector, 4 Contacts, Cable, Plug, Female, IP67Brand	RS PRO

Key Features

Designed for easy and quick assembly with screw down termination.
Robust polymer housing with right angled orientation enhances durability and ergonomic handling.
Equipped with silver plated copper alloy contacts for reliable signal transmission.
Meets industrial standards with IP67 ingress protection and operating temperature range of -40°C to 100°C.
Features bayonet mating type and 30 mm shell size for secure connection.
Includes pre-loaded ground contact and keyed orientation to prevent misconnection.
Suitable for power supply, measurement/control, and various industrial uses.

Product Description

Amphenol Industrial C016-20F003-100-12 is a high-quality industrial circular connector featuring 3 contacts, designed for cable mounting with a socket and female configuration. This standard-sized connector belongs to the Ecomate M series and provides a compact, screw-termination solution suitable for high-demand industrial environments.

The connector supports a voltage rating of 400 V and a current rating of 16 A per contact, ensuring reliable power and signal transmission. Its housing is made from durable polymer material that withstands harsh conditions, while the contacts are copper alloy plated with silver over nickel for enhanced conductivity and corrosion resistance. The right angled body orientation and bayonet mating type provide ease of assembly and mechanical security.

With an IP67 rating, this connector offers excellent protection against dust and water ingress, making it ideal for use in industrial, manufacturing, and power supply applications. The operating temperature range from -40°C to 100°C covers a wide variety of climate conditions. It includes features like keyed orientation and a pre-loaded ground contact that improve installation reliability and safety.

Easy and quick assembly with screw down termination. Ergonomic design with right angled socket body. Bayonet mating for secure connection under industrial vibrations. IP67 rated for dust and water protection. Robust polymer housing ensures long-term durability.

High-quality silver plated contacts for reliable electrical performance. Rated for 400 V and 16 A current per contact. Suitable for industrial power supply, control, and measurement devices.

The Amphenol Industrial Circular Connector provides a balance of robustness and ergonomic design to meet stringent industrial technology needs. It is widely used in power supply technology, measuring and controlling applications, and other demanding industrial environments.
