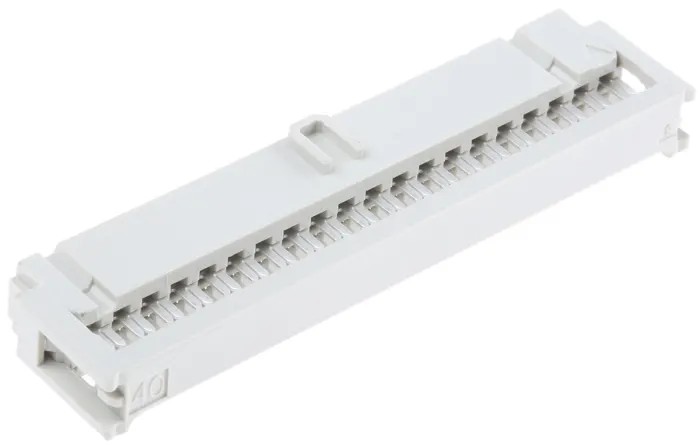

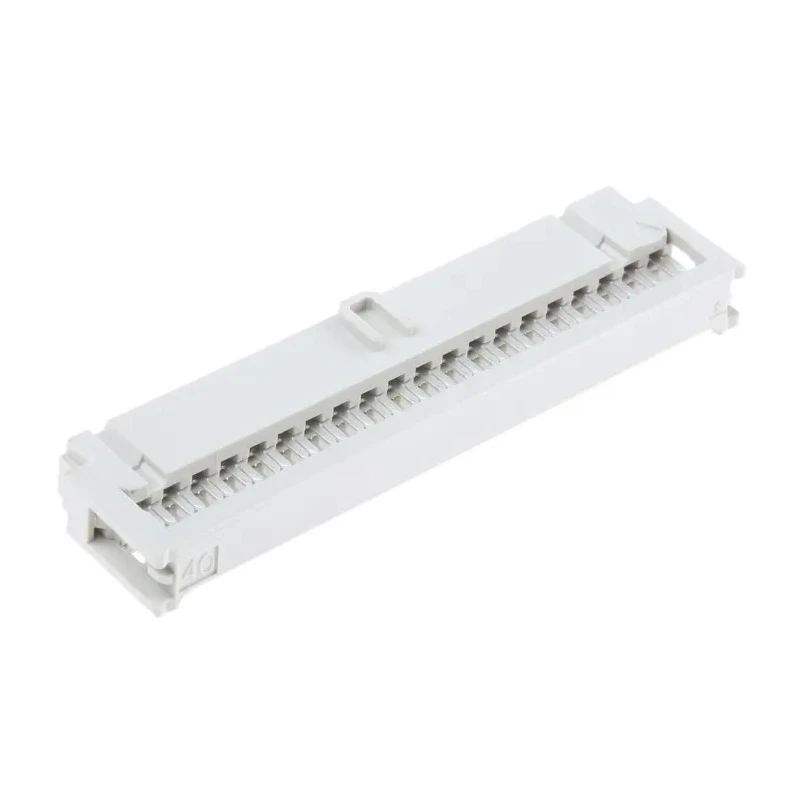

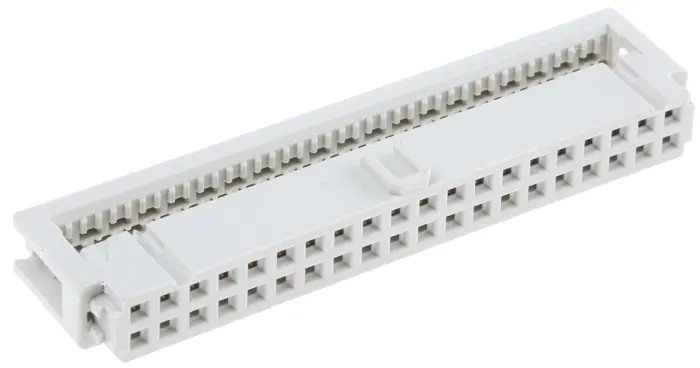

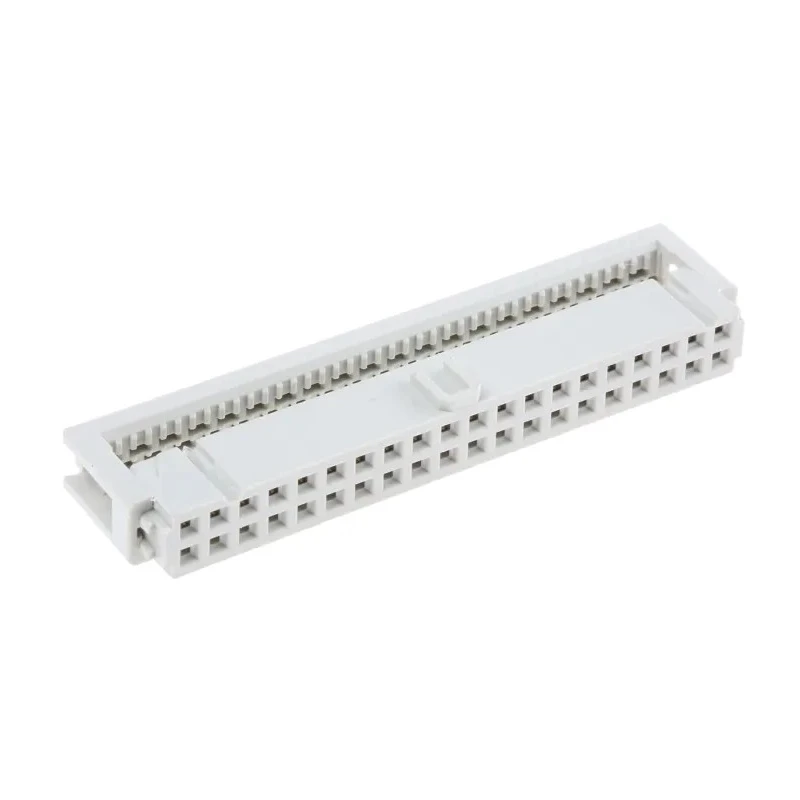

HARTING 40-Way 2 Row Female IDC Connector for Cable, 2.5A, 320V ac, Gold Plating, SEK 18 Series 09185407813

HARTING 09185407813 is a 40-way female IDC connector from the SEK 18 series, designed for cable mounting with right angle orientation and rated for 2.5 amperes and 320V ac. This connector is suitable for demanding industrial and electronic applications requiring reliable signal integrity and durability.

The contacts are made of copper alloy with gold plating to enhance conductivity and resist corrosion, while the housing is made from robust polybutylene terephthalate, ensuring mechanical strength and thermal stability. The connector supports a wide operating temperature range from -55°C to 125°C, making it ideal for use in harsh environmental conditions such as industrial automation, telecommunications, and electronic manufacturing.

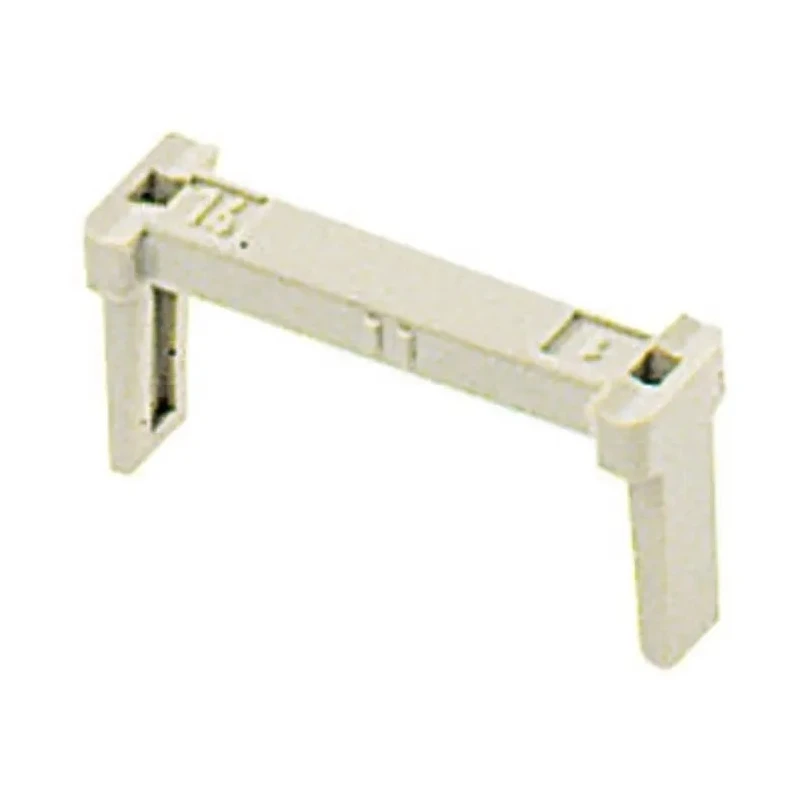

This IDC connector features a 2-row configuration with 2.54mm pitch for efficient space utilization on wiring harnesses. The integrated strain relief and right angle design simplify cable management and improve connection longevity. It employs insulation displacement contact technology to facilitate rapid and secure connections without the need for soldering, which is advantageous in high-volume production environments.

Conforming to IEC 60 603-13 standards, the SEK 18 series IDC Connectors are engineered to meet stringent quality and performance criteria, ensuring compatibility with a broad range of industrial and electronic systems. This part number 09185407813 corresponds to a 40-contact configuration with an open end cover and strain relief, representing a class 3 performance level.

Features 40 contacts arranged in 2 rows for compact installation. Supports a voltage rating of 320V ac for diverse applications. Gold-plated contacts ensure excellent conductivity and corrosion resistance. Constructed with copper alloy contacts and polybutylene terephthalate housing.

Rated operating temperature range from -55°C to 125°C for harsh environments. Includes strain relief and right angle orientation for cable mounting. Utilizes IDC termination technology for efficient cable assembly. Complies with IEC 60 603-13 standards for reliable performance.

This connector is widely used in industrial, electronic manufacturing, telecommunications, and automation systems requiring high-quality, reliable connections. Browse the Electronics & Electricals category for more HARTING connectors and related components on EnvMart.
