Phoenix Contact PT 2.5-MT Series Knife Disconnect Terminal Block Grey, 0.14mm² to 4 mm², 1-Level, Push-in, 400V, 20A 3210156

Free Delivery in India | Lowest Global Shipping Charges

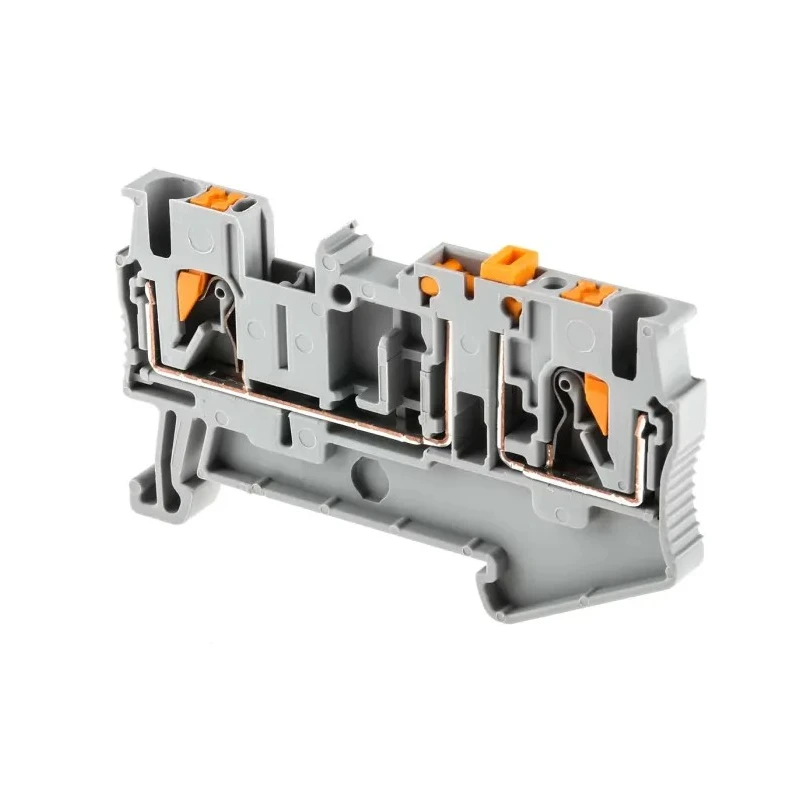

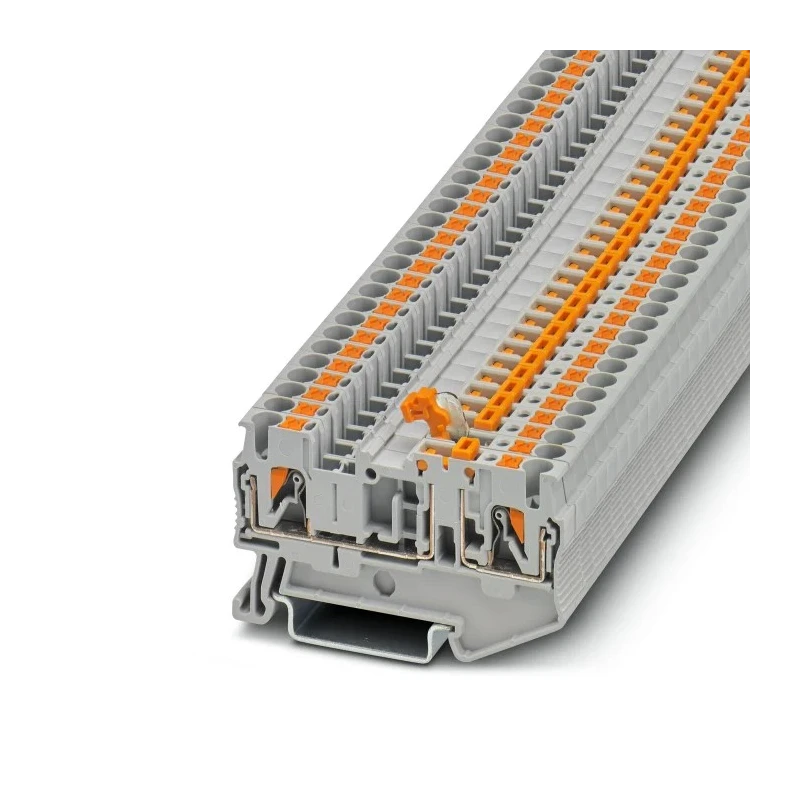

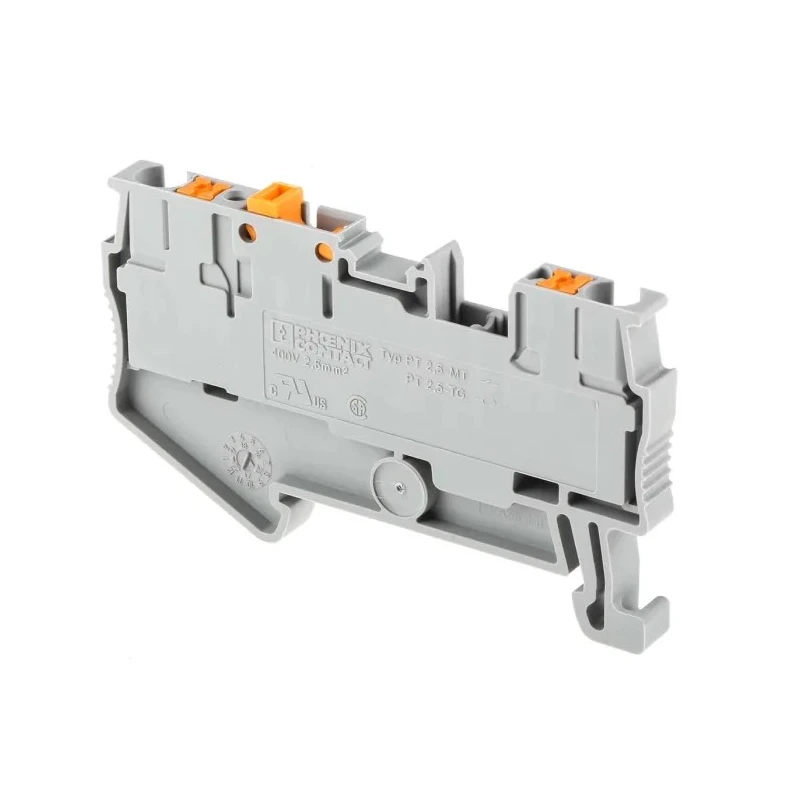

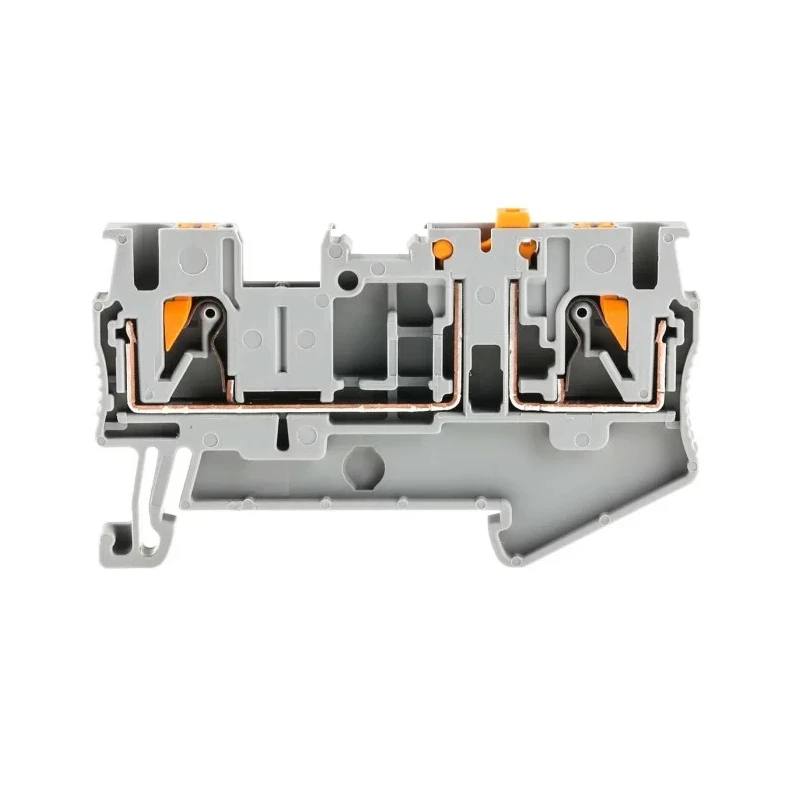

Phoenix Contact PT 2.5-MT Series Knife Disconnect Terminal Block Grey, 0.14mm² to 4 mm², 1-Level, Push-in, 400V, 20A 3210156

Name: Phoenix Contact PT 2.5-MT Series Knife Disconnect Terminal Block Grey, 0.14mm² to 4 mm², 1-Level, Push-in, 400V, 20A 3210156
Brand: PHOENIX CONTACT
SKU: 212166
Price: 5.49 USD
Availability: InStock



Category DIN Rail Terminal Blocks Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Poland
Voltage	400V
Brand	Phoenix Contact
Colour	Grey
Model	3210156
Series	PT 2.5-MT
Termination Type	Push-in
Maximum Operating Temperature	105°C
Number of Levels	1
Number of Positions	1
Sub Type	Disconnect
Minimum Operating Temperature	-60°C
Standards/Approvals	EAC
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	12AWG
Cable CSA	0.14, 4mm²
Terminal Block Current	20A

Key Features

The grey PT 2.5-MT series supports wire sizes from 0.14mm² to 4 mm² with a 1-level design.
Features push-in termination type for quick and secure conductor connections.
Compact width of 5.2mm ideal for space-saving DIN rail mounting.
Operates safely within -60°C to +105°C temperature range for versatile applications.
Equipped with a double-function shaft and an additional test contact for current monitoring.
Meets EN 45545-2 fire-protection standard for rail vehicle safety and UL 94-V0 flammability rating.
Suitable for automation, instrumentation, transport infrastructure, and industrial control panels.

Product Description

Phoenix Contact 3210156 is a PT 2.5-MT series Knife Disconnect Terminal Block that supports grey-coloured, push-in wire connections with a current rating of 20A and voltage rating of 400V. This 1-level terminal block accommodates conductors from 0.14mm² to 4 mm², enabling efficient installation within limited panel spaces due to its narrow 5.2mm width.

This terminal block is engineered with a double-function shaft for easy circuit opening without dismantling and includes an additional test contact that facilitates ongoing current measurement, enhancing system diagnostics.

Constructed with a robust polyamide (PA) housing, it provides excellent insulation and durability operating within a wide temperature range from -60°C to +105°C. The unit also complies with EN 45545-2 fire protection standards for use in rail vehicles and carries a UL 94-V0 vertical burn rating.

The push-in termination design allows secure and convenient connections of both rigid and flexible wires using a central lever mechanism. Installation is simplified by effortless clipping onto a DIN rail, helping save time on electrical panel assembly.

The PT 2.5-MT series knife disconnect terminal block enhances safety and maintenance through tool-less operation. Its space-efficient design supports modern compact control cabinets and industrial automation equipment. Suitable for use in automation, instrumentation, water treatment, manufacturing, railway and transportation electrification systems.

Features flame-retardant materials ensuring compliance with critical industrial safety standards. The added test contact supports precise current measurement for reliable system monitoring.

This product is sourced from Poland and is ideal for industrial, commercial electrical installations requiring dependable disconnection functionality integrated into modular DIN rail setups. Add this Phoenix Contact terminal block to your electrical components inventory for reliable performance and ease of installation.
