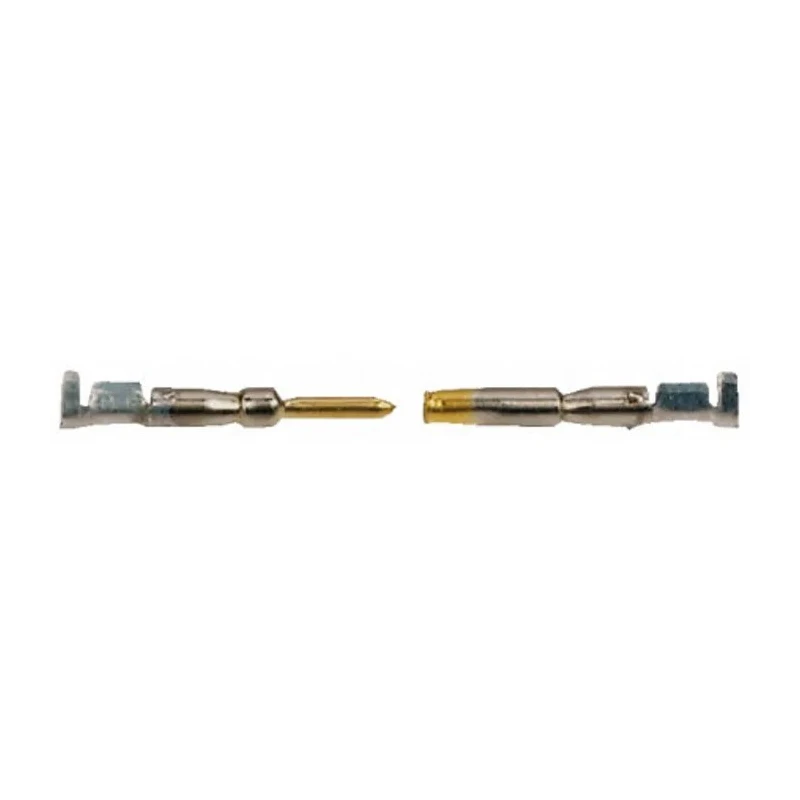

Souriau Sunbank by Eaton Male Crimp Circular Connector Contact, Contact Size 20, Wire Size 18 and 24 AWG, Gold CM10PC10MQ

Souriau Sunbank by Eaton CM10PC10MQ Male Crimp Circular Connector Contact is engineered for robust electrical connections suitable for a wide array of industrial and electronic applications. This component connects electrical circuits with signal contacts designed to handle currents up to 7A at voltages of 750V. It is part of the CL series optimized for the Clipper Series Connectors, known for durable and flexible deployments in challenging environments.

The contact features a size 20 contact diameter and a length of 20mm, made of copper alloy for superior mechanical strength. The termination type is crimp, providing a secure and reliable wire connection for 18 AWG and 24 AWG wire sizes. The contact plating is gold over nickel which enhances electrical conductivity and provides robust corrosion resistance.

Operating temperatures range from -40°C minimum to a maximum of 125°C, ensuring stable performance across temperature variations. The maximum contact resistance of 10 milliohms guarantees efficient signal transmission with minimal loss. This product is manufactured in France, reflecting high-quality standards.

It integrates seamlessly with the Clipper Series Connectors, known for their IP67 sealing properties offering protection against dust and moisture ingress. The design includes scoop-proof contacts that enable safe mating and unmating without damage, even in blind mate scenarios. This contact is ideal for use in electronic equipment, industrial machinery, automotive, aerospace, and other sectors requiring dependable circular connector solutions.

For tool compatibility, use crimp tools stock no. 194-2264 for 1.0 and 1.6mm contacts or Universal Crimp Tool Frame stock no. 848-391 with Die Set stock no. 158-8955 for 1.6mm contacts only. These contacts suit both standard density (1.6 mm diameter) and high density (1.0 mm diameter) connector assemblies. Unused cavities can be filled with blanking pins for efficient electrical isolation.

The contact is gold plated over nickel ensuring excellent conductivity and corrosion resistance. It supports a current rating of 7 amperes and a voltage rating of 750 volts. The contact size is 20 with a length of 20 millimeters for standard density connectors.

Terminated by crimping, it is constructed from a durable copper alloy material. Operates reliably between temperatures of -40° to 125°C. Designed for signal contact type applications with maximum contact resistance of 10 milliohms.

Compatible with clipper series connectors offering IP67 sealing in connector assembly.
