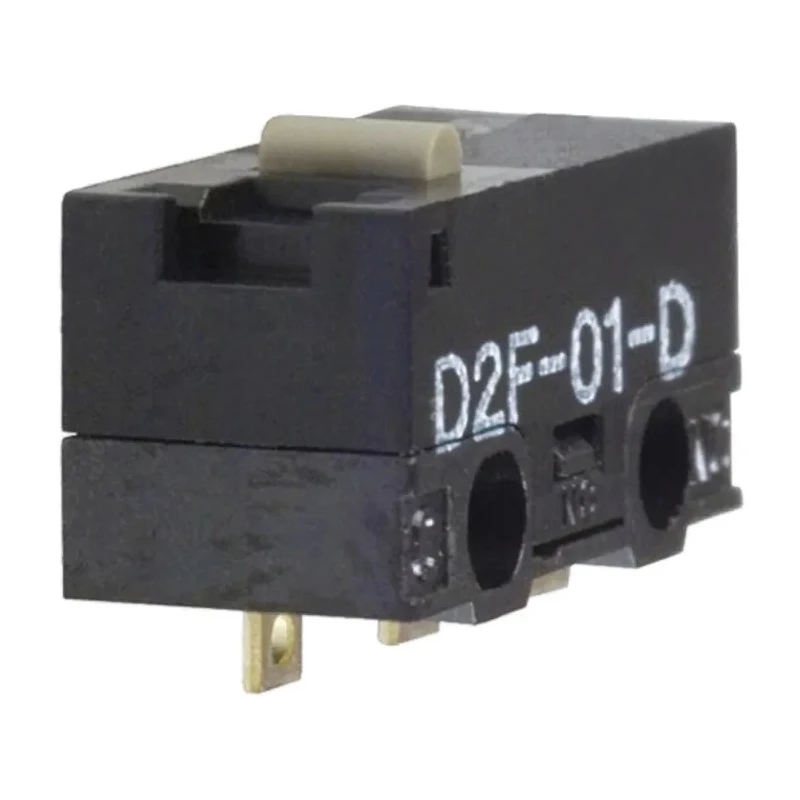

Omron Ultra Subminiature Pin Plunger Micro Switch, Solder Terminal, 100mA, 30 V dc, SPDT, IP40 D2F-01-D
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Length | 12.8mm |
| Model | D2F-01-D |
| IP Rating | IP40 |
| Approvals | UL & CSA |
| Series | D2F |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Contact Rating | 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 1.47N |
| Mechanical Life | 1000000Operations |
| Microswitch Type | Ultra Subminiature |
Key Features
- The micro switch has a pin plunger actuator type for precise operation.
- Solder terminals ensure secure and reliable electrical connections.
- The switch current capability is 100mA, suitable for low-power electronic applications.
- Contact configuration is SPDT for versatile switching.
- IP40 rating provides protection against solid objects larger than 1mm.
- Operating force is 1.47 Newtons for responsive actuation.
- Temperature operating range from -25°C to 65°C supports varied environments.
- Ultra subminiature size with a length of 12.8mm suits compact device integration.
Product Description
Omron D2F-01-D ultra subminiature pin plunger micro switch features a solder terminal and is rated for a switch current of 100mA at 30 V dc. Designed for precise and reliable snap-action switching, this micro switch offers a single pole double throw (SPDT) contact configuration.
Its compact length of 12.8mm makes it ideal for integration in home appliances, audio, communication equipment, and various industrial automation devices requiring ultra subminiature components.
The micro switch operates under a force of 1.47 Newtons and withstands temperatures from -25°C to 65°C, accommodating a wide range of environmental conditions. The device has a durable mechanical life, rated for one million operations, and carries IP40 ingress protection against solid objects larger than 1 millimeter.
It is RoHS compliant, ensuring environmental safety, and holds UL and CSA approvals that confirm compliance with international safety standards. This product is manufactured in Japan, reflecting high manufacturing standards and quality control.
The micro switch has a pin plunger actuator type for precise operation. Solder terminals ensure secure and reliable electrical connections. The switch current capability is 100mA, suitable for low-power electronic applications.
Contact configuration is SPDT for versatile switching. IP40 rating provides protection against solid objects larger than 1mm. Operating force is 1.47 Newtons for responsive actuation. Temperature operating range from -25°C to 65°C supports varied environments.
Ultra subminiature size with a length of 12.8mm suits compact device integration. Mechanical life rated at 1,000,000 operations assures durability. RoHS compliant, meeting environmental safety standards. Approvals include UL and CSA for quality and safety assurance.
Manufactured in Japan, ensuring high product quality.
Omron Micro Switches are widely used in electronics, electrical, automation, and manufacturing industries for applications requiring precise switching with long service life. Explore the full range of Omron micro switch products on EnvMart for reliable industrial and commercial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 65°C.
This micro switch features a single pole double throw (SPDT) contact configuration.
The switch can handle a current rating of 100mA at 30V dc.
The operating force for this micro switch is 1.47 Newtons.
It uses a pin plunger actuator type for precise operation.
The length of this micro switch is 12.8mm, making it ultra subminiature in size.
This micro switch has an IP40 rating, providing protection against solid objects larger than 1mm.
The mechanical life of this micro switch is rated for one million operations.
The minimum operating temperature is -25°C, while the maximum is 65°C.
It features solder terminals for secure and reliable electrical connections.
This model holds UL and CSA approvals, confirming compliance with international safety standards.
Yes, this micro switch is RoHS compliant, ensuring it meets environmental safety standards.
