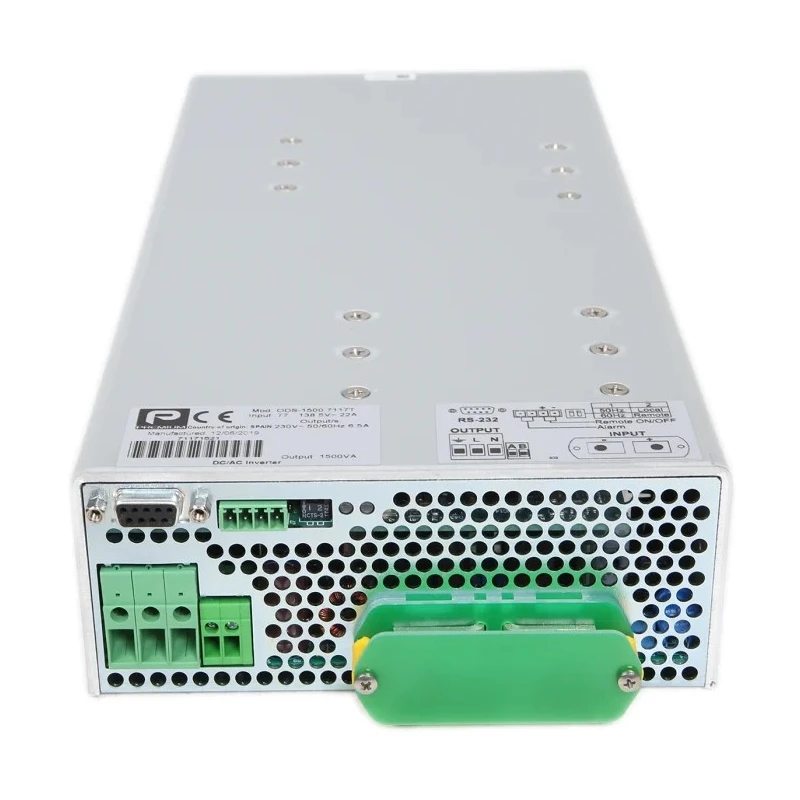

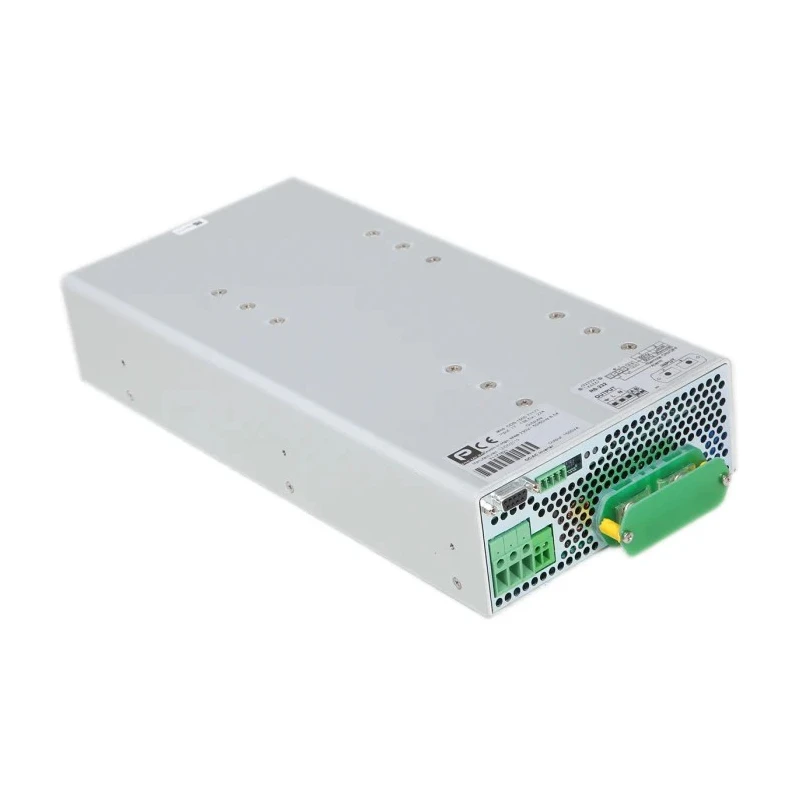

RS PRO Chassis 1500W DC AC Inverter 110V DC Input 230V AC Output 6.5A Chassis Mount 144-7711

RS PRO 144-7711 is a high-quality chassis-mounted DC AC inverter designed to convert 110V DC input voltage into 230V AC pure sine wave output with continuous power rating of 1500W and output current of 6.5A. It is suitable for industrial and commercial applications requiring stable and reliable AC power from DC sources.

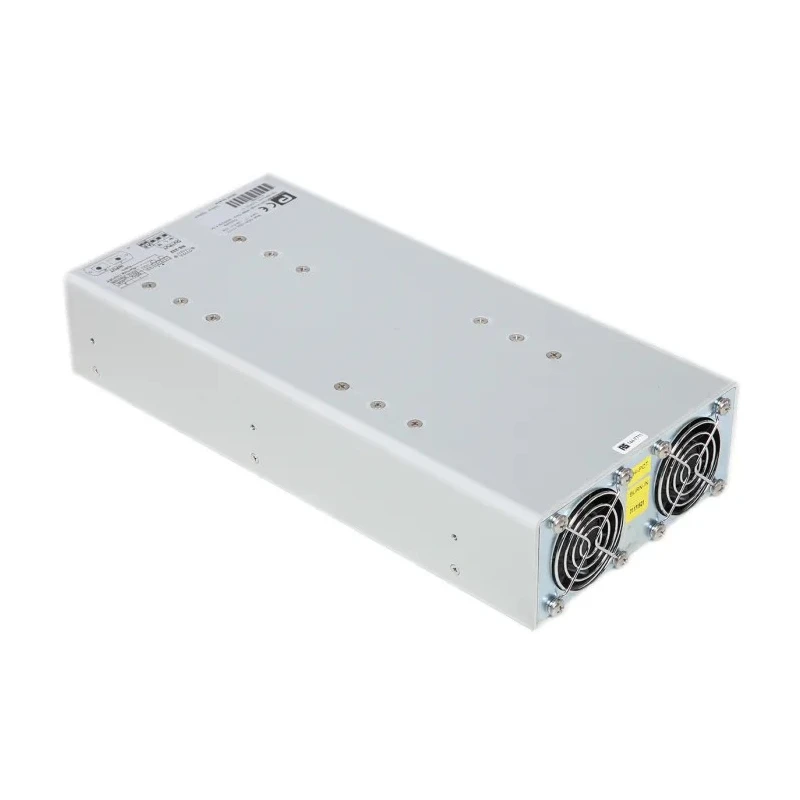

This inverter is equipped with a loading controlled cooling fan that manages temperature efficiently, allowing operation from -25°C up to +55°C at full load. The chassis mount format enables easy installation in equipment racks or cabinets. With selectable output frequency options of 50 Hz or 60 Hz, it offers flexibility for different regional power standards.

Built-in safety features include current limiting, overload protection, polarity protection, and power protection. These safeguards help prevent damage caused by short circuits, improper connections, or excessive load, ensuring durability and operator safety. The inverter also features a high isolation rating of 3,000 Vrms between input and output, reducing electrical interference and enhancing safety.

Compliant with multiple rigorous international standards including EN 50121-3-2 (railway emissions), EN 45545-2 (fire safety for railway equipment), EN 50155 (railway electronic equipment), and EN 62368-1 (safety of IT equipment), this inverter is suited for demanding industrial environments such as railway systems, heavy engineering, and manufacturing facilities.

The compact dimensions of 359.5 mm (length) x 160 mm (depth) x 64.5 mm (width) and a weight of 3.8 kg make the device manageable for integration into existing systems. Its RS232 communication port allows easy monitoring and configuration, enhancing operational control.

RS PRO maintains high quality and rigorous testing for their products, ensuring reliability and performance. This inverter is ideal for various industrial, commercial, and heavy-duty power conversion needs where stable AC output from DC input is required.

Equipped with mean time between failures (MTBF) of 130,000 hours for reliable long-term operation. Chassis mount type with loading controlled cooling fan for temperature management. Output current rated at 6.5 A with selectable output frequency of 50 or 60 Hz.

Multiple protection features including current limit, overload, polarity, and power protection ensure device safety. Compatible with input voltage range of 77 to 138 V DC for flexible usage. Compliant with international standards EN 50121-3-2, EN 45545-2, EN 50155, and others for safety and electromagnetic immunity.

Operating temperature range from -25°C to +55°C at full load, enabling use in varied environmental conditions. Compact dimensions of 359.5 mm length, 160 mm depth, and 64.5 mm width for easy integration in chassis setups.

High input/output isolation of 3,000 Vrms enhances user safety and equipment protection. Explore more high-quality power inverters and DC AC converters in the Power Inverters category at EnvMart for reliable industrial power solutions.
