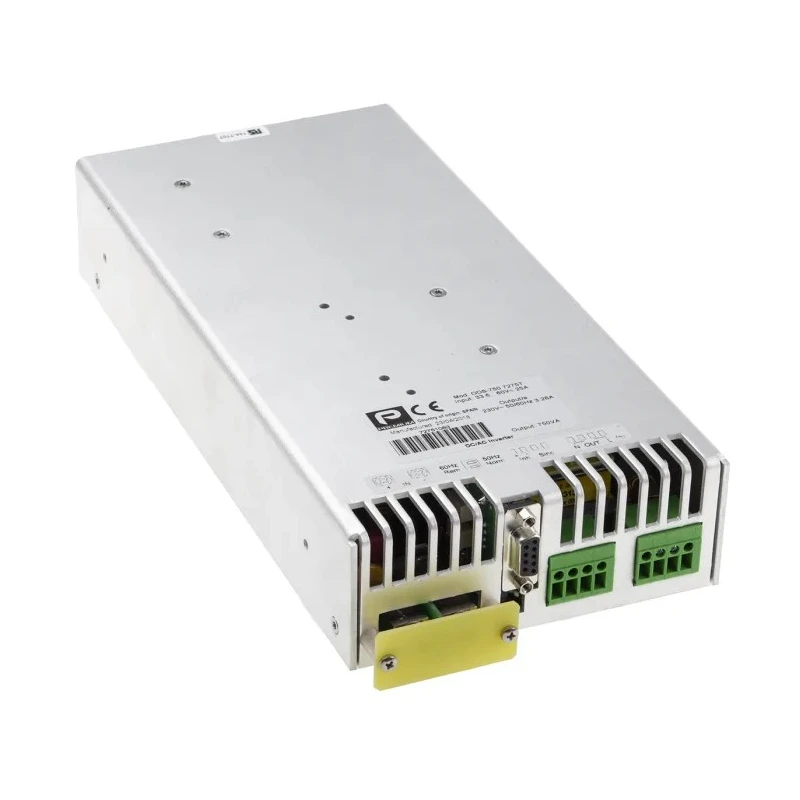

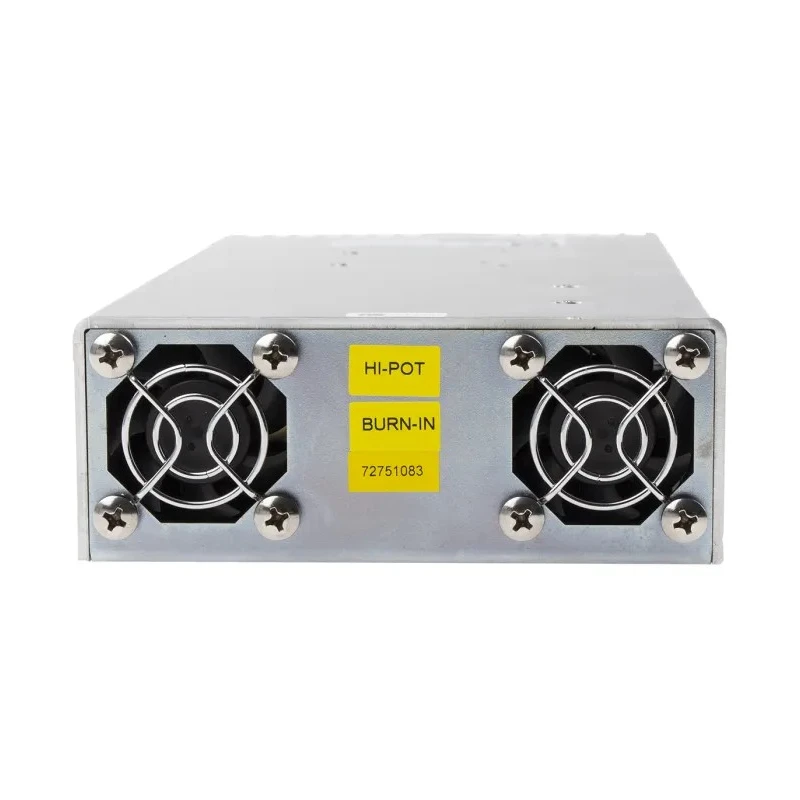

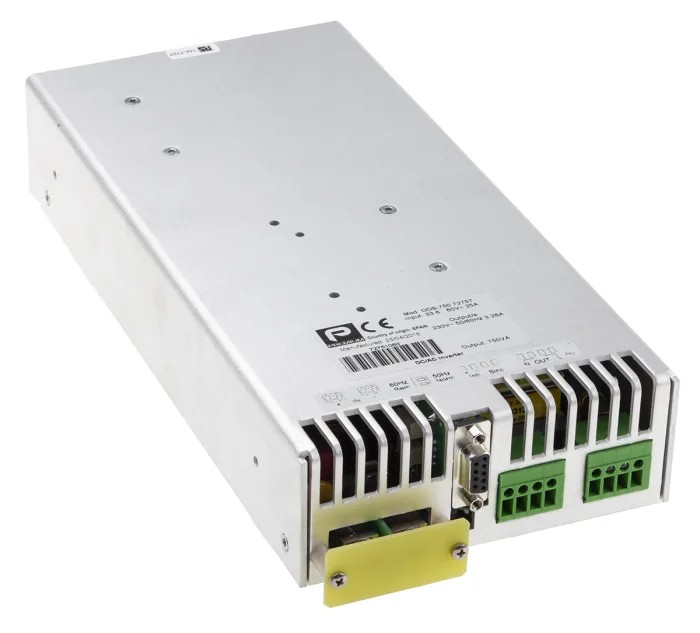

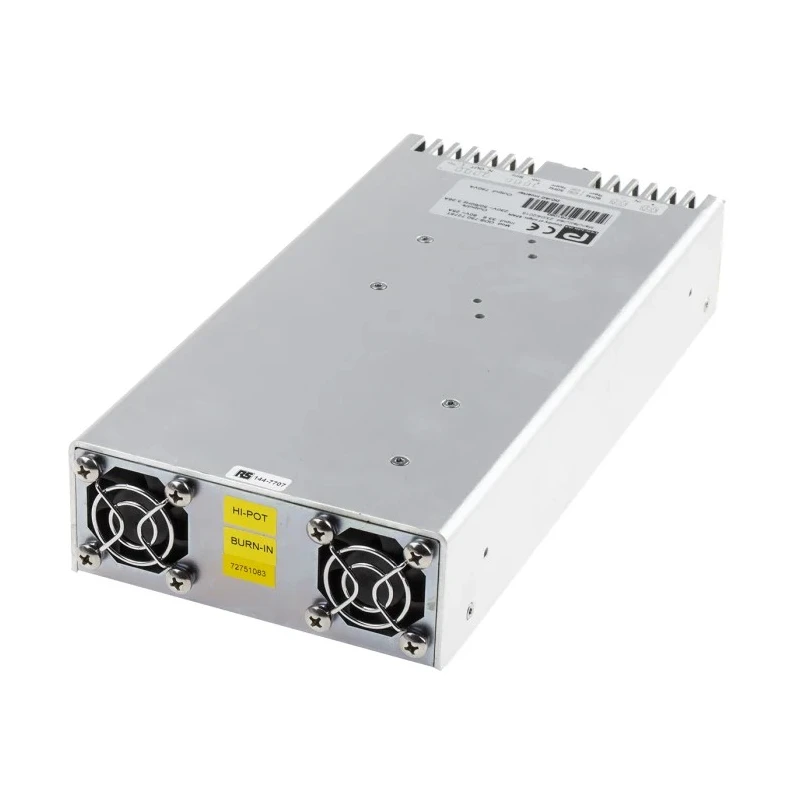

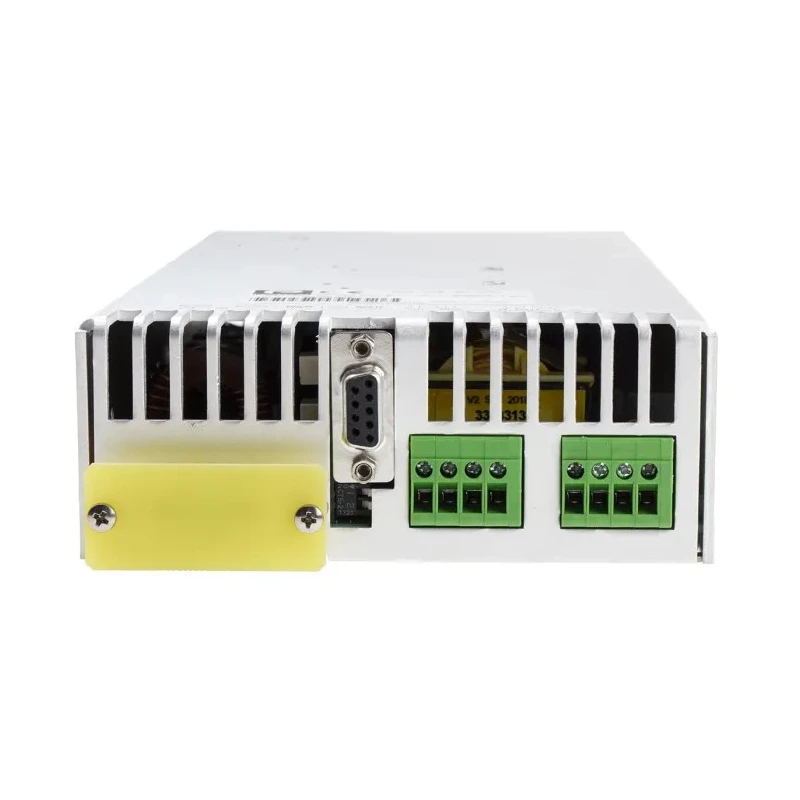

RS PRO Chassis 750W DC AC Inverter 48V dc Input 230V ac Output 144-7707
Specifications
| Country of Origin | Spain |
|---|---|
| Voltage | Converters / Power Inverters RS PRO Chassis 750W DC AC Inverter, 48V dc Input, 2 |
| Brand | RS PRO |
| Efficiency | 0.88% |
| Length | 270.5mm |
| Model | 144-7707 |
| Depth | 160mm |
| Gross Weight | 2kg |
| Width | 52.5mm |
| Output Power | 750W |
| Mount Type | Chassis |
| Series | RS PRO |
| Output Current | 3.26A |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| MTBF | 160000h |
| Protection features | Current Limit, Overload Protection, Polarity |
| Input Voltage | 48V dc |
| Output Voltage | 230V ac |
| Fire and smoke | EN45545-2 approved |
| Selectable output frequency | 50/60Hz |
Key Features
- Compact chassis mount design measuring 270.5mm length by 52.5mm width and 160mm depth.
- Provides a sine wave output with selectable 50/60Hz frequency.
- Equipped with current limit, overload protection, and polarity safeguards.
- Wide operating temperature range from -25°C to +55°C for versatile deployment.
- High mean time between failures of 160,000 hours ensuring reliable performance.
- Complies with multiple international standards including EN 62368-1 and EN 50155.
- Fire and smoke approved to EN45545-2 for safety in transport and industrial applications.
- Remote inhibit and input/output alarm capabilities for advanced control and monitoring.
Product Description
RS PRO 144-7707 Chassis DC AC Inverter offers a reliable 750W output power with an input voltage of 48V DC and 230V AC output. This compact and robust chassis-mounted inverter is engineered for demanding electrical applications in industrial, railway, maritime, and commercial environments.
The sine wave output is optimized with selectable frequency options of 50 or 60Hz, providing compatibility with global power standards. The device ensures high efficiency at 0.88% and includes multiple protection features such as current limit, overload protection, and polarity safeguard to extend operational life and prevent damage.
With a mean time between failure (MTBF) of 160,000 hours and an operational temperature range from -25°C to 55°C, this inverter is designed for high durability and reliability in harsh conditions. Its compact dimensions of 270.5mm length, 52.5mm width, and 160mm depth enable versatile installation options.
The product meets stringent safety and performance standards including EN 62368-1, 2014/30/EU, EN 50121-3-2, EN 50121-4, EN 45545-2, and EN 50155. It is approved for fire and smoke safety and holds certifications for railway and maritime use, making it suitable for critical transport and industrial systems.
Compact chassis mount with robust protection features. Sine wave output with selectable frequency. High efficiency and long MTBF for reliability. Wide operating temperature range. Comprehensive safety and industry certifications.
Remote inhibit and alarm functions. Approved for railway and maritime applications.
This RS PRO inverter is ideal for industrial power conversion, railway signaling and control systems, maritime power supplies, and commercial electrical installations. Explore more Power Inverters and electrical components in the Electronics & Electricals category at EnvMart for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inverter has an input voltage of 48V DC and provides an output voltage of 230V AC.
This model has an output power rating of 750W.
The inverter operates with an efficiency of 0.88%.
The compact dimensions of this inverter are 270.5mm in length, 52.5mm in width, and 160mm in depth.
It can operate within a temperature range of -25°C to 55°C.
It includes current limit, overload protection, and polarity safeguards to enhance operational safety.
The inverter offers selectable output frequencies of 50Hz and 60Hz.
The mean time between failures (MTBF) is 160,000 hours.
It complies with several international standards including EN 62368-1 and EN 50155, and is fire and smoke approved to EN 45545-2.
The gross weight of this inverter is 2kg.
It is suitable for industrial power conversion, railway signaling and control systems, maritime power supplies, and commercial electrical installations.
Yes, this inverter features a chassis mount design, allowing for versatile installation options.
