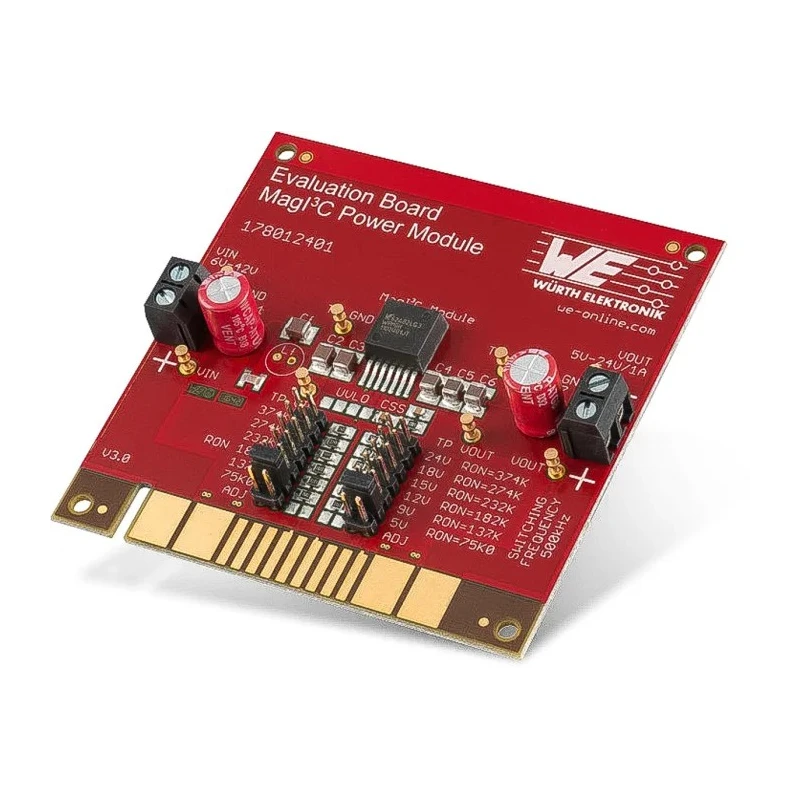

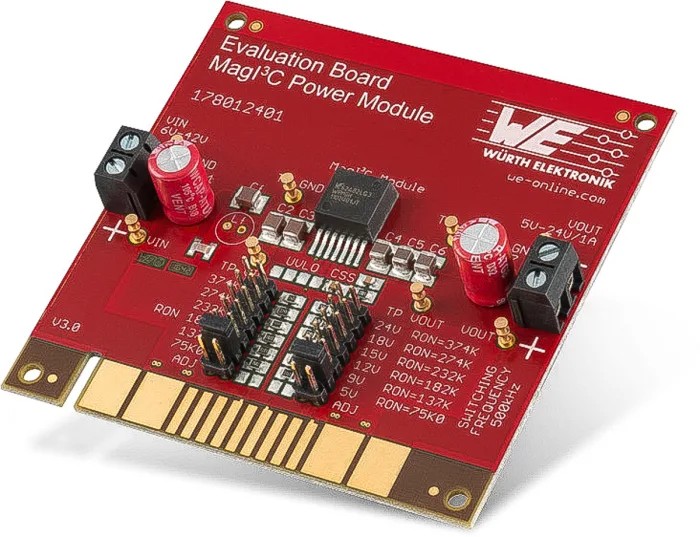

Wurth Elektronik Power Module Step Down Regulator Evaluation Board 6V-42V Input, 5V-24V Output, 36W Output Power MagI3C
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Wurth Elektronik |
| Model | MagI3C |
| Maximum Output Power | 36W |
| Output Voltage Range | 5V to 24V |
| Standards/Approvals | RoHS, UL |
| Kit Classification | Evaluation Board |
| Featured Device | WPMDB |
| Kit Name | MagI3C Power Module |
| Wide Input Voltage Range | 6V to 42V |
| Operating junction temp. range | -40 to 125°C |
Key Features
- Wide input voltage range from 6V to 42V supports versatile power sources.
- Adjustable output voltage range between 5V and 24V accommodates various load requirements.
- Maximum output power rating of 36W ensures reliable supply for moderate loads.
- Integrated thermal and electrical protection features for safe operation.
- Compact industrial TO263-7EP package enhances thermal performance and ease of assembly.
- High peak efficiency up to 97% reduces power loss and heat generation.
- Designed for fast transient response suitable for dynamic load conditions.
- Operating junction temperature range spans from -40°C to 125°C for harsh environments.
Product Description
Wurth Elektronik MagI3C Power Module Step Down Regulator Evaluation Board (Model: MagI3C) offers a robust and efficient DC-DC conversion solution designed for industrial and test equipment applications. This evaluation board features a buck switching regulator integrated with a shielded inductor in a thermally optimized TO263-7EP package measuring 10.16 x 13.77 x 4.57 mm, facilitating effective heat dissipation and easy soldering.
The module supports a wide input voltage range from 6V up to 42V and provides an adjustable output voltage from 5V to 24V, delivering a maximum output power of 36W with peak efficiencies reaching 97%. It supports output currents up to 1.5A with fast transient response, making it suitable for powering DSPs, FPGAs, MCUs, MPUs, and I/O interface circuits.
Advanced protection circuitry includes thermal shutdown, over-current protection, short-circuit protection, overvoltage, undervoltage, and inrush current protection, ensuring reliability in demanding environments. The operating junction temperature range of -40°C to 125°C allows usage in harsh industrial conditions. The module complies with RoHS and UL standards and meets EN 55022 class B radiated and conducted emissions standards, ensuring electromagnetic compatibility.
This power module evaluation board is ideal for point-of-load applications from 12V and 24V industrial rails and is well-suited for industrial, medical, test and measurement, and power management applications.
Wide input voltage range from 6V to 42V for flexible application. Adjustable output voltage between 5V and 24V to fit load needs. 36W maximum output power with high efficiency up to 97%. Robust protection features including thermal and electrical safeguards.
Compact TO263-7EP package enhances thermal management and installation. Compliant with RoHS and UL standards ensuring safety and environment friendliness. Designed for fast transient loads common in industrial environments.
Suitable for powering DSPs, MCUs, FPGAs in industrial and medical equipment. Operating temperature range from -40°C to 125°C for reliability. Meets EN 55022 class B emissions standard. Explore more Wurth Elektronik Power Modules and advanced electronic components on EnvMart to support your industrial development and research projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this power module is from 6V to 42V, allowing for versatile power source compatibility.
The maximum output power rating of this evaluation board is 36W, suitable for moderate load requirements.
It supports an adjustable output voltage range from 5V to 24V, accommodating various load needs.
The module includes advanced protection features such as thermal shutdown, over-current protection, short-circuit protection, overvoltage, undervoltage, and inrush current protection.
The operating junction temperature range for this model spans from -40°C to 125°C, making it suitable for harsh environments.
It achieves peak efficiencies of up to 97%, which helps reduce power loss and heat generation.
The TO263-7EP package measures 10.16 mm x 13.77 mm x 4.57 mm, facilitating effective heat dissipation and easy soldering.
This model is ideal for point-of-load applications in industrial, medical, test and measurement, and power management scenarios.
The module complies with RoHS and UL standards and meets EN 55022 class B radiated and conducted emissions standards, ensuring electromagnetic compatibility.
It is designed for fast transient response, making it suitable for dynamic load conditions, such as powering DSPs, FPGAs, and MCUs.
The module supports output currents of up to 1.5A, which is adequate for various applications.
