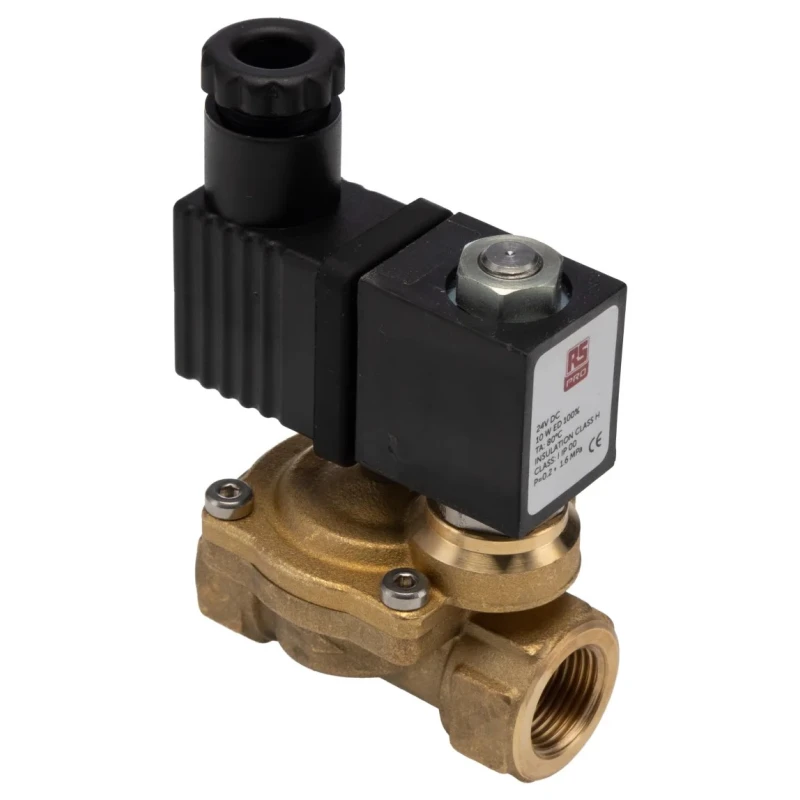

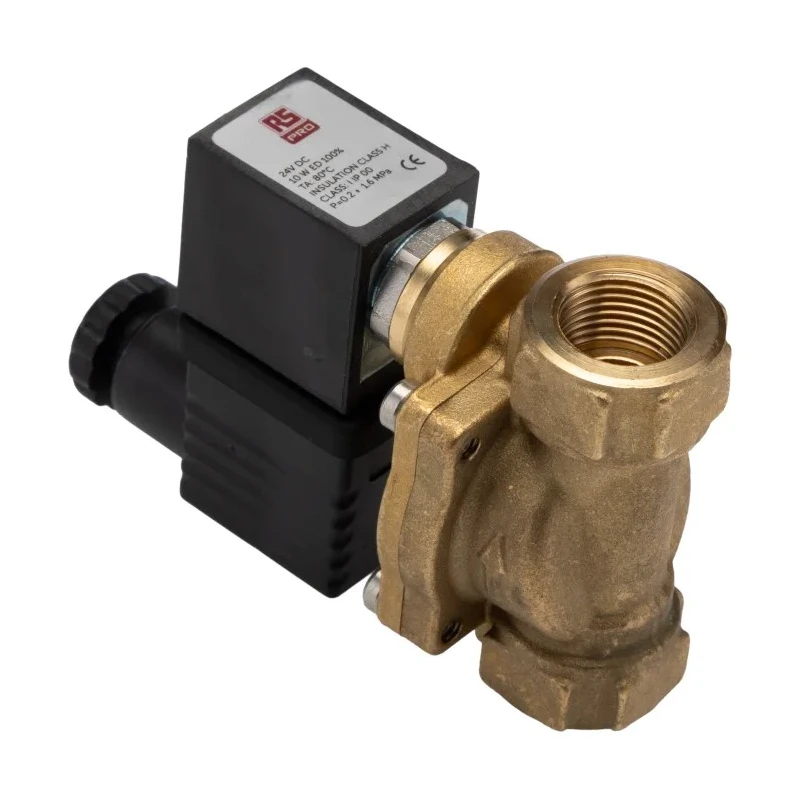

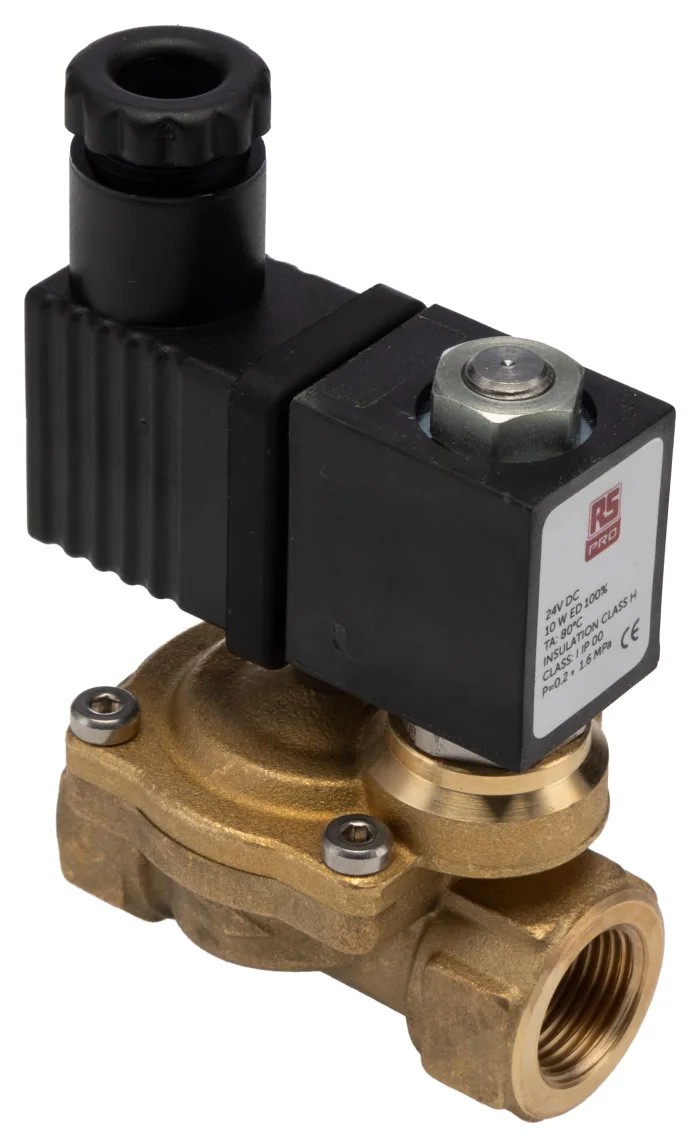

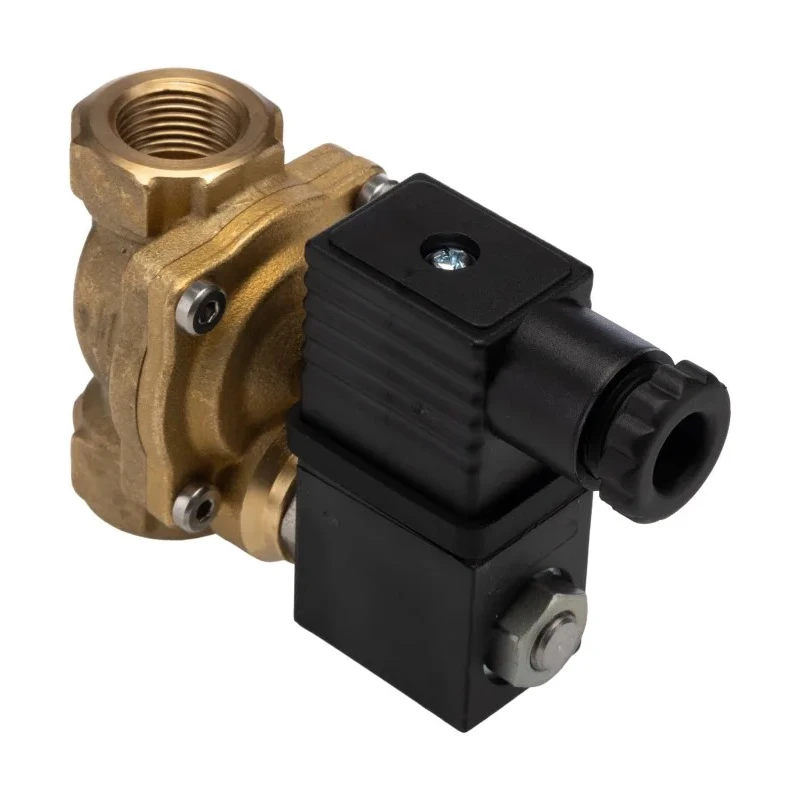

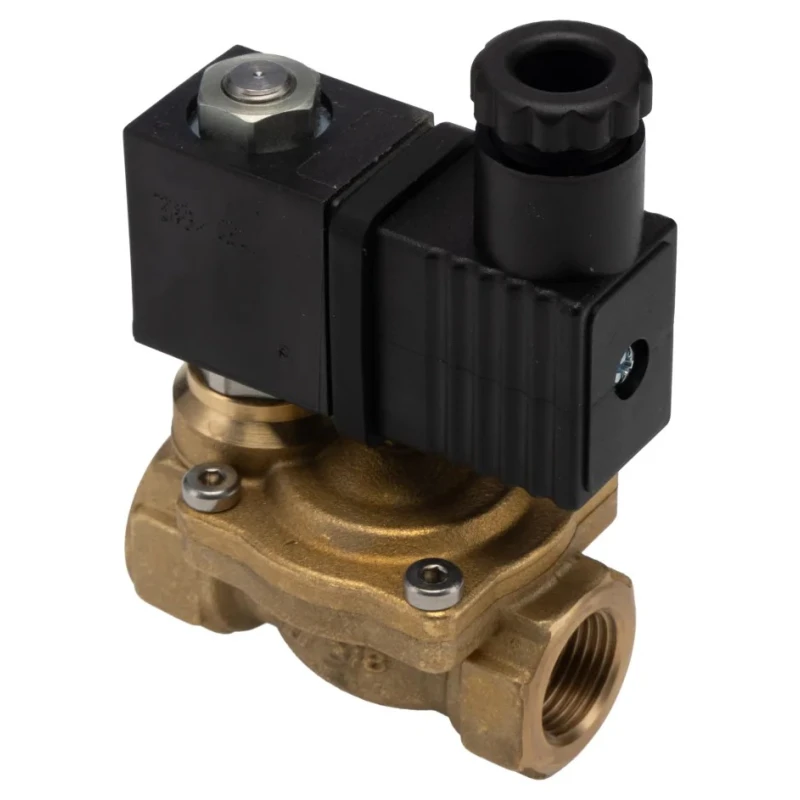

RS PRO Solenoid Valve, 2 Port, Normally Closed, Brass Body, G3/8 BSP, 24V DC, 15 bar Pressure, Flow Factor Kv 1.7 144-0794

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Solenoid Valve, 2 Port, Normally Closed, Brass Body, G3/8 BSP, 24V DC, 15 bar Pressure, Flow Factor Kv 1.7 144-0794

Name: RS PRO Solenoid Valve, 2 Port, Normally Closed, Brass Body, G3/8 BSP, 24V DC, 15 bar Pressure, Flow Factor Kv 1.7 144-0794
Brand: RS PRO
SKU: 209858
Price: 80.1 USD
Availability: InStock



Category Solenoid Valve Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Brand	RS PRO
Body Material	Brass
Maximum Operating Pressure	15 bar
Outlet Connection Type	BSP
Model	144-0794
Series	RS PRO
Number Of Ports	2
Maximum Operating Temperature	90°C
Minimum Operating Temperature	-20°C
Supply Voltage	24V dc
Standards/Approvals	VDE
Inlet Port Size	G3/8
Default Valve Position	NC
Inlet Thread Standard	BSP
Flow Factor Kv	1.7m³/h

Key Features

This solenoid valve offers reliable two-port flow control in normally closed position.
Constructed from durable forged brass to ensure corrosion resistance and longevity.
Operates on a 24V DC supply suitable for various industrial control systems.
Rated for maximum operating pressure up to 15 bar, supporting high-pressure applications.
Designed with G3/8 BSP inlet and outlet connections for standard piping integration.
Flow factor Kv of 1.7 m³/h enables efficient fluid flow regulation.
Wide operating temperature range from -20°C to 90°C accommodates varied environments.
Includes servo assist for enhanced valve operation efficiency.

Product Description

RS PRO 144-0794 is a high-quality solenoid valve engineered for precise fluid and gas flow control in industrial, laboratory, and mechanical systems. Featuring a robust brass body with forged construction, it resists rust and offers durability under demanding conditions.

This two-port valve is normally closed (NC) and operates on a 24V DC power supply, ideal for automated control in fire extinguishing, sprinkler, or water jet systems. Its standard G3/8 BSP connections facilitate easy integration into existing piping networks.

The valve supports a maximum operating pressure of 15 bar and works efficiently within a temperature range of -20°C to 90°C, making it suitable for diverse applications including gas and liquid control.

Equipped with a flow factor Kv of 1.7 m³/h and servo assist functionality, it ensures reliable performance and smooth operation. Compliance with VDE standards and ANSI/ESD electrostatic control standards guarantees safety and quality consistent with international industry requirements.

This solenoid valve offers reliable two-port flow control in normally closed position. Constructed from durable forged brass to ensure corrosion resistance and longevity. Operates on a 24V DC supply suitable for various industrial control systems.

Rated for maximum operating pressure up to 15 bar, supporting high-pressure applications. Designed with G3/8 BSP inlet and outlet connections for standard piping integration. Flow factor Kv of 1.7 m³/h enables efficient fluid flow regulation.

Wide operating temperature range from -20°C to 90°C accommodates varied environments. Includes servo assist for enhanced valve operation efficiency. Complies with VDE standards and electrostatic control standards ANSI/ESD S20.20 and BS EN 61340-5-1.

Ideal for industrial, HVAC, manufacturing, and water treatment applications, this RS PRO Solenoid Valve offers dependable automated control solutions to engineers and technicians. Explore more RS PRO industrial valves and fittings on EnvMart for comprehensive fluid power management.
