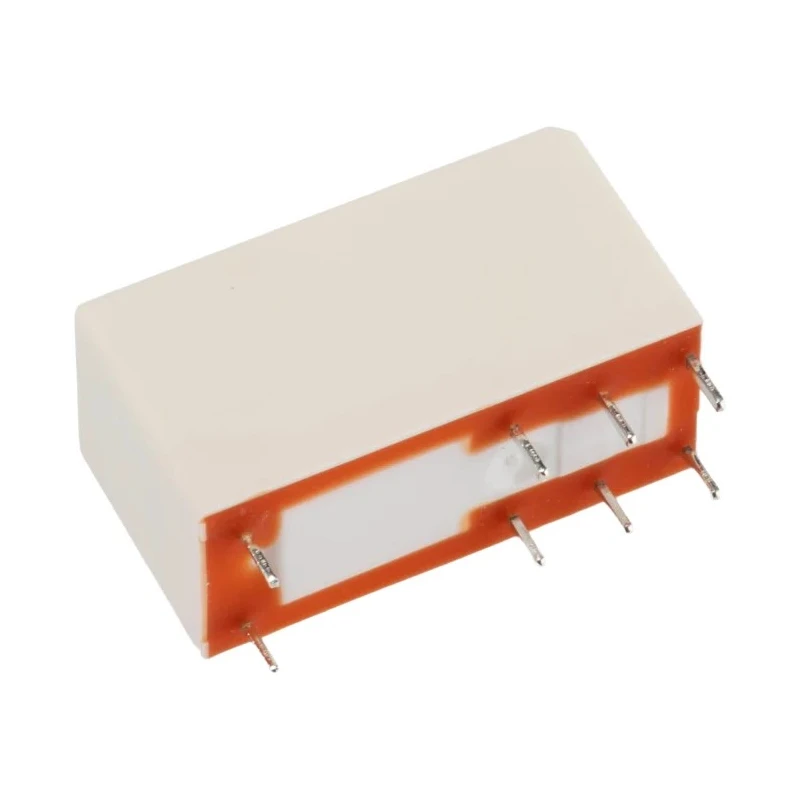

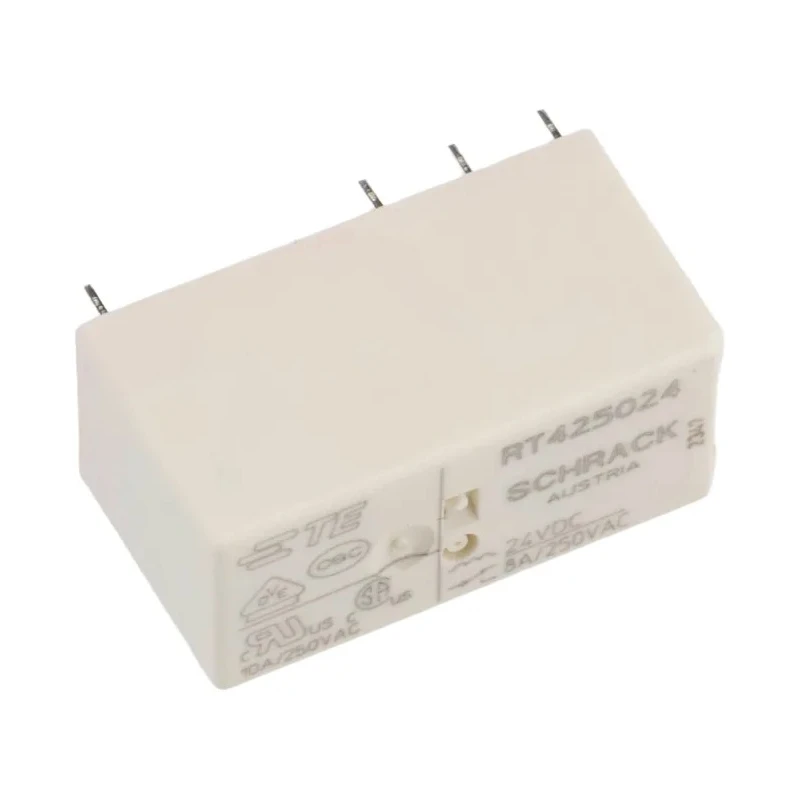

TE Connectivity PCB Power Relay 24V dc Coil 8A Switching Current DPDT RT425024
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT425024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | VDE, RoHS, IEC 60335-1 |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Designed for through-hole mounting on PCBs with solder terminal type.
- Operates efficiently with coil power rating of 250mW and coil resistance of 1.4kΩ.
- Supports switching AC voltage up to 400V AC and switching power rating of 2kVA.
- Gold-plated contacts ensure excellent conductivity and durability.
- Wide operating temperature range from -40°C to 85°C allows versatile industrial application.
- Compact size with dimensions 29mm length, 12.7mm width, and 15.7mm height.
- Meets industry standards including VDE, RoHS, and IEC 60335-1 for quality and safety compliance.
- Ideal for automation, interface, domestic applications, security lighting, and heating systems.
Product Description
TE Connectivity RT425024 PCB Power Relay features a 24V dc coil voltage and provides reliable switching performance with an 8A current capacity in a double-pole double-throw (DPDT) configuration.
This relay is specifically designed for through-hole PCB mounting with solder terminals, facilitating easy and secure installation in electronic circuits. The coil power consumption is low at 250mW, supported by a coil resistance of 1.4kΩ, making it energy efficient for continuous usage.
It supports switching AC voltages up to 400V ac and a switching power capacity of 2 kVA, suitable for various industrial and commercial electrical applications. Gold-plated contacts provide enhanced conductivity and wear resistance, ensuring durability and consistent performance over the relay lifecycle.
The relay operates reliably within a temperature range of -40°C to 85°C, enabling use in harsh environmental conditions. With dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, this compact relay suits space-constrained PCB designs.
Certified to meet VDE, RoHS, and IEC 60335-1 standards, this relay adheres to international safety and environmental regulations.
Commonly employed in interface circuits, automation controls, domestic appliances, security lighting systems, and heating equipment, the RT425024 delivers dependable switching solutions.
Designed for through-hole PCB mounting with solder terminals. Low coil power of 250mW ensures energy efficiency. Gold-plated contacts enhance electrical conductivity. Wide temperature range supports diverse environmental conditions.
Compact size fits various electronic assemblies. Compliant with major industry standards for safety and quality. Made in Austria delivering high manufacturing standards. Applicable in automation, security, and domestic control systems.
Supports AC voltages up to 400V and 8A switching current. Explore more from TE Connectivity products and Power Relays at EnvMart to enhance your industrial and commercial electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V dc.
It can handle a maximum switching current of 8A.
The relay has dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
It supports switching AC voltages up to 400V ac.
This model is designed for through-hole mounting on PCBs with solder terminals.
The coil power rating is 250mW, making it energy efficient for continuous use.
The coil resistance is 1.4kΩ.
It operates within a temperature range from -40°C to 85°C.
The contacts are made of gold-plated material, which enhances conductivity and durability.
It meets VDE, RoHS, and IEC 60335-1 standards for quality and safety compliance.
This relay is commonly used in automation, interface circuits, domestic appliances, security lighting systems, and heating equipment.
The relay is made in Austria, adhering to high manufacturing standards.
