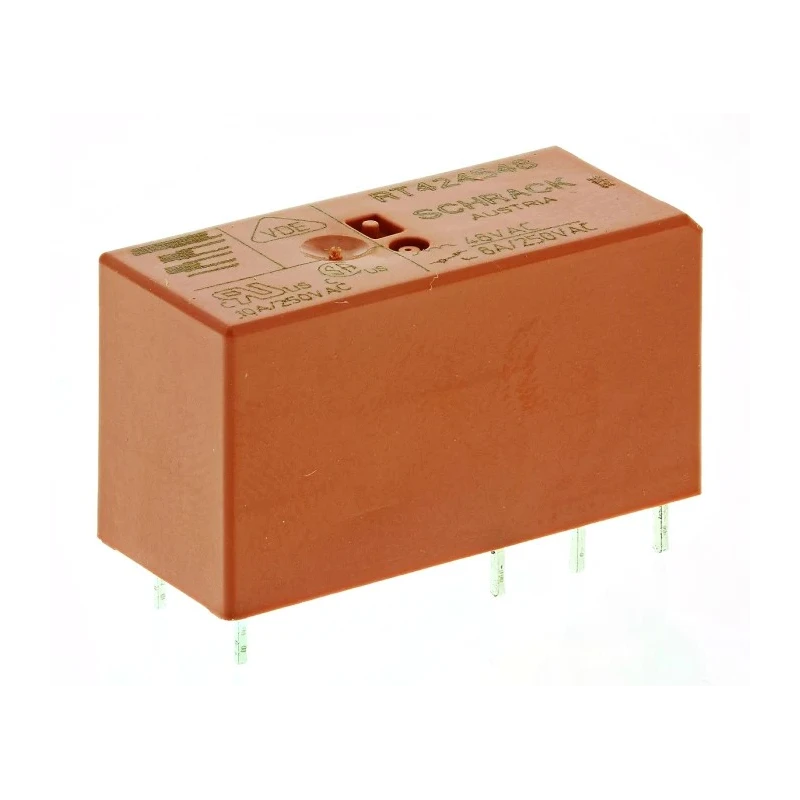

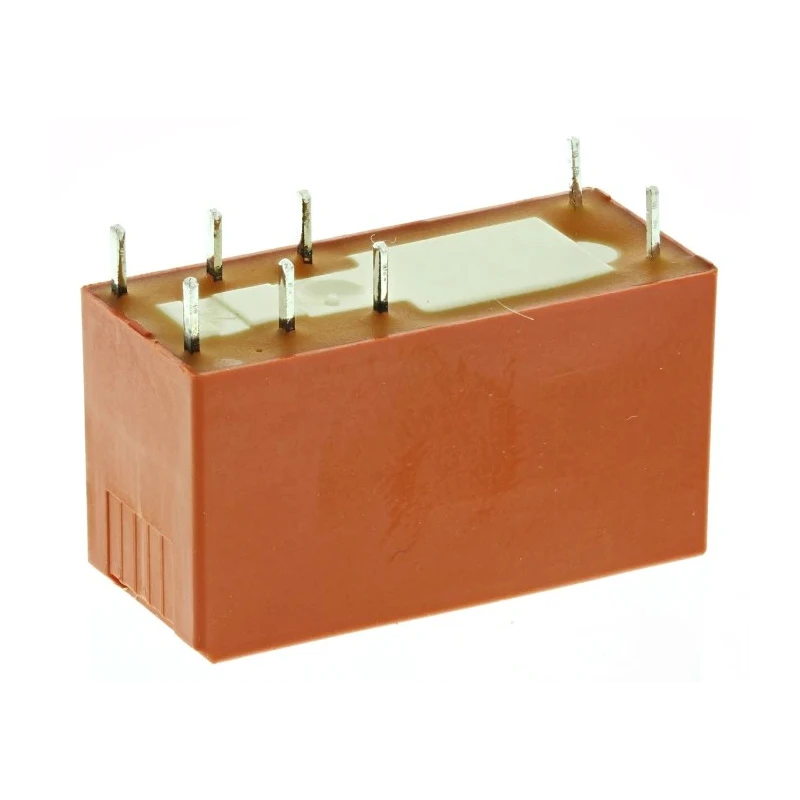

TE Connectivity PCB Power Relay 48V AC Coil 8A Switching Current DPDT RT424548
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424548 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 48V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Designed for PCB mounting with solder terminal type for secure connections.
- Switching AC voltage rating of up to 400V AC for reliable power handling.
- Compact dimensions with length 29mm, width 12.7mm, height 15.7mm.
- Operating temperature range from -40°C to 70°C ensuring durability in varied environments.
- Contact material made from silver alloy for efficient conductivity.
- Includes coil resistance of 1.4kΩ and coil power dissipation of just 250mW.
- Complies with IEC 60335-1, RoHS, and VDE standards for quality and safety.
Product Description
TE Connectivity RT424548 is a high-quality PCB Power Relay designed for industrial and automation applications requiring reliable switching performance. This relay operates with a 48V AC coil voltage and supports an 8A switching current, providing dependable DPDT (Double Pole Double Throw) contact configuration suitable for multiple circuit control.
With a compact form factor of 29mm length, 12.7mm width, and 15.7mm height, it fits efficiently on standard PCBs. The relay features solder terminals for robust electrical connections and is engineered for through-hole mounting, compatible with RT2 series specifications.
Its switching capability extends to an AC voltage of 400V and switching power up to 2kVA, making it suitable for a wide range of electronic control circuits. The coil resistance is specified at 1.4kΩ with low power consumption of 250mW, supporting energy-efficient operation.
Designed to operate in temperatures ranging from -40°C to 70°C, this relay withstands harsh environments ensuring long-term durability. Contact points are constructed using silver alloy, enhancing conductivity and reducing contact resistance for superior electrical performance.
The RT424548 relay meets stringent IEC 60335-1, RoHS, and VDE certifications, emphasizing environmental compliance and safety standards. It is ideally suited for industrial automation, interface modules, security lighting, and heating system controls.
Designed for PCB mounting with solder terminal type for secure connections. Switching AC voltage rating of up to 400V AC for reliable power handling. Compact dimensions with length 29mm, width 12.7mm, height 15.7mm. Operating temperature range from -40°C to 70°C ensuring durability in varied environments.
Contact material made from silver alloy for efficient conductivity. Includes coil resistance of 1.4kΩ and coil power dissipation of just 250mW. Complies with IEC 60335-1, RoHS, and VDE standards for quality and safety.
Explore the Electronics & Electricals category at EnvMart for a comprehensive selection of relays and contactors including TE Connectivity Power Relays, designed to meet your industrial and electronic control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 8A, making it suitable for various electronic control applications.
This model operates with a coil voltage of 48V AC, which is essential for its functionality in power applications.
The relay has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, allowing for efficient PCB mounting.
The maximum switching AC voltage for this relay is 400V AC, which supports reliable power handling in various applications.
It features a DPDT (Double Pole Double Throw) contact configuration, suitable for multiple circuit control.
The operating temperature range for this model is from -40°C to 70°C, ensuring functionality in diverse environments.
The coil resistance is specified at 1.4kΩ, which contributes to its energy-efficient operation.
The contact material is made from silver alloy, enhancing conductivity and reducing contact resistance.
It complies with IEC 60335-1, RoHS, and VDE standards, ensuring quality and safety in its applications.
The coil power dissipation is just 250mW, which supports energy-efficient operation of the relay.
This relay is designed for PCB mounting with solder terminals, providing secure electrical connections.
The relay is manufactured in Austria, reflecting its quality and adherence to European standards.
