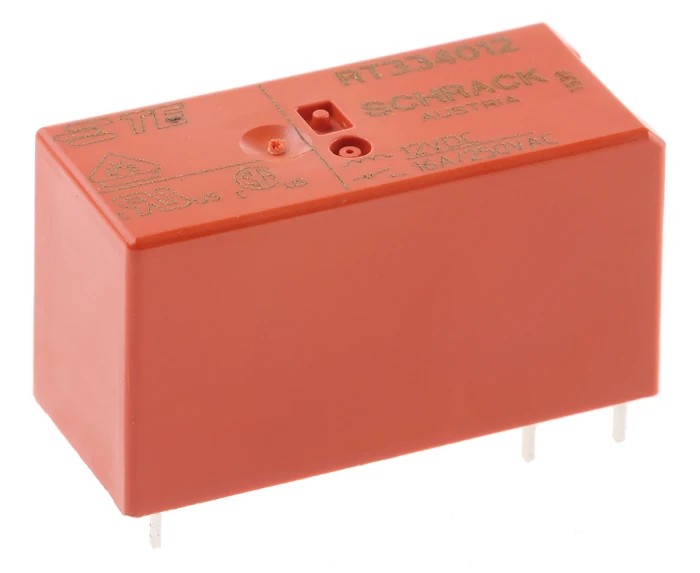

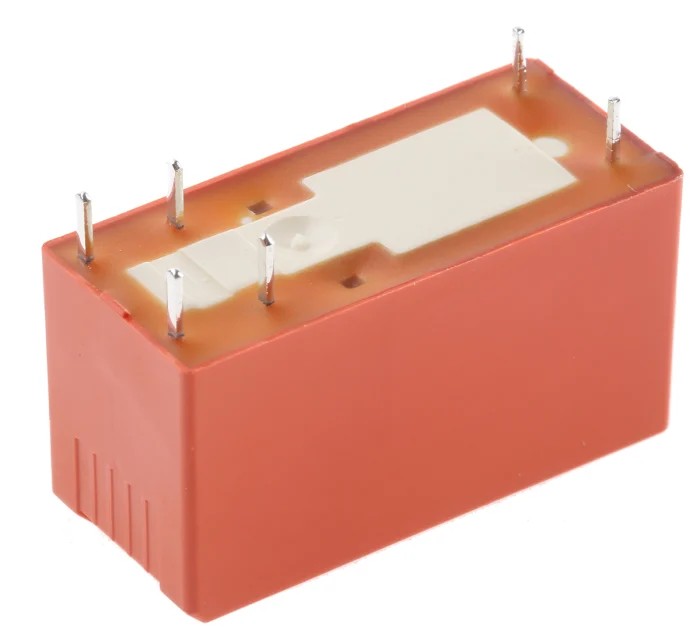

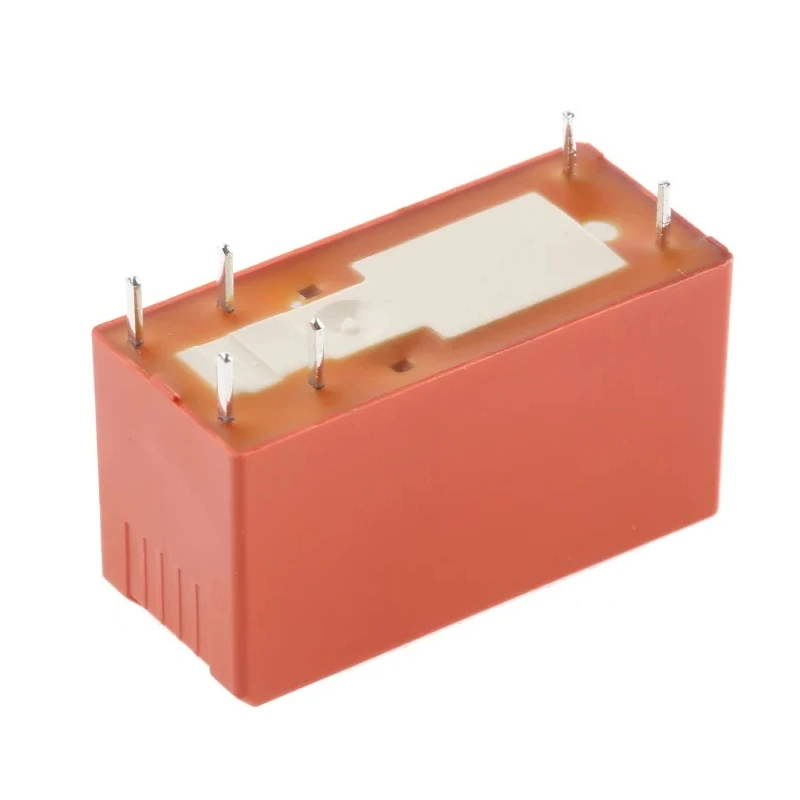

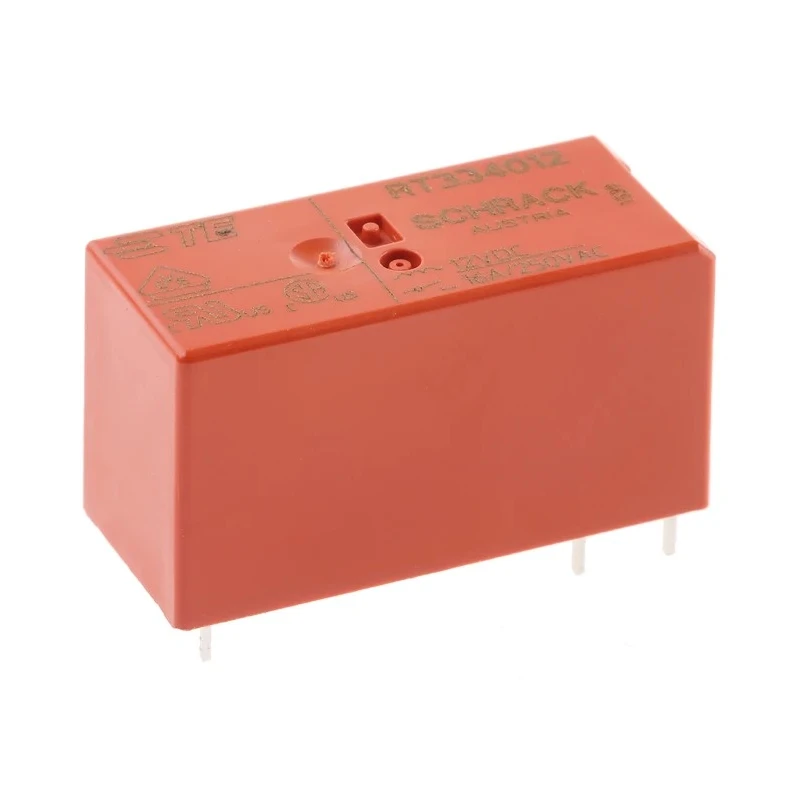

TE Connectivity PCB Power Relay, 12V DC Coil, 16A Switching Current, SPST RT334012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT334012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Operates at a coil voltage of 12V DC ensuring stable performance.
- Switching current rated at 16 amperes suitable for various applications.
- Single Pole Single Throw (SPST) contact configuration for straightforward switching.
- Designed for mounting on PCBs with solder terminal type for secure attachment.
- Compact dimensions with 29mm length, 15.7mm height, and 12.7mm width.
- Coil resistance of 360 ohms and coil power consumption of 250mW for efficiency.
- Contact material is silver nickel alloy ensuring durability and conductivity.
- Operational temperature range from -40°C to 85°C for diverse environments.
Product Description
TE Connectivity RT334012 PCB Power Relay is a robust component engineered for demanding automation, electrical, and industrial control applications. Featuring a 12V DC coil and 16A switching current in an SPST contact configuration, this relay offers reliable switching performance for power management on printed circuit boards.
Its construction includes high-quality silver nickel alloy contacts, optimized for long service life and stable conductivity. The relay is designed for PCB solder mounting and adheres to industry standards such as IEC 60335-1, RoHS, and VDE assuring compliance and performance assurance.
With a compact size of 29mm length, 15.7mm height, and 12.7mm width, it is suitable for space-constrained applications. The coil power consumption is limited to 250mW supported by a coil resistance of 360 ohms, enhancing energy efficiency.
Operating reliably in environments ranging from -40°C to 85°C, it is ideal for interface circuits, security lighting, heating systems, and general automation tasks requiring dependable power switching.
Manufactured in Austria, this relay is part of TE Connectivity's RT Series, known for flux-proof pinning and various coil voltages to accommodate different industrial needs. It is particularly useful in industrial, automation, domestic, and HVAC control systems.
Operates at a coil voltage of 12V DC ensuring stable performance. Switching current rated at 16 amperes suitable for various applications. Single Pole Single Throw (SPST) contact configuration for straightforward switching.
Designed for mounting on PCBs with solder terminal type for secure attachment. Compact dimensions with 29mm length, 15.7mm height, and 12.7mm width. Coil resistance of 360 ohms and coil power consumption of 250mW for efficiency.
Contact material is silver nickel alloy ensuring durability and conductivity. Operational temperature range from -40°C to 85°C for diverse environments. Compliance with IEC 60335-1, RoHS, and VDE standards ensuring safety and reliability.
Manufactured in Austria with high quality control standards. Explore our extensive range of Power Relays at EnvMart for reliable electrical and automation components suitable for industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC, ensuring stable performance in its applications.
This model has a maximum switching current rating of 16 amperes, making it suitable for various applications requiring reliable power management.
It features a Single Pole Single Throw (SPST) contact configuration for straightforward switching operations.
The relay has compact dimensions of 29mm in length, 15.7mm in height, and 12.7mm in width, making it suitable for space-constrained applications.
The operational temperature range for this unit is from -40°C to 85°C, allowing it to function effectively in diverse environments.
The coil resistance of this relay is 360 ohms, contributing to its energy efficiency with a coil power consumption of 250mW.
The contact material is a silver nickel alloy, which ensures durability and stable conductivity for reliable performance.
This model is designed for PCB mounting with a solder terminal type for secure attachment.
It complies with industry standards such as IEC 60335-1, RoHS, and VDE, ensuring safety and reliability in its applications.
The coil power consumption of this relay is 250mW, which enhances its efficiency during operation.
This relay is particularly useful in interface circuits, security lighting, heating systems, and general automation tasks requiring dependable power switching.
This relay is manufactured in Austria, adhering to high quality control standards.
