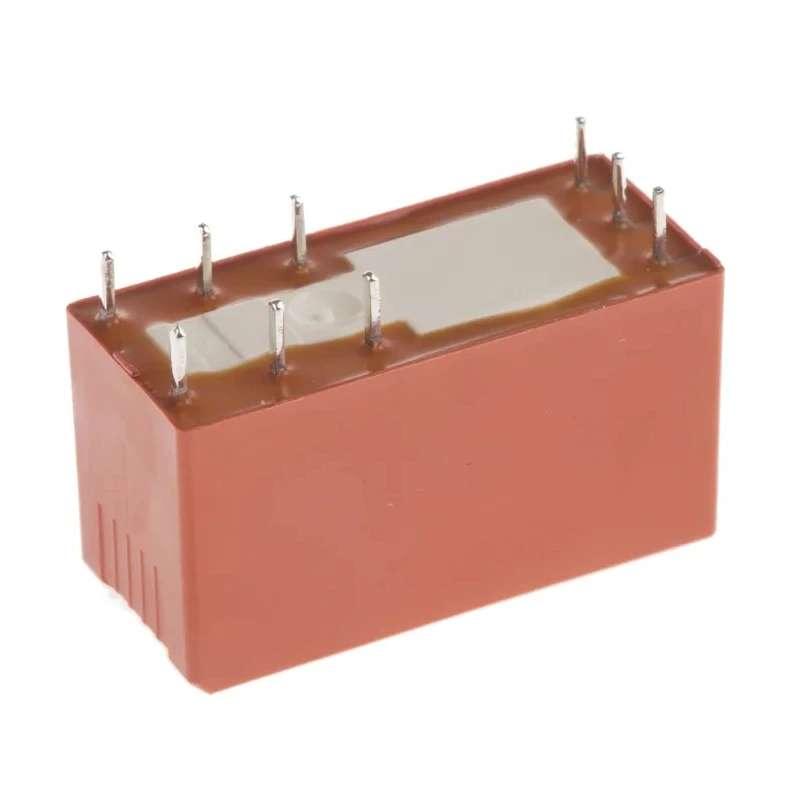

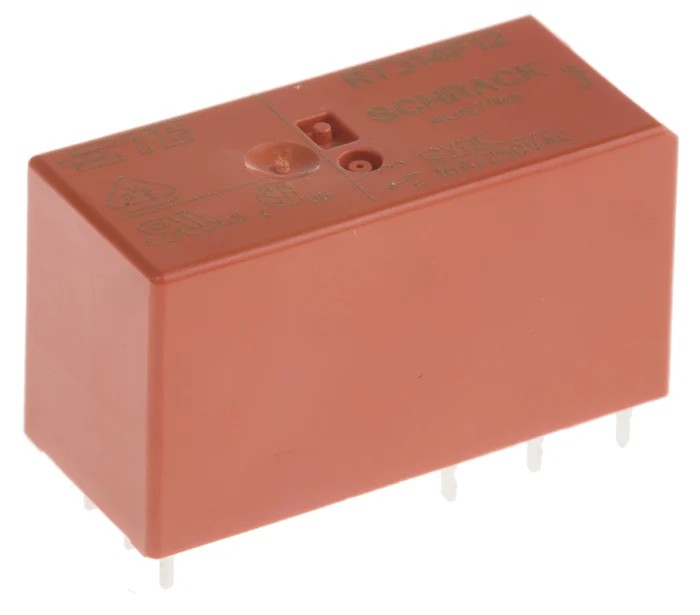

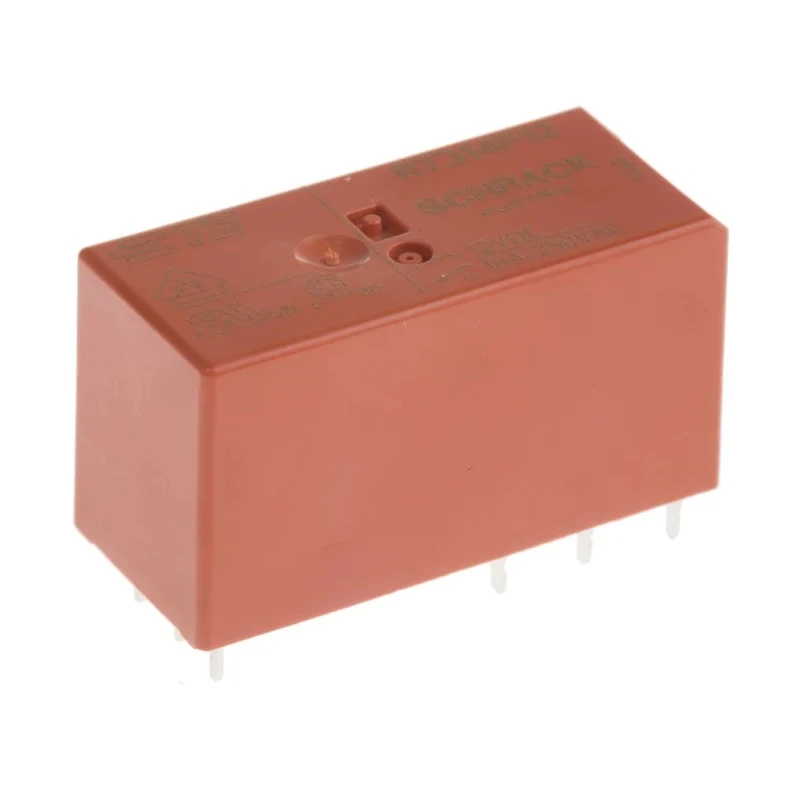

TE Connectivity PCB Power Relay 12V dc Coil 16A Switching Current SPDT RT314F12

TE Connectivity RT314F12 is a robust PCB Power Relay designed for efficient switching applications in electrical and automation systems. It features a 12V dc coil and SPDT contact configuration, suitable for diverse industrial and commercial uses requiring reliable relay performance.

This relay belongs to the SCHRACK series, which offers reinforced insulation and shock resistance capabilities. It supports a switching current of 16A and can handle switching AC voltages up to 400V, making it ideal for controlling medium power circuits.

The relay's operating temperature range spans from -40°C to 85°C, ensuring stable operation under varying environmental conditions. Its coil resistance is 240Ω and coil power consumption is 600mW, reflecting efficient energy use during activation.

Constructed with silver alloy contacts, the relay guarantees excellent electrical conductivity and durability, enhancing lifespan in demanding settings. Its compact form factor with dimensions of length 29mm, width 12.7mm, and height 15.7mm allows easy integration into PCB assemblies.

This product meets rigorous safety and quality certifications including cULus and VDE approvals, ensuring compliance with international standards. Typical applications include industrial automation, control panels, HVAC systems, and electronic equipment requiring dependable power relay switching.

Designed for PCB mounting with solder terminals. Reinforced insulation and shock-resistant construction. Suitable for battery powered and memory function applications. Supports switching power up to 4kVA at 400V AC. Compact and durable with silver alloy contacts.

Certified to cULus and VDE standards. Ideal for industrial, automation, HVAC, and control uses. Explore the wide range of electrical relays and components available at EnvMart for your specialized industrial needs.
