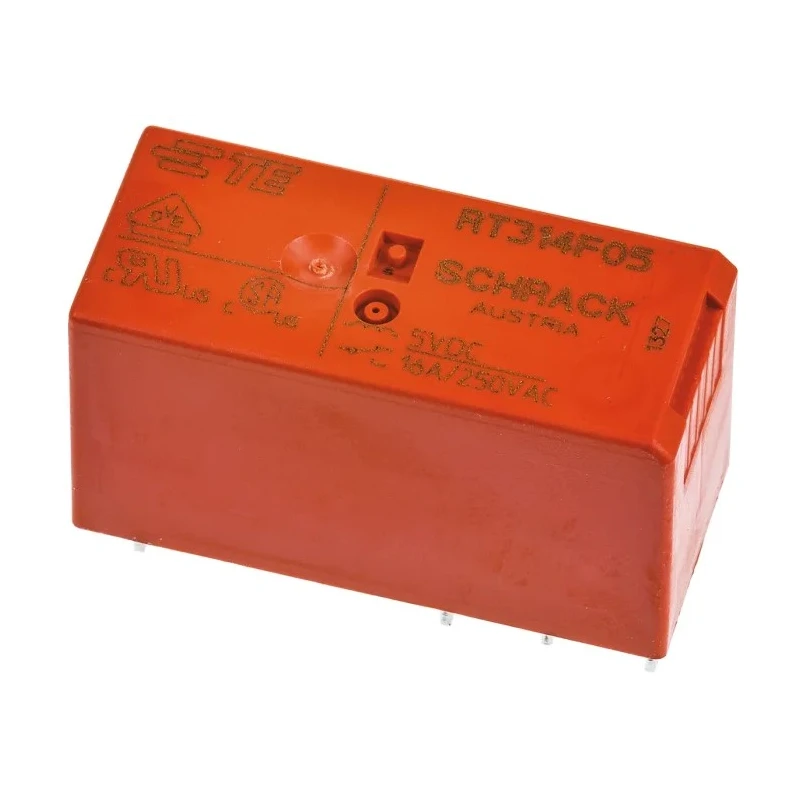

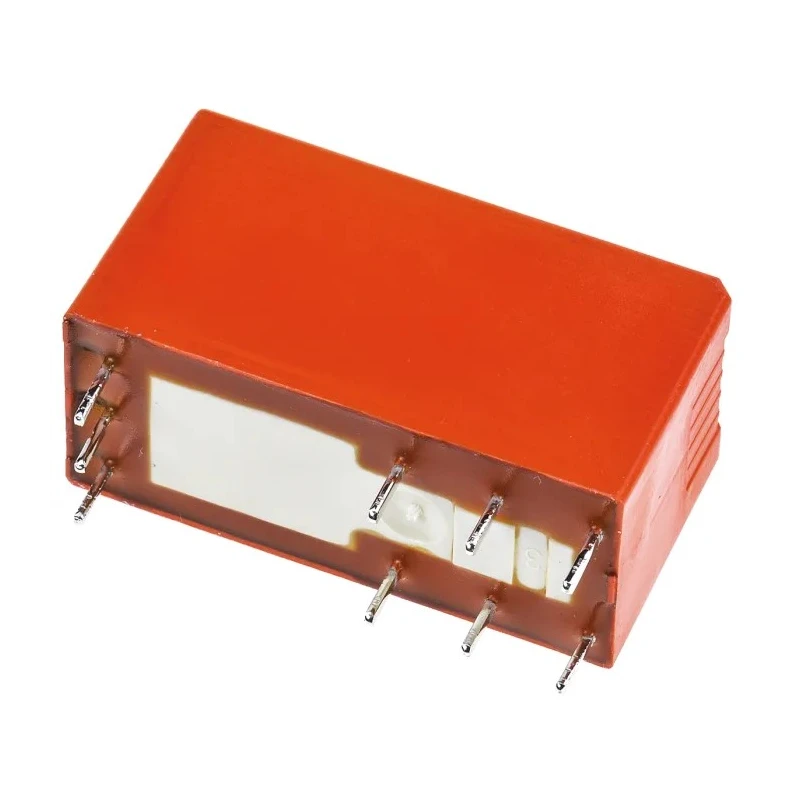

TE Connectivity PCB Power Relay 5V DC Coil 16A Switching Current SPDT RT314F05
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314F05 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 42Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
Key Features
- Operates with a coil voltage of 5V DC for efficient switching.
- Switching current capacity is rated at 16A, suitable for high power applications.
- Contact configuration is Single Pole Double Throw (SPDT) ensuring versatile switching.
- Features solder terminal type for secure PCB mounting.
- Coil resistance is 42 ohms optimizing power consumption.
- Compact dimensions with length 29mm, width 12.7mm, and height 15.7mm.
- Operating temperature range from -40°C to 85°C for industrial robustness.
- Constructed with silver alloy contact material for reliable conductivity.
Product Description
TE Connectivity RT314F05 PCB Power Relay with a 5V DC coil and 16A switching current is designed for high performance in industrial and electronic applications. This power relay features a Single Pole Double Throw (SPDT) contact configuration, making it suitable for various control and switching tasks on printed circuit boards.
The relay offers compact dimensions measuring 29mm in length, 12.7mm in width, and 15.7mm in height, ideal for space-conscious designs. It carries a robust coil resistance of 42Ω and operates efficiently across a temperature range from -40°C to 85°C, ensuring reliability under harsh environmental conditions.
Constructed with silver alloy contacts that provide excellent conductivity and durability, RT314F05 supports switching AC voltage up to 400V AC and a switching power of 4kVA. The solder-type terminal facilitates sturdy PCB mounting for automated assembly processes.
This relay belongs to the SCHRACK series, known for bistable and latching characteristics, with reinforced insulation and shock resistance, making it suitable for applications requiring memory functions like battery-powered equipment or mains failure recovery scenarios.
Compliant with RoHS environmental standards, it is a reliable component for industrial automation, control systems, HVAC units, manufacturing equipment, and electrical power systems.
Operates at 5V DC coil voltage with 16A switching capacity. Single Pole Double Throw (SPDT) contact configuration for versatile control. Compact and robust design with precise operational temperature range. Silver alloy contact material guarantees high conductivity and longevity.
Complies with RoHS standards for environmental safety. Part of the SCHRACK series providing bistable/latching capabilities with reinforced insulation. Suitable for industrial automation, HVAC, manufacturing, and power systems.
Shock resistant design supports reliable performance under mechanical stress. Ideal for PCB mounting with solder terminal type facilitating automated assembly. Supports switching AC voltage up to 400V AC and switching power of 4kVA.
Explore more power relay solutions and industrial electrical components at EnvMart for all your professional automation and control needs.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity rated at 16A, making it suitable for high power applications.
This model operates with a coil voltage of 5V DC for efficient switching.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height, making it compact for PCB applications.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching capabilities.
The relay operates effectively within a temperature range of -40°C to 85°C, ensuring reliability in various environments.
The coil resistance is rated at 42 ohms, which optimizes power consumption during operation.
It supports switching AC voltage up to 400V AC, making it suitable for various electrical applications.
This relay uses a solder terminal type, facilitating secure mounting on printed circuit boards.
Yes, it complies with RoHS environmental standards, ensuring safety and environmental responsibility.
The contacts are constructed from silver alloy, which provides reliable conductivity.
This relay is suitable for industrial automation, control systems, HVAC units, and electrical power systems.
