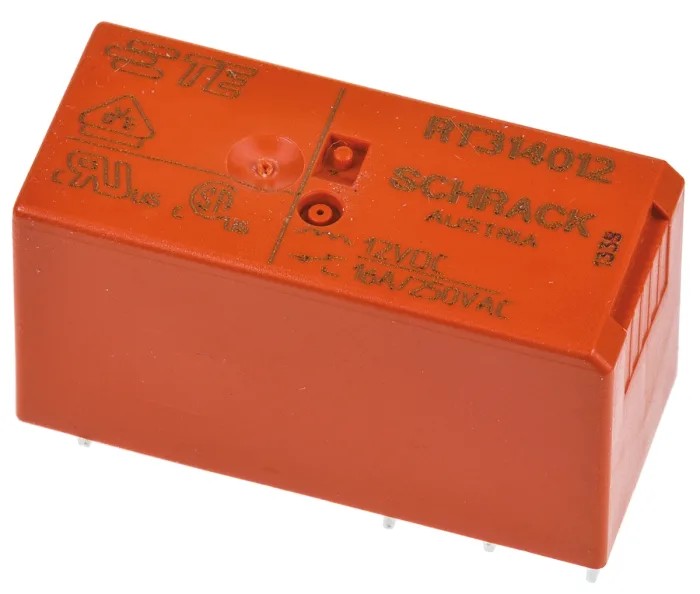

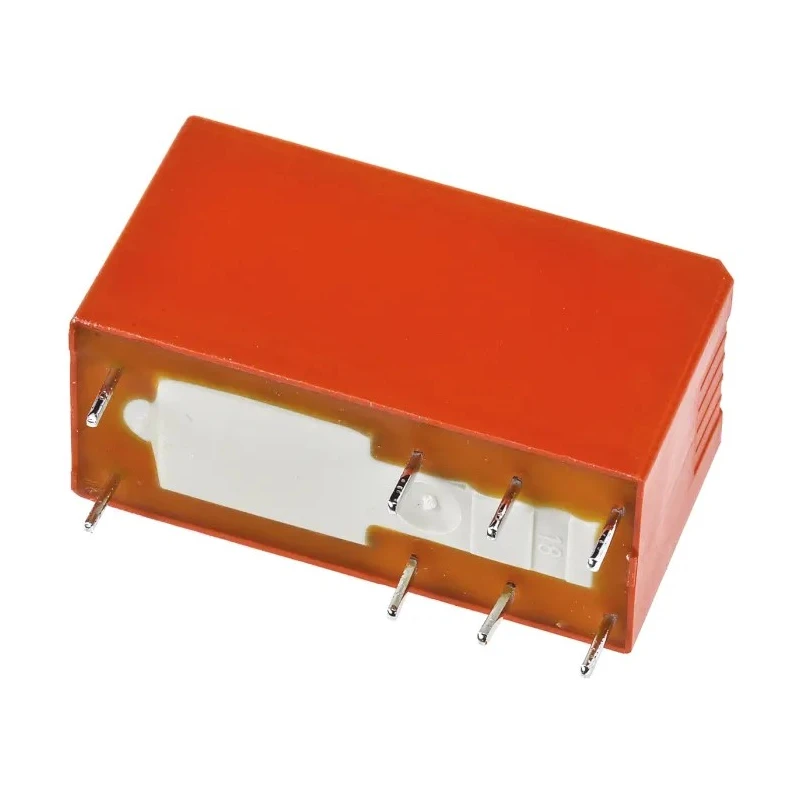

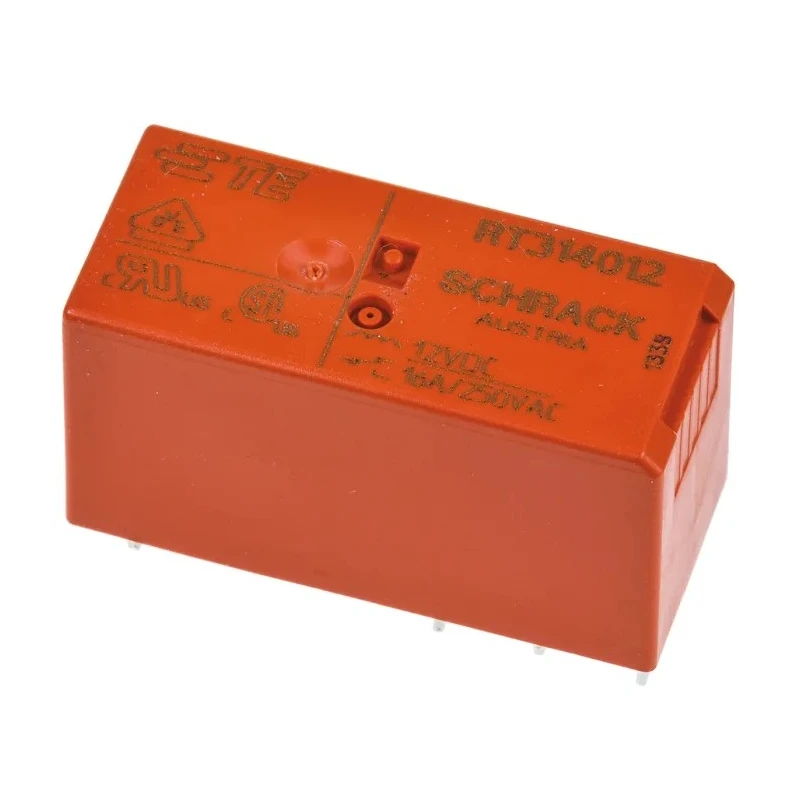

TE Connectivity PCB Power Relay, 12V DC Coil Voltage, 16A Switching Current, SPDT Contact Configuration, RT314012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- This relay is designed for PCB mounting with a solder terminal type for secure connections.
- It operates reliably within a temperature range from -40°C to 85°C.
- The device supports a maximum switching AC voltage of 400V AC.
- The coil resistance is 360 Ohms, consuming a coil power of 250mW.
- Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height facilitate space-efficient integration.
- The contact material is silver nickel alloy, ensuring durable electrical contacts.
- Complies with IEC 60335-1, RoHS, and VDE standards for safety and environmental requirements.
Product Description
TE Connectivity RT314012 PCB Power Relay is a high-quality, through-hole mounting relay designed for varied electromagnetic switching applications. It features a 12V DC coil that efficiently controls circuits with a robust 16A switching current, allowing for reliable performance in automation, interface systems, domestic appliances, security lighting, and heating systems.
The SPDT contact configuration provides versatile switching capabilities suited for multiple industrial and commercial use cases. The relay supports switching AC voltages up to 400V, making it suitable for high power electronic circuits requiring precise control in manufacturing and automation environments.
Constructed with silver nickel alloy contacts, this relay ensures excellent conductivity and longevity under extensive operation. The coil resistance of 360 ohms and coil power consumption of 250mW contribute to efficient energy utilization.
Physically compact with dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, this relay is designed for PCB mounting using solder terminals, simplifying assembly on printed circuit boards while maintaining flux proofing for reliability.
Operating temperature ranges from -40°C to 85°C accommodate diverse environmental conditions, aiding installation in industrial and HVAC equipment, manufacturing automation systems, and electrical safety devices.
This relay meets international standards IEC 60335-1, RoHS, and VDE, guaranteeing compliance with safety and environmental regulations. Applications include industrial automation, domestic appliance control, security lighting systems, and heating control.
Compact and efficient for PCB interfacing in control panels and embedded systems. Reliable switching at high current with long contact life due to durable silver nickel alloy contacts.
For high performance and quality in electronic switching, this TE Connectivity RT314012 relay is an excellent choice for engineers and designers. Explore more products in the Power Relays category on EnvMart for complementary components and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
This relay supports a maximum switching current of 16A.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
It can switch AC voltages up to 400V AC.
The dimensions are 29mm in length, 12.7mm in width, and 15.7mm in height.
The coil resistance is 360 Ohms.
The coil power consumption is 250mW.
The contact material is silver nickel alloy, which ensures good conductivity and longevity.
It operates reliably within a temperature range from -40°C to 85°C.
This relay complies with IEC 60335-1, RoHS, and VDE standards.
This model is designed for PCB mounting with solder terminals for secure connections.
It is suitable for applications in industrial automation, domestic appliance control, security lighting systems, and heating control.
