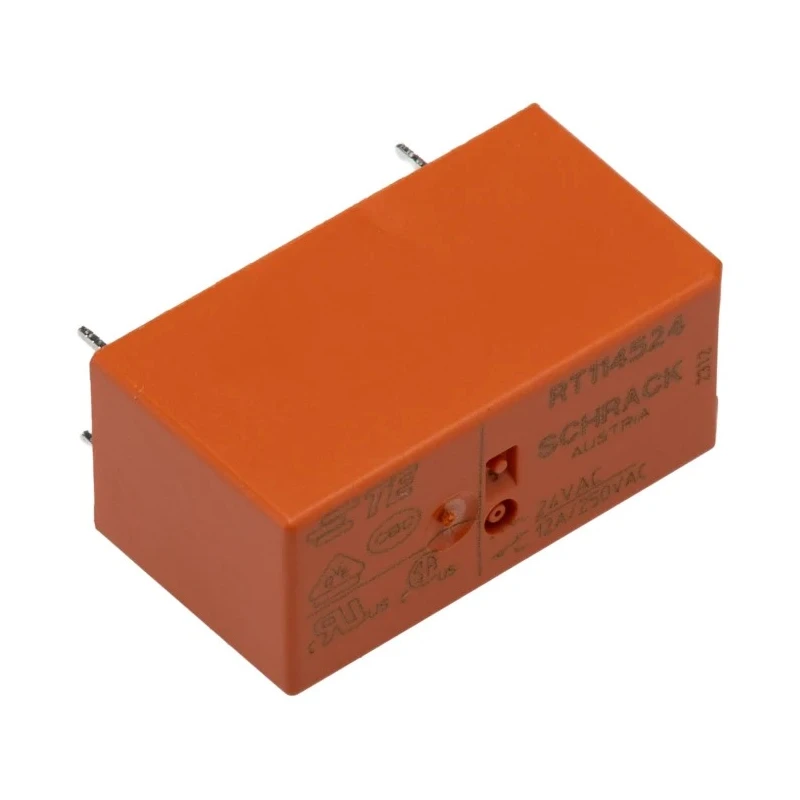

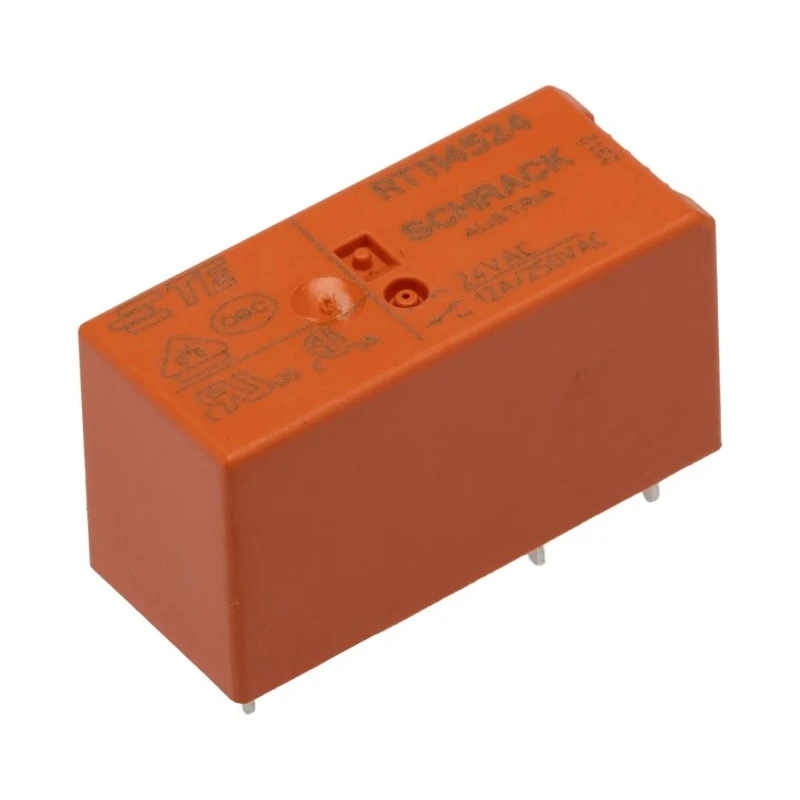

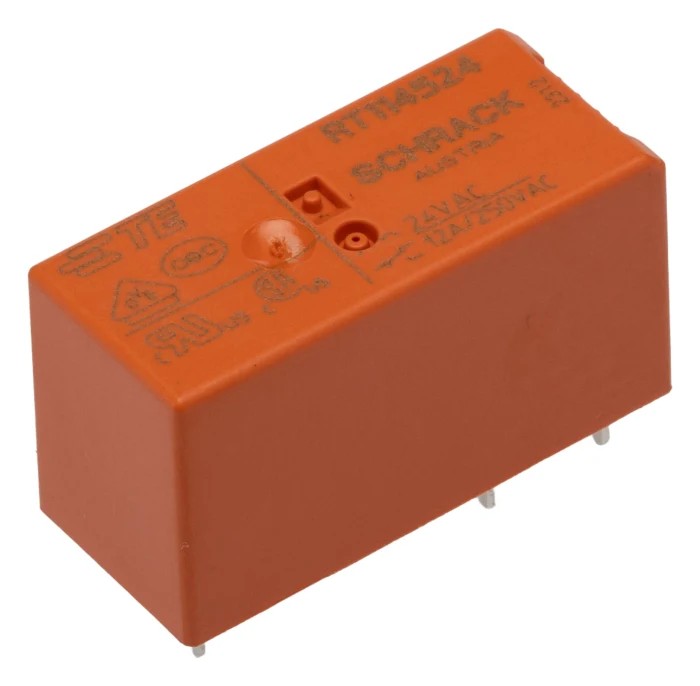

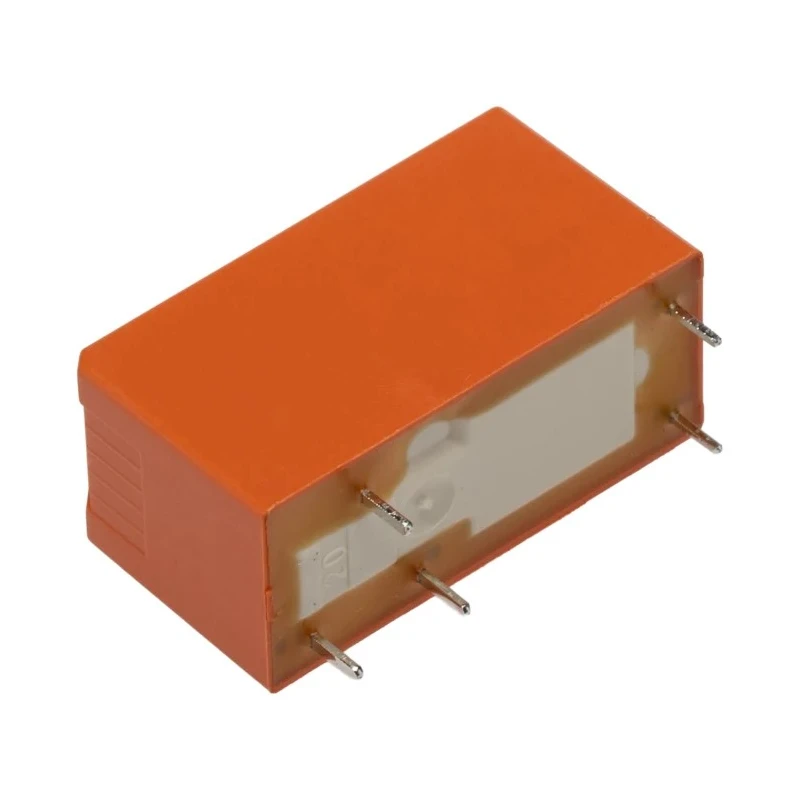

TE Connectivity RT Series PCB Power Relay, 24V AC Coil, 12A Switching Current, SPDT RT114524

TE Connectivity RT114524 is a high-quality RT Series PCB Power Relay designed with a 24V AC coil voltage and a 12A switching current capacity. This single-pole double-throw (SPDT) relay is engineered for through hole PCB mounting, featuring a robust silver nickel alloy contact material to provide reliable electrical connectivity. The relay operates effectively within a temperature range of -40°C to 70°C, making it suitable for demanding industrial and domestic environments.

The compact relay measures 29mm in length, 12.7mm in width, and 15.7mm in height, supporting space-conscious installation designs. Its coil resistance is specified at 350 ohms with a coil power consumption of 250mW, supporting efficient operation. The relay is capable of switching AC voltages up to 400V AC and switching power rated at 3kVA, offering compatibility with a variety of electrical loads.

Compliant with RoHS, VDE, and IEC 60335-1 standards, this power relay adheres to stringent safety and environmental regulations. The RT Series offers flux-proof pinning and wash-tight designs for enhanced durability in PCB applications. The RT114524 relay is ideal for applications such as interface modules, automation controllers, security lighting, and heating systems, supporting reliable and safe electrical switching.

Manufactured in Austria, this new relay represents TE Connectivity’s commitment to quality and performance. The product is delivered in ready-to-use packaging suitable for mechanical insertion, facilitating streamlined assembly processes.

Designed for PCB mounting with through hole terminals. Operates between -40°C and 70°C for durability in various environments. Silver nickel alloy contact material ensures longevity and performance. Switching AC voltage capacity up to 400V AC supporting robust applications.

Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height facilitate space-saving installations. Coil resistance of 350 ohms and coil power rating of 250mW optimize energy efficiency. Complies with RoHS, VDE, and IEC 60335-1 standards assuring quality and safety.

Suitable for industrial automation, security lighting, heating systems, and domestic applications. Explore more TE Connectivity Power Relays and contactors on EnvMart.
