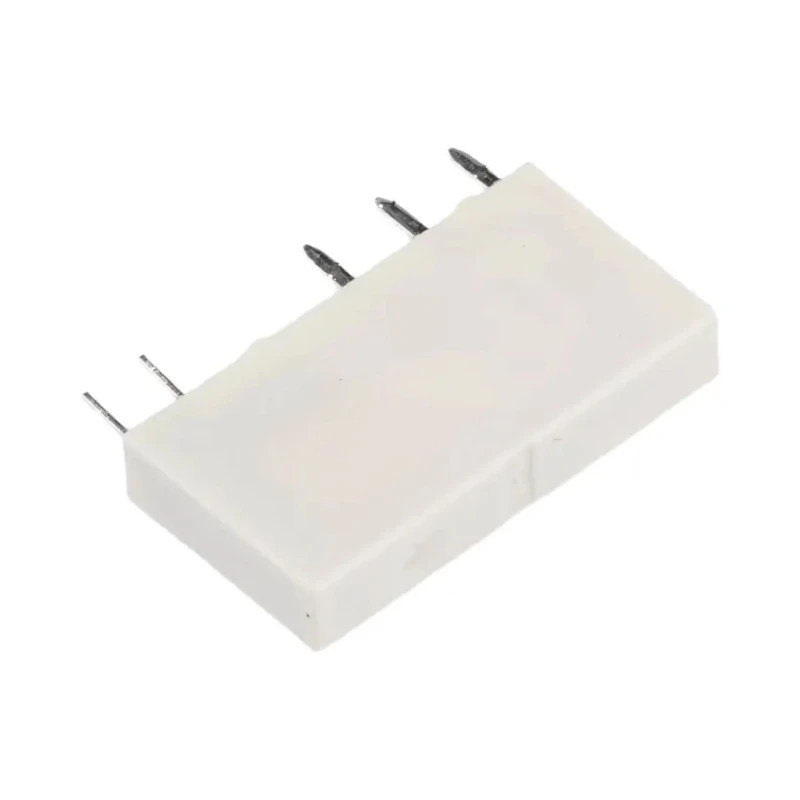

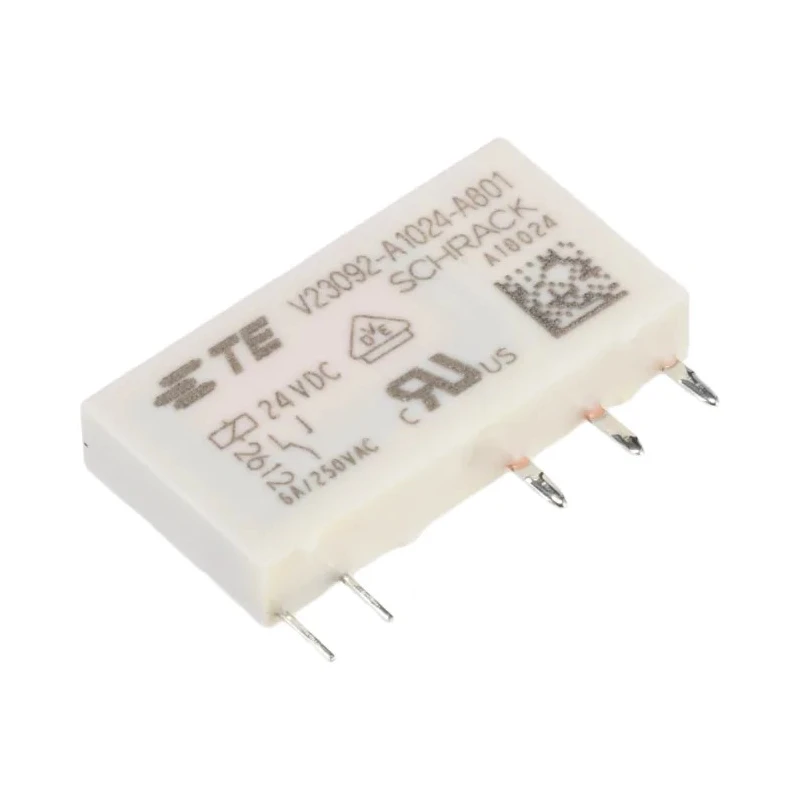

TE Connectivity PCB Power Relay 24V dc Coil 6A Switching Current SPDT V23092-A1024-A801
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 28mm |
| Model | V23092-A1024-A801 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | SNR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Coil Resistance | 3.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 170mW |
| Isolation Coil To Contact | 4000Vac |
| High Coil sensitivity | 170mW |
Key Features
- Designed for high sensitivity with a low coil power of 170mW.
- Compact slim design 5mm thickness suitable for high-density PCB mounting.
- Operating temperature range from -40°C to +85°C for versatile environmental applications.
- Silver nickel alloy contacts ensure reliable switching performance.
- Provides isolation coil to contact voltage of 4000Vac and switching AC voltage up to 400V ac.
- Compliant with standards EN60730-1, IEC 61810-1, UL 508, UL E214025, and VDE certification.
- Durable solder terminal type ensures secure PCB mounting and connection.
- Manufactured in Czech Republic ensuring quality and reliability.
Product Description
TE Connectivity V23092-A1024-A801 PCB Power Relay features a 24V dc coil and a 6A switching current with SPDT contact configuration. This precision relay designed under the SNR series provides high coil sensitivity at 170mW, resulting in low power consumption and efficient operation.
The relay's compact slim profile with only 5mm thickness allows for optimal use in high-density printed circuit boards (PCB), making it ideal for industrial, automation, and electrical applications. The component is capable of handling switching AC voltages up to 400V ac with excellent isolation between coil and contacts at 4000Vac.
Engineered to withstand harsh operating conditions, the device supports a broad temperature range from -40°C to +85°C, ensuring reliable performance in diverse environments. It utilizes silver nickel alloy contact material for enhanced durability and low contact resistance, contributing to long operational life and safety.
This relay is compliant with stringent international standards including EN60730-1, IEC 61810-1, UL 508, and VDE certification, reinforcing its quality and safety guarantees. The solder terminal type facilitates secure PCB mounting and stable electrical connection.
Applications of this relay span industrial automation, manufacturing equipment, HVAC controls, and other electrical signalling and switching tasks requiring precise, reliable relay operation.
High coil sensitivity with low power consumption at 170mW. Compact design, only 5mm thickness for space-saving PCB integration. Wide operating temperature range from -40°C to +85°C for durability. Silver nickel alloy contacts for superior conductivity and longevity.
Isolation voltage rating of 4000Vac ensures safety in high-voltage circuits. Comprehensive certification including UL, CSA, VDE for trusted compliance. Reliable solder terminal for firm mounting on printed circuit boards.
Manufactured in Czech Republic ensuring consistent quality control. Browse EnvMart for more industrial Power Relays, components, and expert electrical automation products to enhance your projects and manufacturing processes.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this model is 24V DC.
This relay can handle a maximum switching current of 6A.
The isolation voltage rating from coil to contact is 4000Vac.
The operating temperature range for this unit is from -40°C to +85°C.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The contacts are made from silver nickel alloy, which enhances conductivity and longevity.
The dimensions of this model are 28mm in length, 5mm in width, and 15mm in height.
This relay features a solder terminal type for secure PCB mounting and connection.
The coil resistance for this model is 3.4kΩ.
The coil power consumption is 170mW, indicating high sensitivity and low power usage.
This relay is compliant with EN60730-1, IEC 61810-1, UL 508, and VDE certification.
This relay is manufactured in the Czech Republic, ensuring quality and reliability.
