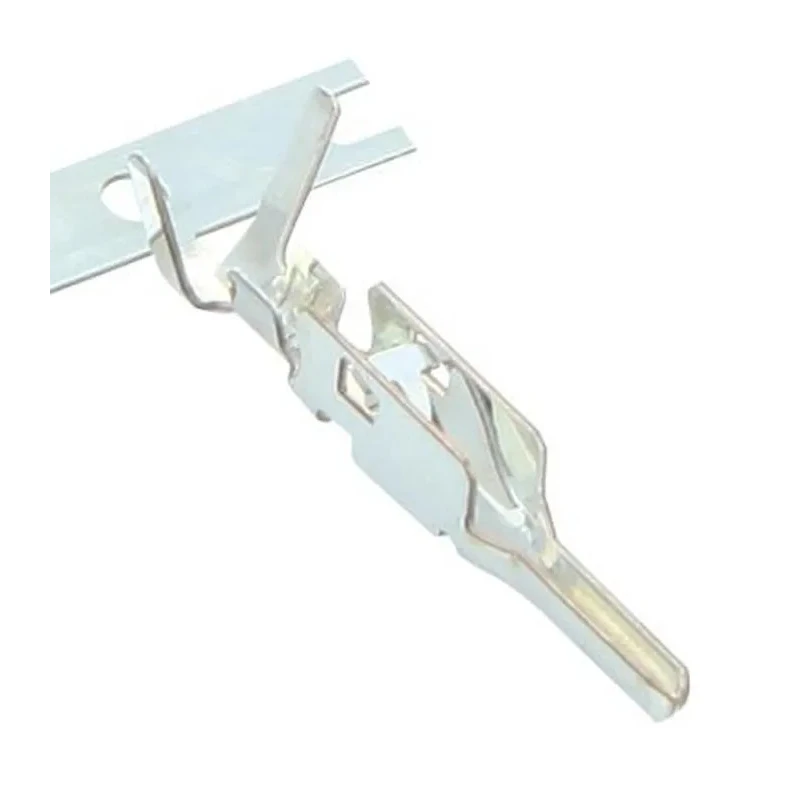

JST PSI Series Male Crimp Terminal 5A Current 26 AWG Min, 22 AWG Max Copper Alloy Tin Plated SPSM-001T-M1.1
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | JST |
| Current | 5A |
| Model | SPSM-001T-M1.1 |
| Gender | Male |
| Contact Material | Copper Alloy |
| Series | PSI |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| For Use With | PSI Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Designed for PSI connector housings with a 4.00 mm pitch system.
- Constructed from copper alloy with tin plating for optimal conductivity and corrosion resistance.
- Features a low insertion force suitable for reliable connections.
- Crimp termination type ensures secure and efficient attachment to wires.
- Operates within a temperature range of -25°C to 85°C.
- Maximum contact resistance is rated at 20 milliohms.
- Manufactured in Malaysia with compliance to relevant quality standards.
- Ideal for electronic component assembly and power connector applications.
Product Description
JST SPSM-001T-M1.1 male crimp terminal is a precision-engineered electrical connector designed for PSI series connector housings featuring a 4.00 mm pitch. This crimp terminal supports a nominal current rating of 5 amperes, accommodating wire sizes ranging from 26 AWG minimum to 22 AWG maximum, corresponding to 0.1 mm² to 0.3 mm² cross-sectional areas.
Manufactured using a copper alloy base material with tin plating, the contact offers excellent electrical conductivity and corrosion resistance. The design incorporates a low insertion force mechanism, facilitating easy and reliable insertion into compatible PSI connector housings.
The crimp termination style provides a secure connection between the terminal and wire, ensuring electrical integrity and mechanical stability in industrial, electronic component assembly, automation, and power distribution applications. The product performs reliably across a broad temperature spectrum from -25 degrees Celsius up to 85 degrees Celsius, making it suitable for various ambient conditions.
The terminal exhibits a maximum contact resistance of 20 milliohms, guaranteeing minimal voltage drop and efficient current flow when installed properly. Originating from manufacturing facilities in Malaysia, the product adheres to industry quality norms but carries no explicit standards or certifications.
Designed for use with PSI connector housings using 4.00 mm pitch. Current rating of 5 amperes. Wire size compatibility from 26 AWG to 22 AWG (0.1 to 0.3 mm²). Copper alloy contact with tin plating for enhanced conductivity.
Low insertion force for easy assembly. Crimp termination ensures secure wire connection. Operational temperature range: -25°C to 85°C. Maximum contact resistance: 20 milliohms.
This male crimp terminal is ideal for use in electronics manufacturing, industrial automation, power connectors, and other applications requiring reliable and precise wire termination solutions. It supports efficient electrical connectivity in compact PCB connector arrangements.
Explore our Electronics & Electricals category at EnvMart for more specialized connector solutions and related components tailored to industrial and commercial needs.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a nominal current rating of 5 amperes.
It supports wire sizes ranging from 26 AWG minimum to 22 AWG maximum, which corresponds to 0.1 mm² to 0.3 mm² cross-sectional areas.
The operational temperature range for this terminal is from -25°C to 85°C.
The maximum contact resistance is rated at 20 milliohms.
This model features a crimp termination type, ensuring a secure and efficient attachment to wires.
It is constructed from a copper alloy with tin plating, which enhances electrical conductivity and corrosion resistance.
It is specifically designed for use with PSI connector housings that have a 4.00 mm pitch.
This terminal is ideal for electronic component assembly, industrial automation, and power connector applications.
This product is manufactured in Malaysia.
This terminal is a male crimp terminal.
The low insertion force design facilitates easy and reliable insertion into compatible PSI connector housings.
While it adheres to relevant quality standards, no explicit certifications are mentioned for this terminal.
