VCC VAOL Series Ultraviolet LED 1-LED 405 nm 15° Viewing Angle 2-Pin Through Hole VAOL-5EUV0T4

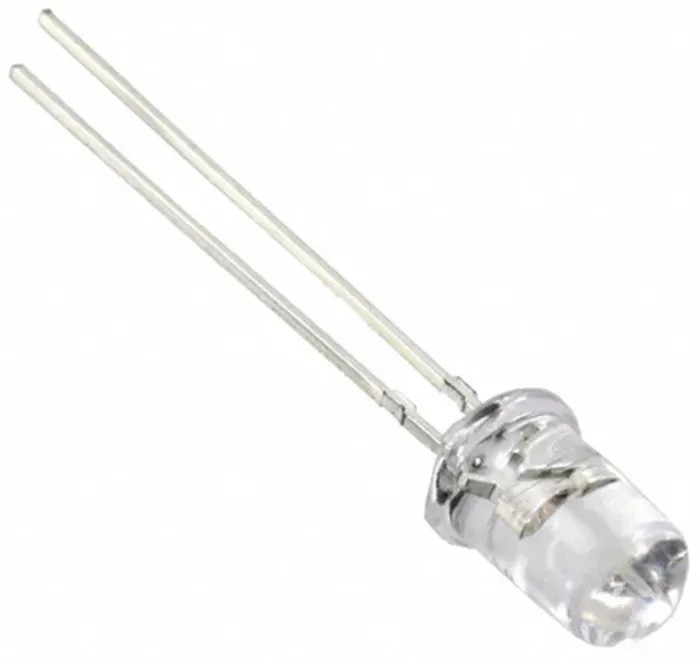

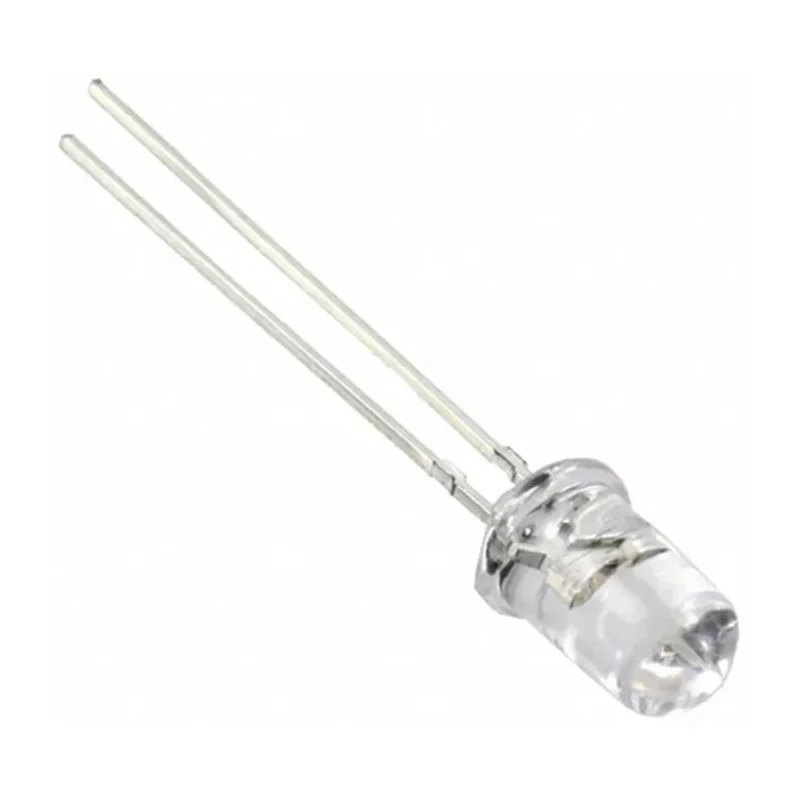

VCC VAOL-5EUV0T4 is a single ultraviolet LED featuring a peak emission wavelength of 405 nm and a narrow 15 degree viewing angle in a classic 5 mm 2-pin through-hole package. It employs InGaN technology and a water-clear transparent lens to deliver focused ultraviolet light with a luminous intensity of 200 mcd.

This LED is suitable for industrial, laboratory, medical, and commercial applications including sterilization and disinfection, adhesive curing processes, leak detection systems, and security authentication lighting. Its robust through-hole mount design allows for easy integration on printed circuit boards requiring ultraviolet light sources.

Physical dimensions are a diameter of 5.9 mm, height of 8.6 mm, width of 5.9 mm, and length of 34 mm. The product is RoHS compliant, aligning with environmental standards. It does not conform to automotive standards.

Emits ultraviolet light at 405 nm wavelength. Features a luminous intensity of 200 millicandelas for effective illumination. Provides a 15 degree narrow beam angle for concentrated UV light. Constructed with InGaN LED material for durability and performance.

Mount type is through-hole with a 2-pin configuration facilitating easy PCB mounting. Dimensions: 5.9 mm diameter and width, 8.6 mm height, and 34 mm length. RoHS compliant and manufactured in Taiwan, Province of China.

This ultraviolet LED is ideal for various specialized lighting applications requiring precise UV radiation and reliability. EnvMart customers in electronics manufacturing, laboratory instrumentation, HVAC, medical devices, and automation industries will find it suitable for enhancing system capabilities.
