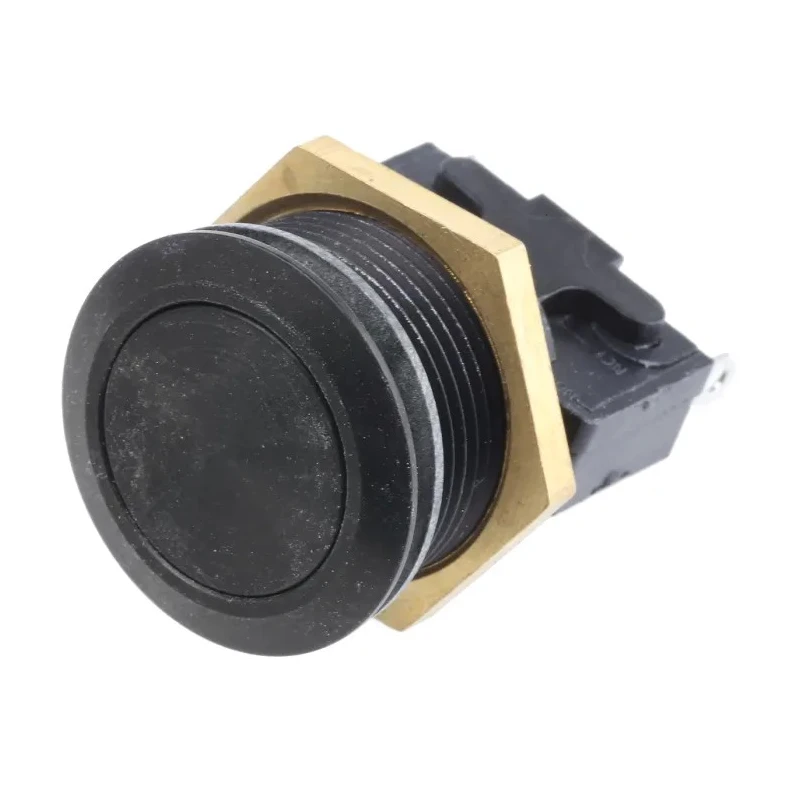

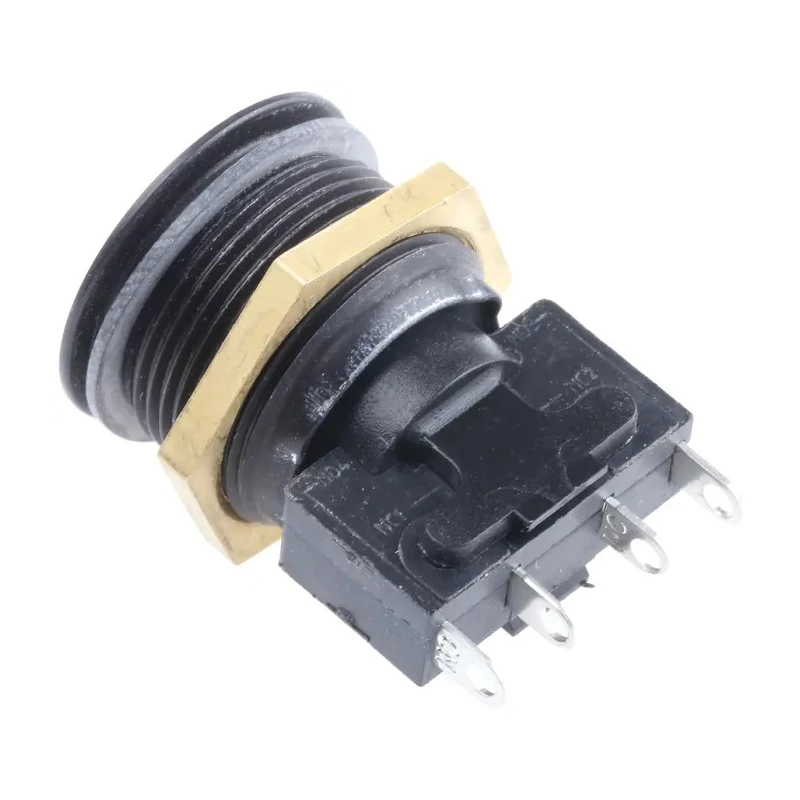

ITW Switches 76-95 Series Panel Mount Momentary Push Button Switch SPDT IP67 19.2 mm Cutout 250 V 10A 76-9513/4044B

ITW Switches 76-9513/4044B is a high-quality 76-95 Series panel mount push button switch designed for applications requiring vandal resistance and durable performance. This momentary switch features a stainless steel body and button, providing excellent resistance to impacts, corrosion, and heat damage. The 19.2 mm panel cutout size accommodates easy mounting in various control panels.

With a Single Pole Double Throw (SPDT) contact configuration and a contact current rating of 10A, this switch supports both 250 V direct current and 250 V alternating current applications, making it highly versatile across multiple industrial sectors. The switch operation is momentary, ensuring electrical contact is made only while the button is held down, automatically returning to the off position upon release.

The switch is rated IP67, providing total protection against dust ingress and temporary immersion in water, suitable for demanding environments such as outdoor security, military equipment, and heavy machinery panels. It functions reliably in extreme temperature conditions ranging from -30°C up to 105°C.

This product meets UL and CSA safety standards, ensuring compliance with international quality requirements. Mounting hardware is included, simplifying installation processes in elevators, railway carriages, process control systems, medical instrumentation, and fishing vessels.

The rugged design with front or rear mount options reduces the chance of tampering, making it ideal for use in external security door controls and earth moving equipment. The solder terminal type enables secure and lasting electrical connections.

In summary, the ITW Switches 76-9513/4044B Push Button Switch is engineered for reliability and toughness in industrial and commercial applications demanding high durability and safety certification.

Robust vandal resistant stainless steel construction. Momentary SPDT contact with 10A rating at 250 V AC/DC. IP67 sealed for dust and temporary water immersion protection. Wide operating temperature range from -30°C to 105°C.

Certified UL and CSA for quality and safety standards. Includes mounting hardware for panel installation. Suitable for military, industrial, medical, and security system use. Front or rear mount options reduce tampering risk.
