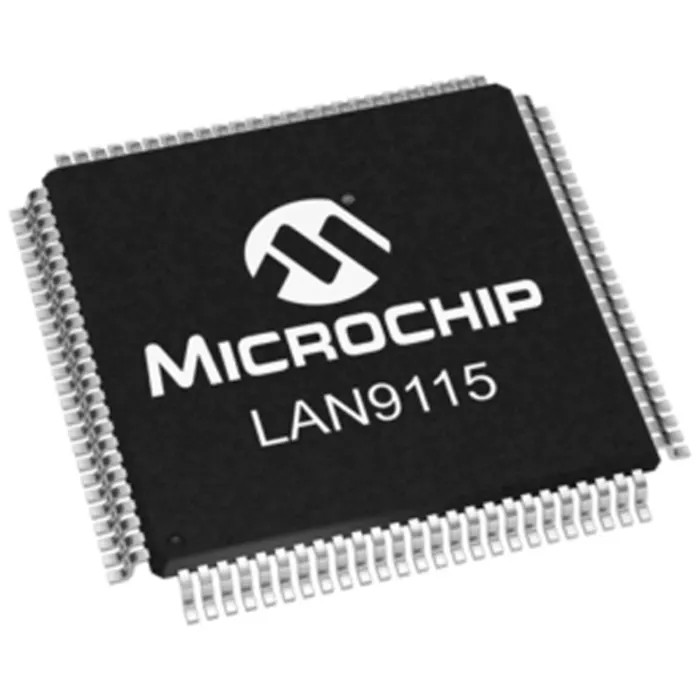

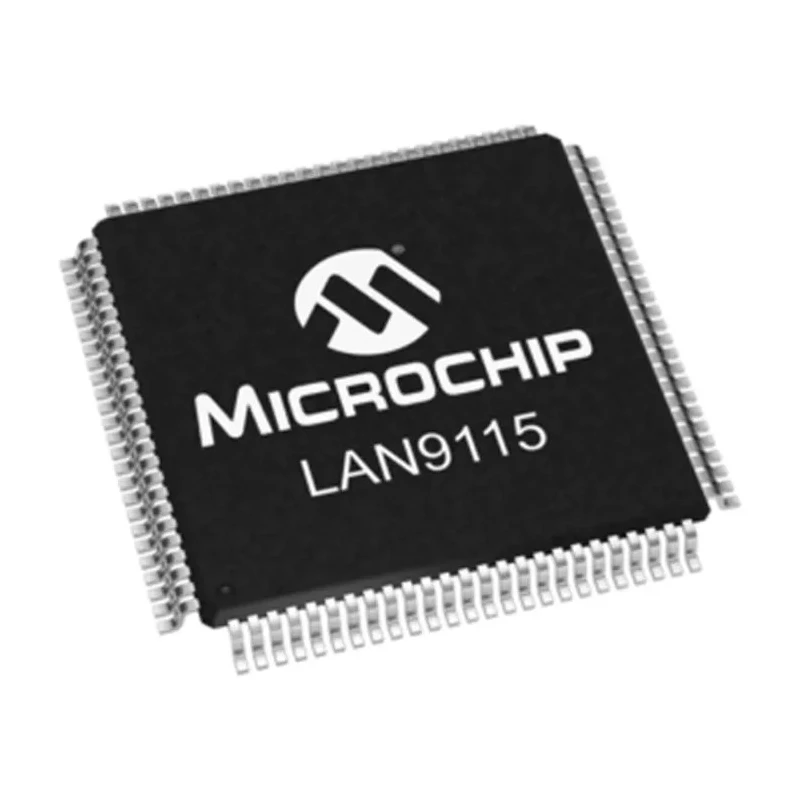

Microchip 100-Pin TQFP Controller IC 3.3V 100 Mbps MII Full Duplex/Half Duplex LAN9115-MT

Free Delivery in India | Lowest Global Shipping Charges

Microchip 100-Pin TQFP Controller IC 3.3V 100 Mbps MII Full Duplex/Half Duplex LAN9115-MT

Name: Microchip 100-Pin TQFP Controller IC 3.3V 100 Mbps MII Full Duplex/Half Duplex LAN9115-MT
Brand: Microchip
SKU: 208007
Price: 18.68 USD
Availability: InStock



Category Ethernet Interface Ics Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.6mm
Length	14.1mm
Model	LAN9115-MT
Width	14.1mm
Mount Type	Surface
Maximum Operating Temperature	70°C
Package Type	TQFP
Minimum Operating Temperature	0°C
Communication Mode	Full Duplex/Half Duplex
Interface Type	MII
Pin Count	100
Maximum Supply Voltage	3.3V
Maximum Data Rate	100Mbps
Loopback Mode	Internal
Standard Supported	IEEE 802.3u

Key Features

Operates at a maximum supply voltage of 3.3 volts.
Supports 100 Mbps data throughput compliant with IEEE 802.3u standard.
Surface mount type with a 100-pin TQFP package for PCB integration.
Interfaces via MII communication protocol for Ethernet connectivity.
Operational temperature range is from 0 to 70 degrees Celsius.
Compact dimensions of 14.1mm length, width, and 1.6mm height optimize board space.
Supports internal loopback mode for diagnostics.
No automotive standards compliance specified.

Product Description

Microchip LAN9115-MT is a 100-pin Thin Quad Flat Package (TQFP) controller integrated circuit operating at 3.3 volts. This Ethernet interface IC supports data rates up to 100 Mbps and complies with IEEE 802.3u standards, making it ideal for network and embedded system applications requiring both full duplex and half duplex communication modes.

The device uses the Media Independent Interface (MII) communication type, facilitating seamless connection to various networking components. Its surface mount package and compact footprint of 14.1mm x 14.1mm with a height of 1.6mm allow efficient use of PCB space in dense electronic layouts.

Operating within a temperature range of 0°C to 70°C, the LAN9115-MT controller is engineered to perform reliably under standard industrial environmental conditions. It incorporates an internal loopback mode to assist in diagnostic processes and system testing, enhancing its utility in development and debugging phases.

The controller IC does not conform to automotive standards but is well-suited for various industrial, commercial, and networking scenarios where robust Ethernet communication is necessary. Its 100-pin TQFP packaging supports automated manufacturing processes, improving integration efficiency and production throughput.

Operates with a maximum supply voltage of 3.3V. Maximum data rate of 100 Mbps compliant with IEEE 802.3u. Surface mount mount type and MII interface for Ethernet communication. Compact TQFP package measuring 14.1mm in length and width, and 1.6mm in height.

Supports full duplex and half duplex communication modes. Internal loopback mode included. Operating temperature range from 0°C to 70°C.

This Microchip controller IC is engineered for Ethernet interface applications within industrial, commercial, and embedded networking systems. It offers reliable communication performance and compact form factor critical for modern electronic device designs. Explore more Ethernet Interface Ics in EnvMart for diverse connectivity solutions.
