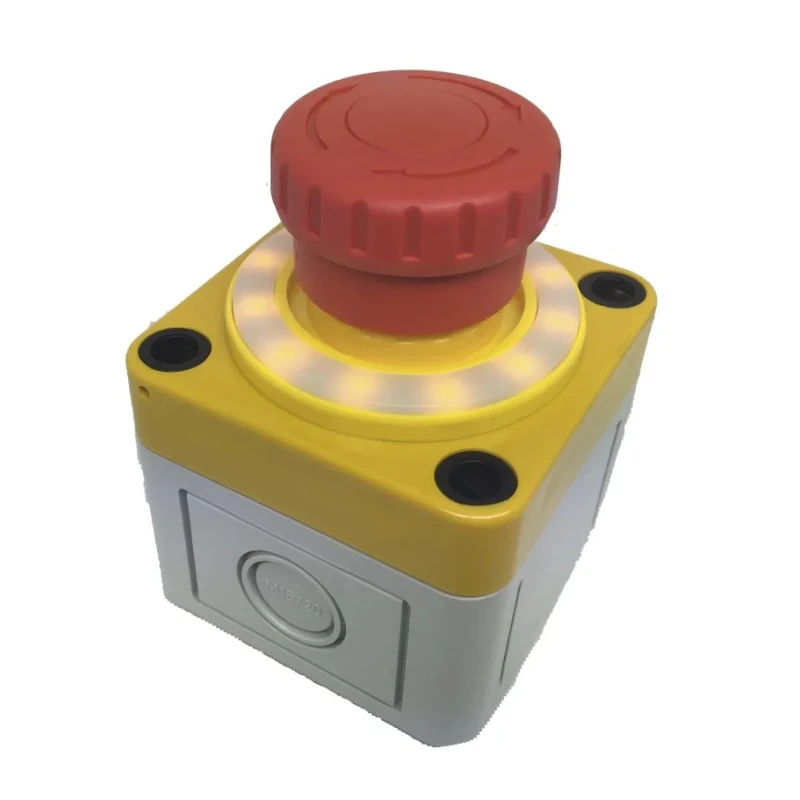

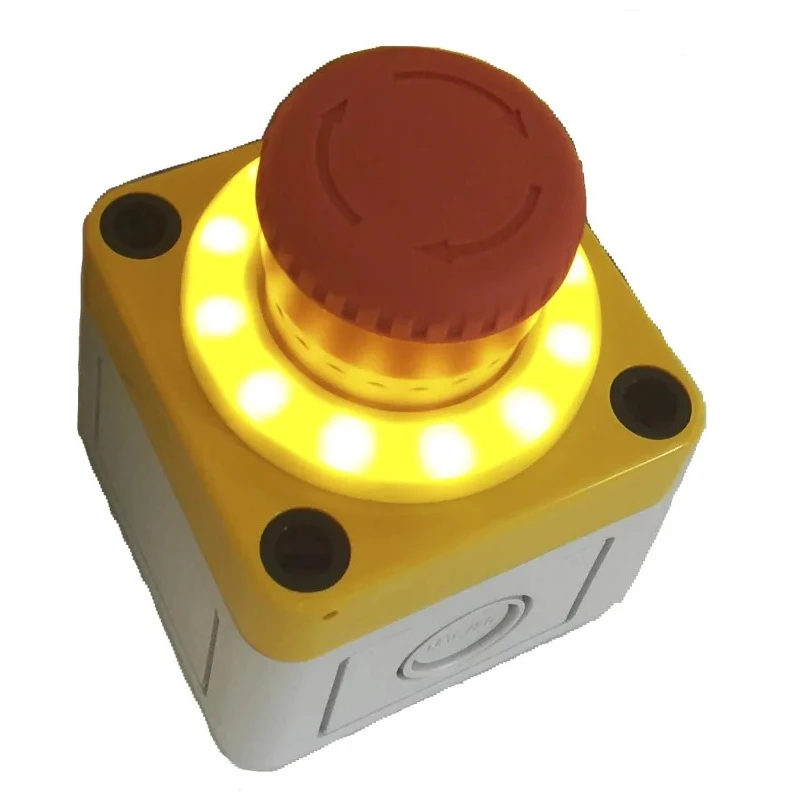

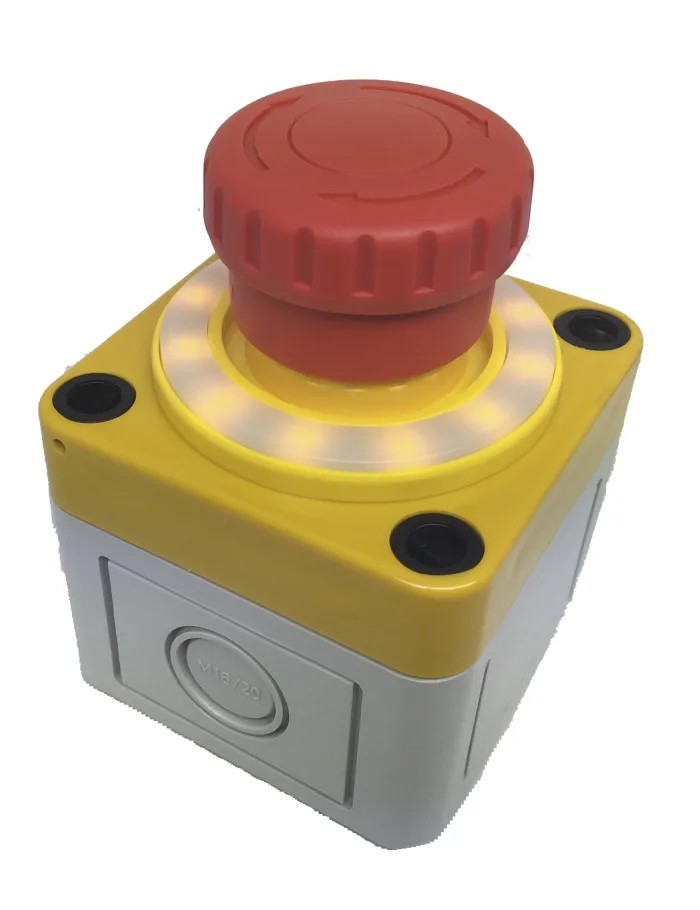

APEM Twist Release Emergency Stop Push Button Panel Mount 22 mm Cutout 2 NC Contacts IP65 A02ES-I

Name: APEM Twist Release Emergency Stop Push Button Panel Mount 22 mm Cutout 2 NC Contacts IP65 A02ES-I
Brand: APEM
SKU: 207958
Price: 7791.42 INR
Availability: InStock



Category Emergency Stop Push Button Brand APEM Condition New

Specifications

Country of Origin	United Kingdom
Brand	APEM
Colour	Red
Model	A02ES-I
IP Rating	IP65
Mount Type	Panel Mount
Series	A02ES-I
Contact Configuration	2 NC
Switch Configuration	1 NO/2 NC
Terminal type	Screw
Contact DC Voltage	24V dc
Contact AC Voltage	240V ac
Cutout Diameter	22mm
Push Button Actuation	Twist Release
High security	no risk of accident in the assembly and maintenance phases
Panel sealed to IP65Mechanical life	250,000 cycles
An ergonomic emergency stop switch certified to the highest safety standards	UL 508, CSA 22.2 and EN 60947-5-5. For dia. 22 mm panel cut-out. Easy to mount and operate. Illuminated version available

Key Features

Designed for safety with 2 normally closed contacts ensuring reliable stop function.
Constructed with a red push button for high visibility and user awareness.
Sealed to IP65 for protection against dust and water ingress in industrial environments.
Rated for AC voltage up to 240V and DC voltage up to 24V for versatile applications.
Equipped with screw terminal type for secure and easy wiring connections.
Certified to UL 508, CSA 22.2 No 14, and EN 60947-5-5 safety standards.
Ergonomically designed for easy mounting and operation with a push to lock and twist to release functionality.
Durable mechanical life rated to 250,000 operating cycles suitable for rigorous industrial use.

Product Description

APEM A02ES-I Series Twist Release Emergency Stop Push Button is an ergonomically engineered safety device designed for industrial panel mounting with a 22 mm diameter cutout. It provides reliable emergency stop capability through its 2 normally closed contact configuration, delivering a high level of security and ease of operation. The push button is colored red for immediate visual identification in safety-critical environments.

Constructed to meet stringent safety certifications including UL 508, CSA 22.2 No 14, and EN 60947-5-5, this push button switch complies with rigorous electrical and operational standards. Rated IP65, the panel seal protects against dust intrusion and water jets, ensuring durable performance in manufacturing, automation, and electrical systems.

The switch handles a contact AC voltage of up to 240V and DC voltage up to 24V with a screw terminal configuration for robust connection integrity. Its twist release actuation provides a fail-safe locking mechanism that prevents accidental resets and ensures operator safety during maintenance.

This model offers a mechanical life expectancy of 250,000 cycles, catering to frequent usage scenarios in construction, HVAC, and industrial machinery applications. The absence of illumination simplifies installation and reduces maintenance requirements while maintaining operational clarity.

Twist release emergency stop for safety-focused operation. Panel mount design with a 22 mm cutout diameter. 2 normally closed contacts for fail-safe circuit interruption. IP65 rated for water and dust resistance in industrial environments.

Compliance with UL 508, CSA 22.2, and EN 60947-5-5 certifications. Red push button for immediate hazard signaling. Screw terminal type for secure electrical connections. Mechanical life expectancy of 250,000 cycles for extended reliability.

This emergency stop push button is ideal for use in industrial automation, electrical switch panels, manufacturing equipment, and safety control systems requiring quick and secure interruption capabilities. Explore more in the Emergency Stop Push Button category at EnvMart for related safety solutions.
