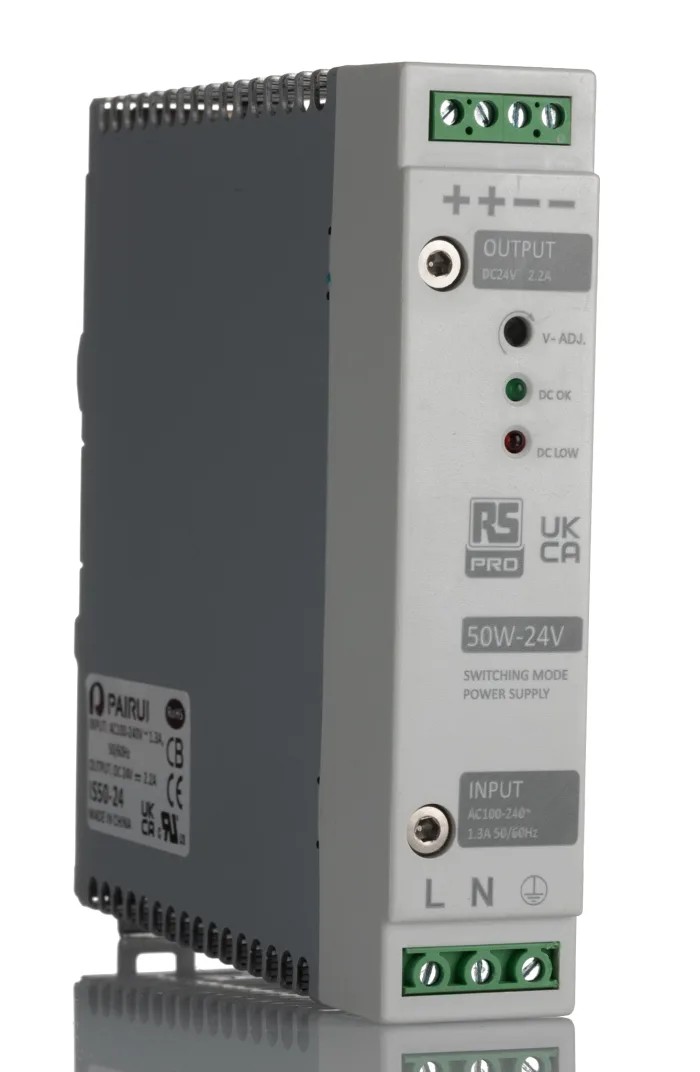

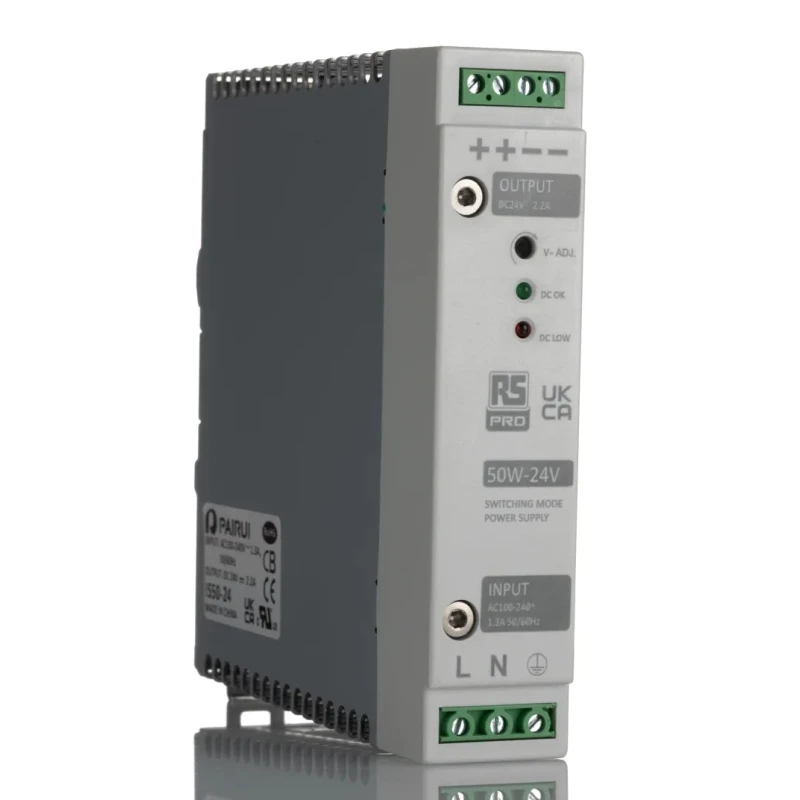

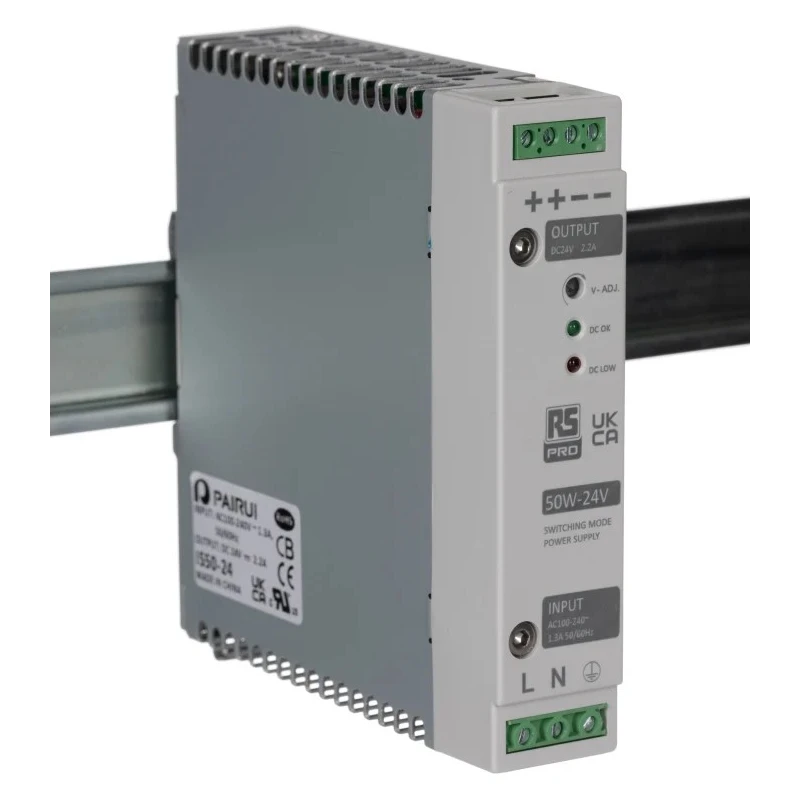

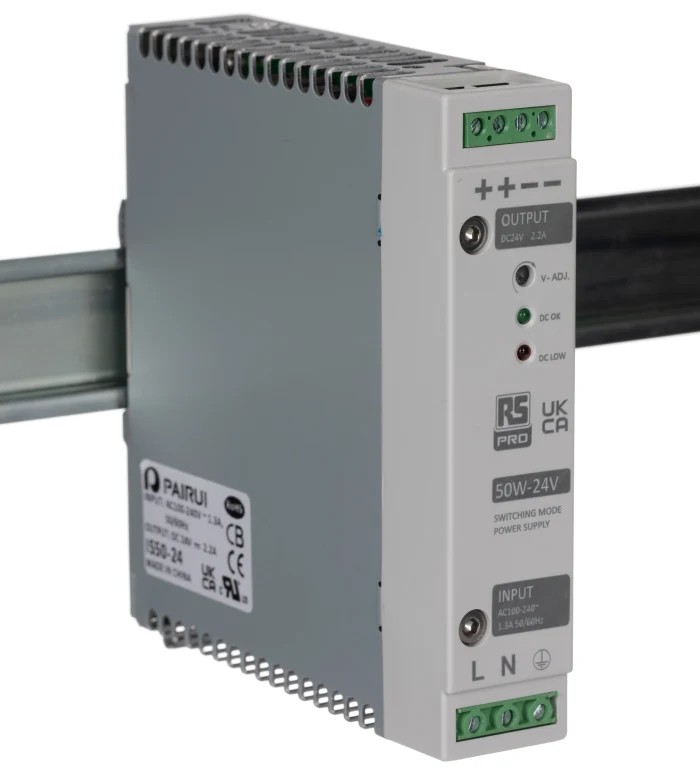

MEAN WELL RS PRO Switch Mode DIN Rail Power Supply 264V AC Input 24.5V DC 2.2A Output 50W 136-8310
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 50W |
| Efficiency | 83% |
| Height | 130mm |
| Model | 136-8310 |
| Depth | 125mm |
| Width | 30mm |
| Output Current | 2.2A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switch Mode Power Supply |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | CB, UL, FCC, cULus, cUL, CE |
| Maximum Output Voltage | 24.5V dc |
| Minimum Input Voltage | 90V ac |
Key Features
- Compact 35mm DIN rail mounting for space saving installation.
- Wide universal AC input voltage range from 90 to 264V AC.
- High efficiency of 83% reduces energy loss during operation.
- LED indicators for DC power and low DC output status.
- Protection against short circuit, over voltage, over current, and overheating ensures device safety.
- Operational temperature range from -25°C to 70°C for versatile industrial applications.
- Single-phase input with a single DC output simplifies power delivery.
- Tested with 100% full load burn-in to ensure reliability.
Product Description
MEAN WELL 136-8310 Switch Mode DIN Rail Power Supply is engineered for industrial power conversion, accepting an AC input voltage up to 264V and providing a stable 24.5V DC output at 2.2A delivering 50W power. Designed for mounting on standard 35mm DIN rails, this compact units suits various electronic control systems, factory automation, and process control applications.
The power supply features universal single-phase AC input voltage ranging from 90V to 264V AC, making it compatible with diverse power environments. It achieves an efficiency of 83%, minimizing heat generation and operating costs. The unit is certified with CB, UL, FCC, cULus, cUL, and CE standards ensuring compliance with safety and quality requirements.
Equipped with LED indicators to show DC power status and low DC voltage alerts, the power supply includes comprehensive protection mechanisms like short circuit, over voltage, over current, and over temperature safeguards, enhancing device safety and longevity. The operating temperature range spans -25°C to 70°C, supporting demanding industrial environments.
This RS PRO model 136-8310 power supply is ideal for industrial users needing reliable, compact, and efficient DC power conversion. Its free air convection cooling design eliminates the need for noisy fans, ensuring quiet operation.
Applications include process control equipment, factory automation systems, transportation technology, and other commercial uses where DIN rail mounted power is essential. Compact 35mm DIN rail mounting for space saving installation.
Wide universal AC input voltage range from 90 to 264V AC. High efficiency of 83% reduces energy loss during operation. LED indicators for DC power and low DC output status. Protection against short circuit, over voltage, over current, and overheating ensures device safety.
Operational temperature range from -25°C to 70°C for versatile industrial applications. Single-phase input with a single DC output simplifies power delivery. Tested with 100% full load burn-in to ensure reliability. Suitable for factory automation, process control, and industrial equipment.
Certifications include CB, UL, FCC, cULus, cUL, and CE. Explore more Power Supply options from MEAN WELL and other professional industrial power conversion products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 90V to 264V AC.
The maximum power output of this power supply is 50W.
The dimensions are 130mm in height, 125mm in depth, and 30mm in width.
It has an efficiency rating of 83%.
This power supply is certified with CB, UL, FCC, cULus, cUL, and CE standards.
The operational temperature range spans from -25°C to 70°C.
It utilizes free air convection cooling, eliminating the need for noisy fans.
This unit has a single DC output.
It is suitable for applications in factory automation, process control, and transportation technology.
It includes protection against short circuit, over voltage, over current, and overheating.

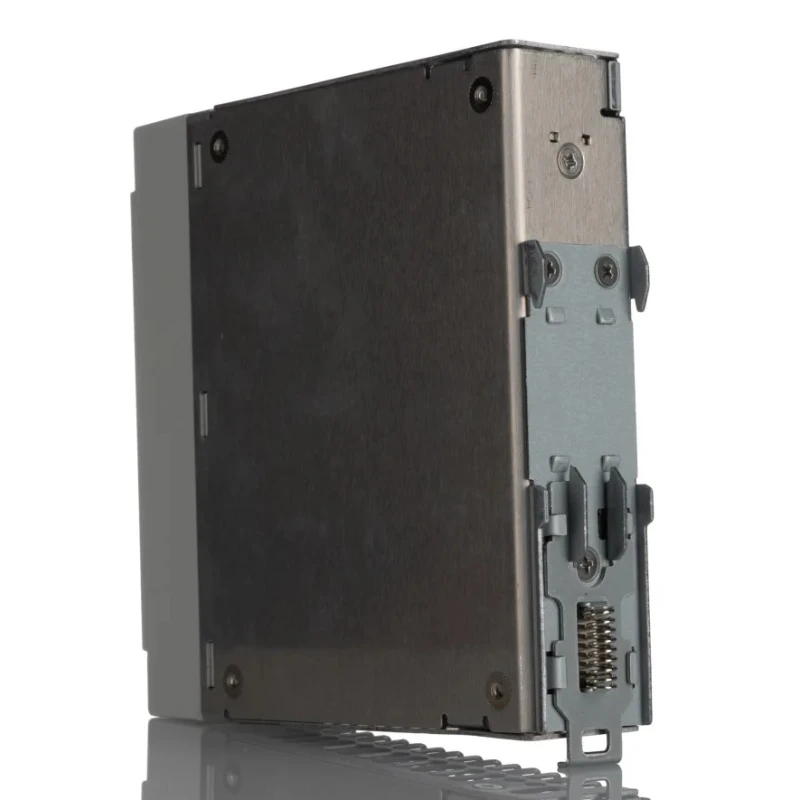

Yes, it is designed for compact 35mm DIN rail mounting.
