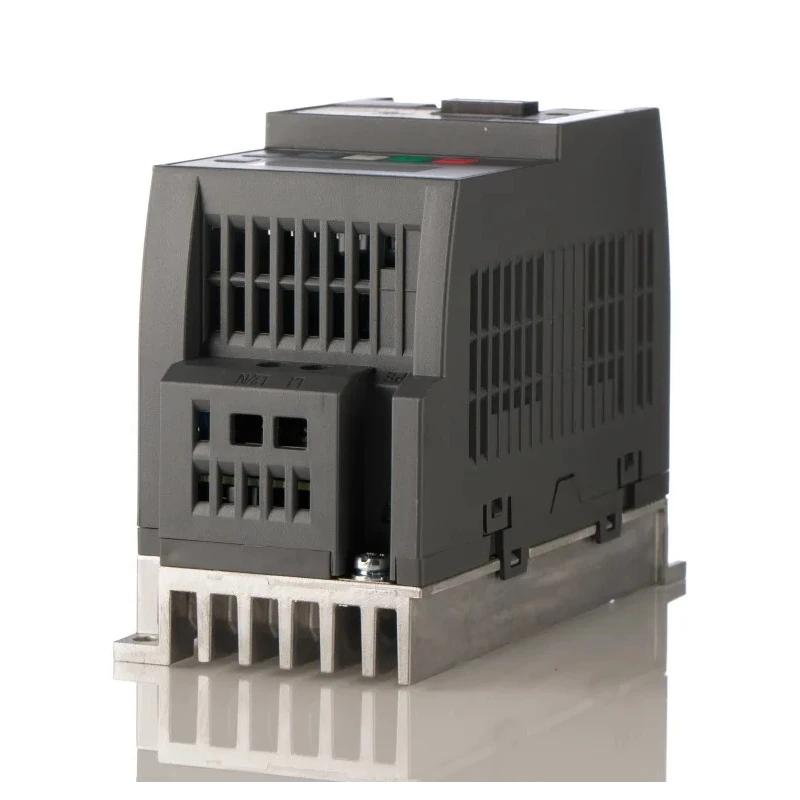

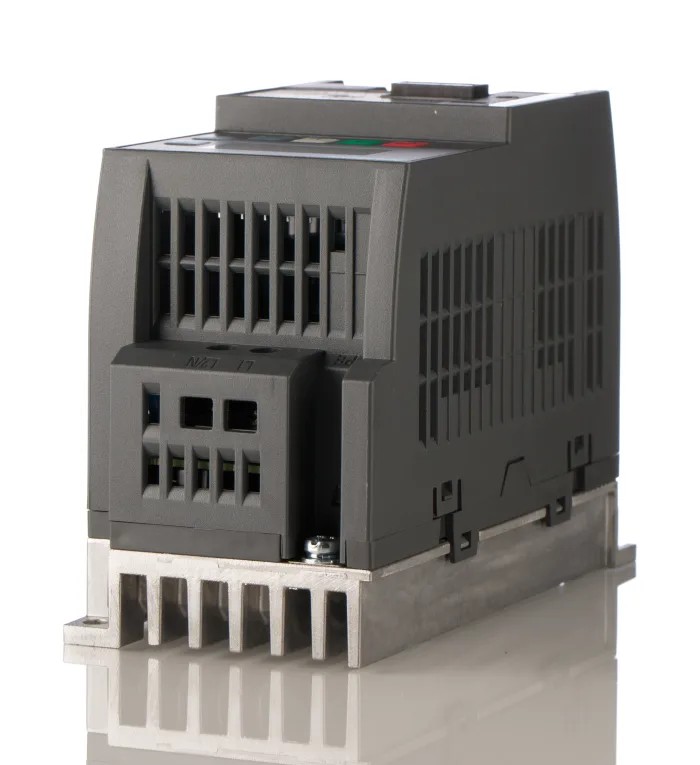

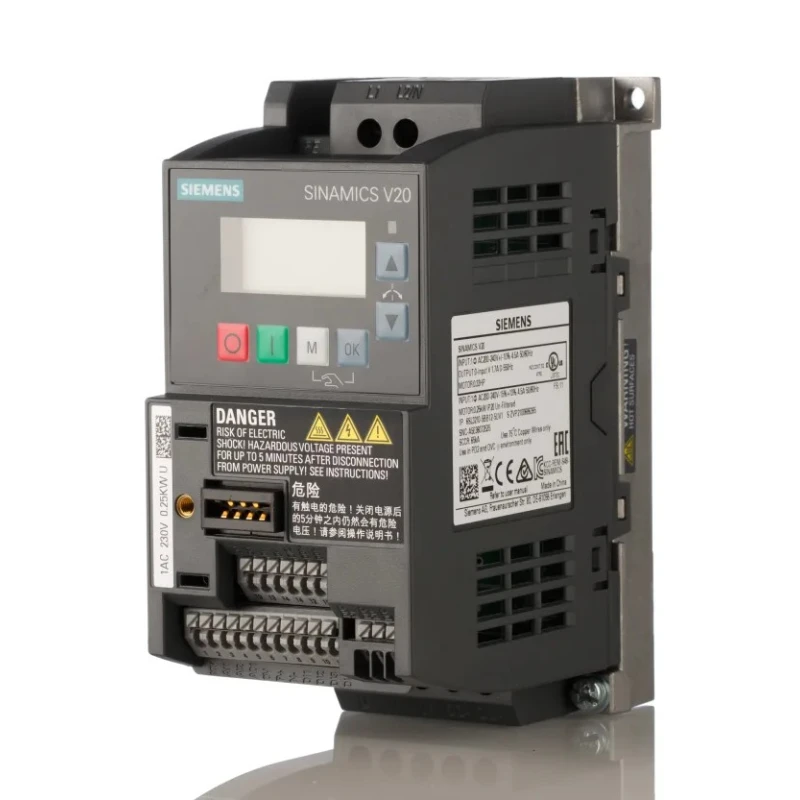

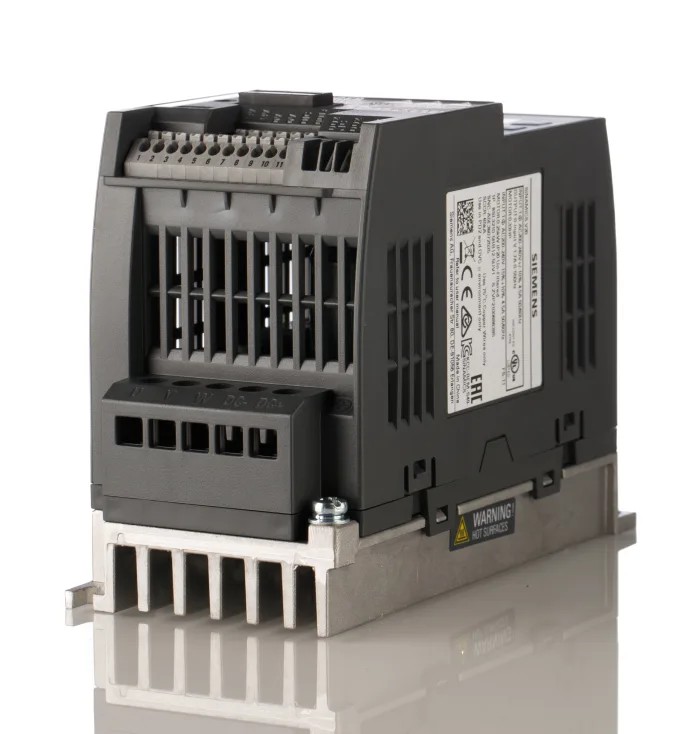

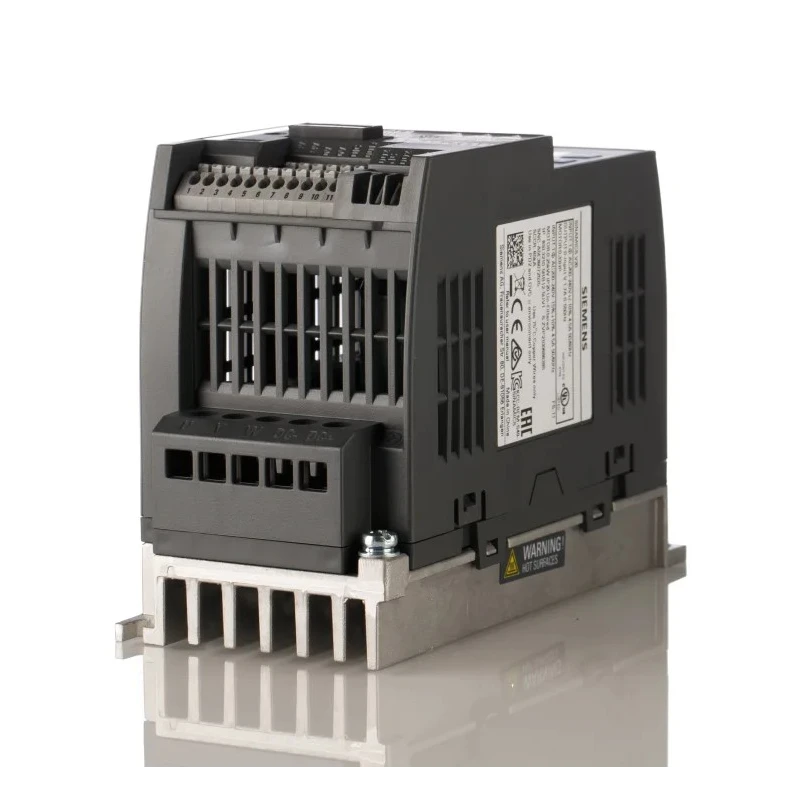

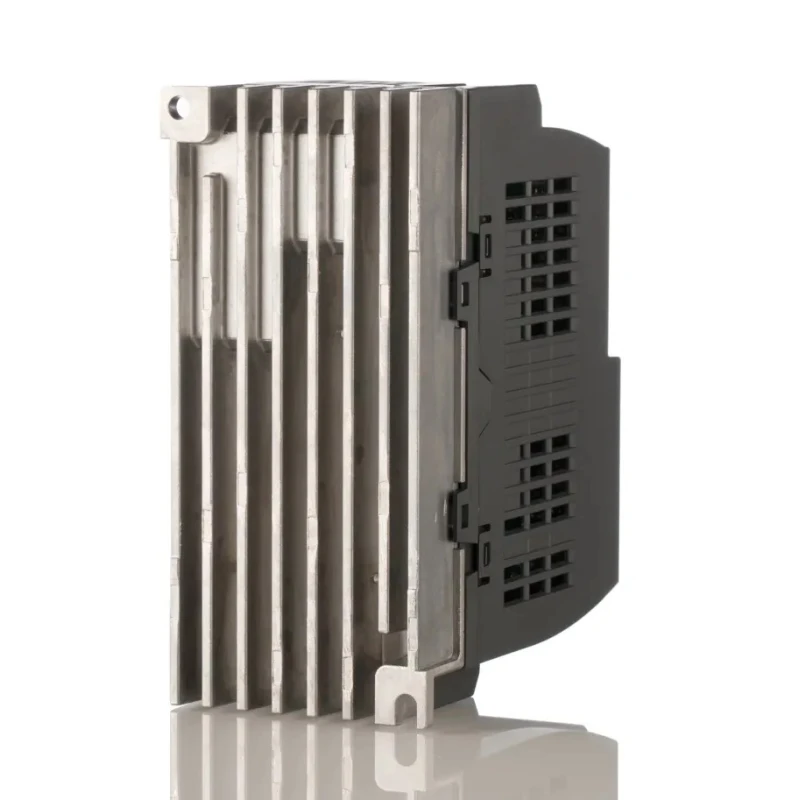

Siemens Inverter Drive SINAMICS V20 Series 250 W 1 Phase 230V AC 1.7 A 6SL3210-5BB12-5UV1

Siemens 6SL3210-5BB12-5UV1 inverter drive from the SINAMICS V20 Series provides a power rating of 250 W with a single phase 230V AC supply and 1.7 A maximum output current. This inverter drive converts AC power to DC power and then back to AC with variable frequency, supporting motor speed regulation for industrial automation applications.

Its wide output frequency range up to 550Hz allows use in both low-frequency and high-frequency motor control scenarios. The drive supports connection via USS or Modbus remote terminal units for efficient communication and remote operation. It is compatible with AC motors and has an AC drive type.

Designed for flexible installation, it supports side and wall mount with compact dimensions of 142 mm length, 68 mm width, and 108 mm depth, making it suitable for space-efficient control panels. The unit operates reliably between -10°C and +60°C ambient temperatures thanks to an advanced cooling design that prevents overheating.

Energy efficiency is enhanced by an ECO mode that enables standby operation to minimize power consumption when the motor is not active. The enclosure includes control buttons for easy configuration and adjustment without the need for additional tools.

This product meets a range of international safety and performance standards including CE, C-Tick (RCM), cULus, EN 60204-1, EN 61800-3, EN 61800-5-1, and KCC certifications. The IP20 protection rating provides dust ingress protection suitable for industrial environments. It is produced in China.

Supports wide output frequency range up to 550Hz for versatile applications. Compatible with AC motors for effective speed control. Wall and side mounting options enabled by compact size and design. Operates reliably within -10°C to 60°C environmental range.

Includes energy-saving ECO mode to reduce power consumption in standby. Advanced cooling design prevents overheating during operation. Control buttons on enclosure enable straightforward configuration. Complies with CE, C-Tick (RCM), cULus, EN 60204-1 and related standards.

IP20 rated protection suitable for industrial environments.

This Siemens inverter drive is ideal for industrial and commercial automation use cases including pump and fan control, conveyor systems, and variable speed motor applications. Its robust design and energy-saving features support sustainable industrial operations.
