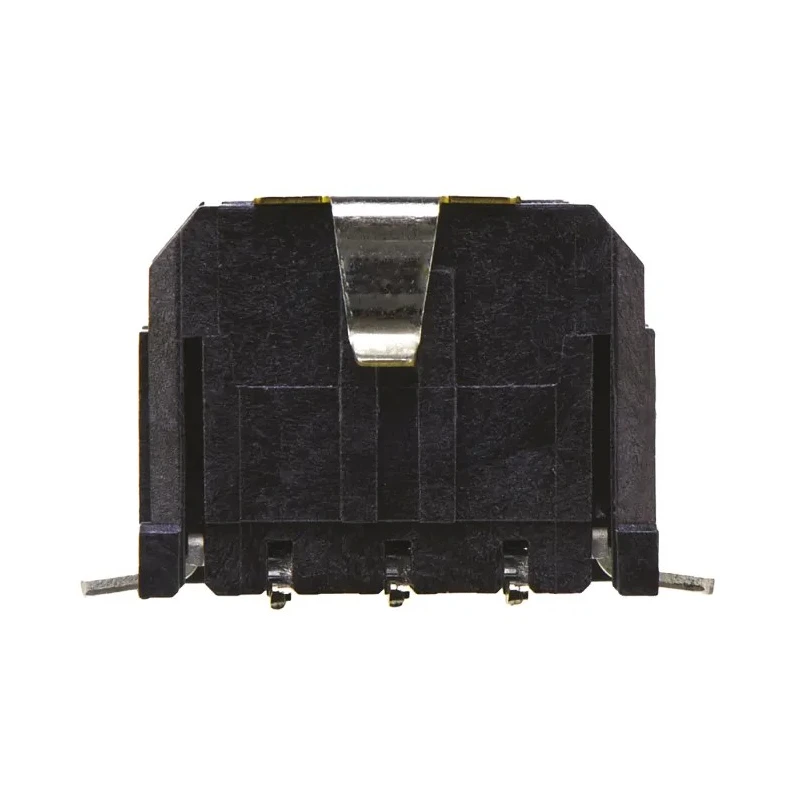

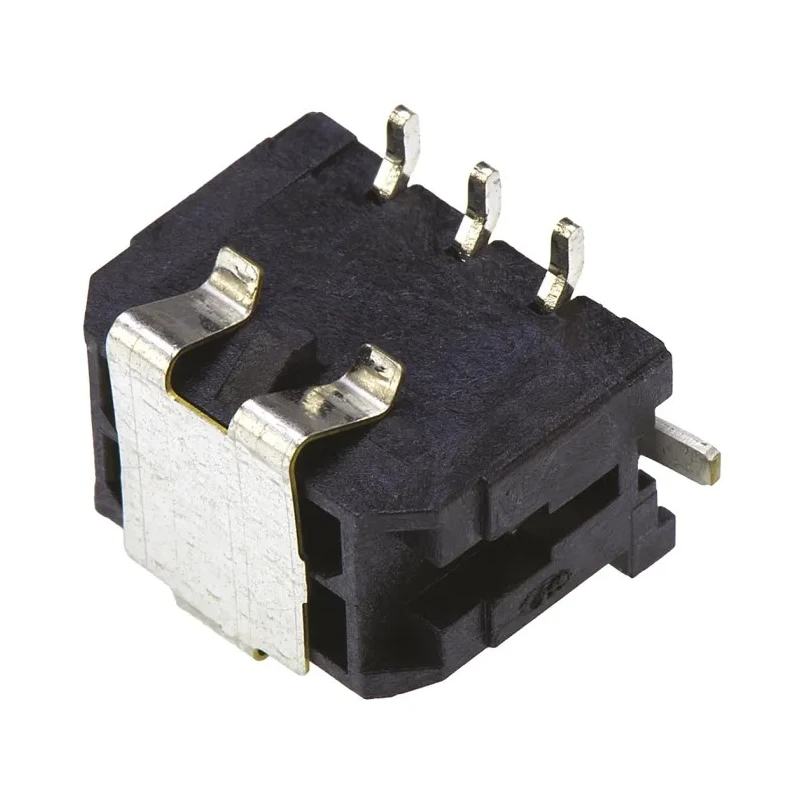

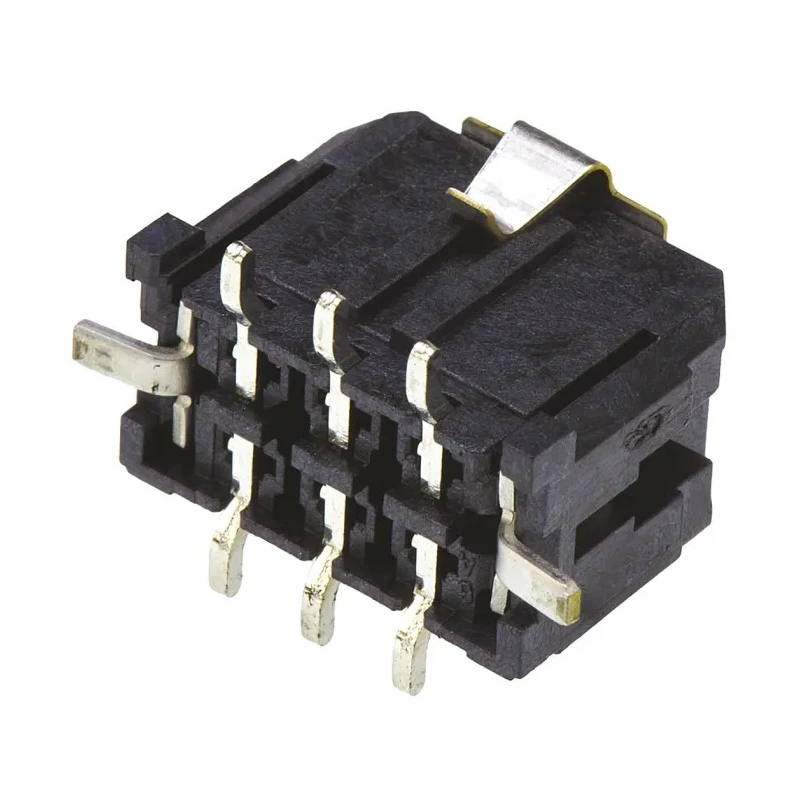

Molex Micro-Fit 3.0 Series Straight Surface PCB Header 6 Contacts 3 mm Pitch 2 Row Shrouded 43045-0618

Free Delivery in India | Lowest Global Shipping Charges

Molex Micro-Fit 3.0 Series Straight Surface PCB Header 6 Contacts 3 mm Pitch 2 Row Shrouded 43045-0618

Name: Molex Micro-Fit 3.0 Series Straight Surface PCB Header 6 Contacts 3 mm Pitch 2 Row Shrouded 43045-0618
Brand: Molex
SKU: 206465
Price: 3.14 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	5A
Mount Type	Surface
Contact Material	Brass
Series	Micro-Fit 3.0
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	3mm
Contact Plating	Tin
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

High current capacity supporting up to 5A in a compact footprint.
Constructed with brass contact material and tin plating for reliable conductivity.
Features positive latching mechanism preventing accidental disconnections.
Housings made from high-temperature UL 94V-0 liquid crystal polymer, withstands IR reflow soldering up to 265°C.
Solder tabs ensure secure surface mount to PCB boards.
Operates reliably between -40°C and 105°C temperature range.
Designed for a voltage rating of 250V with 3mm mating pin length.
Ideal for low to mid power applications including military, solar power, consumer appliances, telecommunications, and medical equipment.

Product Description

Molex 43045-0618 Micro-Fit 3.0 Series Straight Surface PCB Header is a premium dual-row, 6 contact connector featuring a 3 mm pitch and shrouded housing designed for wire-to-board applications. It supports currents up to 5A, offering one of the highest current ratings within a small connector footprint.

The connector body is made of high-temperature UL 94V-0 rated liquid crystal polymer, capable of withstanding temperatures up to 265°C during IR reflow soldering. Brass contacts with tin plating ensure consistent electrical conductivity and corrosion resistance. Solder tabs enhance mechanical stability securing the connector firmly on the PCB surface mount.

The product includes a positive latching mechanism to prevent accidental disconnections, providing reliability in demanding environments. It operates effectively across a wide temperature range from -40°C to 105°C and is rated for voltages up to 250V. The mating pins have a length of 3 mm to ensure proper engagement and reliable contact.

These Micro-Fit 3.0 connectors are used extensively across various industries including military COTS systems, solar power setups, consumer electronic appliances such as dryers and refrigerators, data communication hardware like routers and servers, medical instruments, telecommunications infrastructure, and gaming terminals.

High current carrying capacity in a minimal footprint. Robust high-temperature polymer housing suitable for IR reflow soldering. Positive locking to secure mating connections. Fully isolated dual beam terminals ensure excellent electrical performance and contact reliability.

Solder tabs provide secure PCB attachment. Wide operating temperature range from -40°C to 105°C. Voltage rating suitable up to 250V. Constructed for wire-to-board applications with a 3 mm pitch between contacts.

This PCB Header represents a reliable connector choice for industrial, laboratory, telecommunications, construction, manufacturing, and electronic assembly sectors. Discover more PCB connectors and related electronic components on EnvMart's platform.
