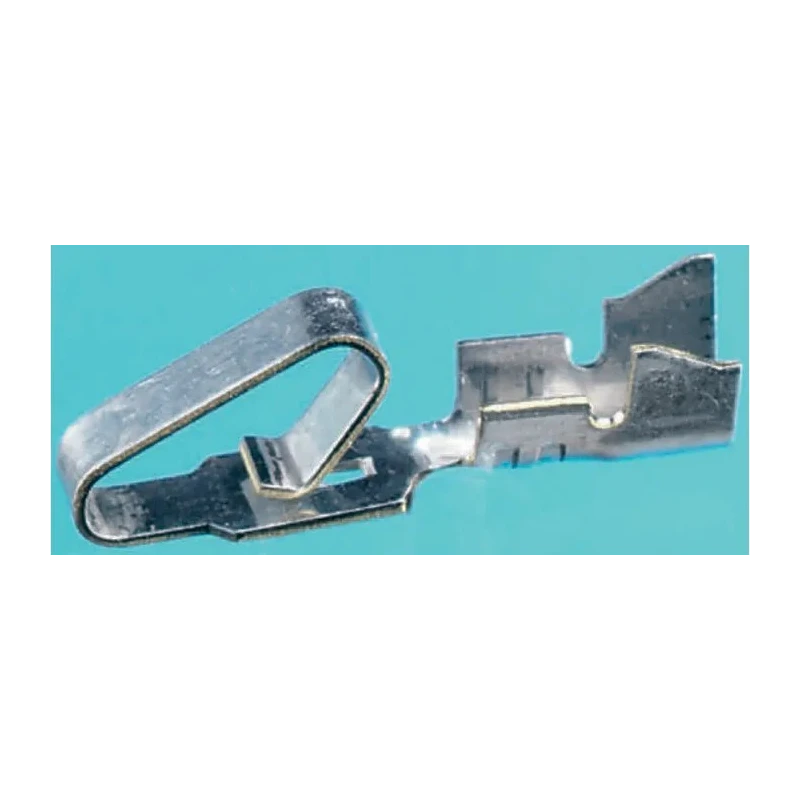

Molex 2478 Series Female Crimp Terminal for KK 396 Connector Housing, 24 AWG Min, 18 AWG Max, Brass Contact with 08-55-0104

Free Delivery in India | Lowest Global Shipping Charges

Molex 2478 Series Female Crimp Terminal for KK 396 Connector Housing, 24 AWG Min, 18 AWG Max, Brass Contact with 08-55-0104

Name: Molex 2478 Series Female Crimp Terminal for KK 396 Connector Housing, 24 AWG Min, 18 AWG Max, Brass Contact with 08-55-0104
Brand: Molex
SKU: 206377
Price: 0.24 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Current	5A
Gender	Female
Contact Material	Brass
Series	2478
Termination Type	Crimp
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
For Use With	KK 396 Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	6mΩ

Key Features

The terminal carries up to 5A current capacity safely within operating temperatures from 0°C to 50°C.
Constructed using brass contact material with gold plating to ensure low contact resistance of 6 milliohms.
Termination by crimp ensures secure mechanical and electrical connection to wires.
Compatible for use with KK 396 series connectors with a robust dual cantilever design for consistent spring-like contact with male pins.
Ideal for applications in automotive, consumer electronics, medical, communications, and networking industries.
The terminal supports wire sizes ranging from 24 AWG (0.2 mm²) to 18 AWG (0.8 mm²) for flexible usage.
Features a locking tang to prevent terminal back out from connector housing ensuring connection reliability.

Product Description

Molex 08-55-0104 is a female crimp terminal from the 2478 series designed for use with KK 396 Connector Housing, suitable for wire gauges ranging from 24 AWG minimum to 18 AWG maximum. It supports a current rating of 5 amps and operates within a temperature range of 0°C to 50°C. The contact material is brass with a gold plating finish which provides low electrical contact resistance of 6 milliohms to ensure efficient conduction.

The terminal features a dual cantilever square post contact area that maintains stable spring-like connectivity with male pin headers, enhancing durability and connection quality. The crimp termination type guarantees reliable mechanical and electrical coupling to wire conductors. A locking tang on the terminal prevents it from backing out once fixed into the connector housing, promoting secure connections.

This product is widely used in diverse industrial and commercial sectors including automotive manufacturing, consumer electronics, medical equipment, communication networks, and data computing applications due to its reliable electrical performance and robust construction.

The terminal handles wire sizes from 24 AWG (0.2 mm²) up to 18 AWG (0.8 mm²). Gold plating on the brass contact delivers corrosion resistance and optimal conductivity. The crimp design ensures fast assembly and secure wire retention.

Operating temperature range is from 0°C to 50°C suitable for many environments. Electrical current rating is 5 amps suitable for low power signal applications. This 08-55-0104 terminal integrates seamlessly with 2478 series connectors to provide dependable signal and power connections.
