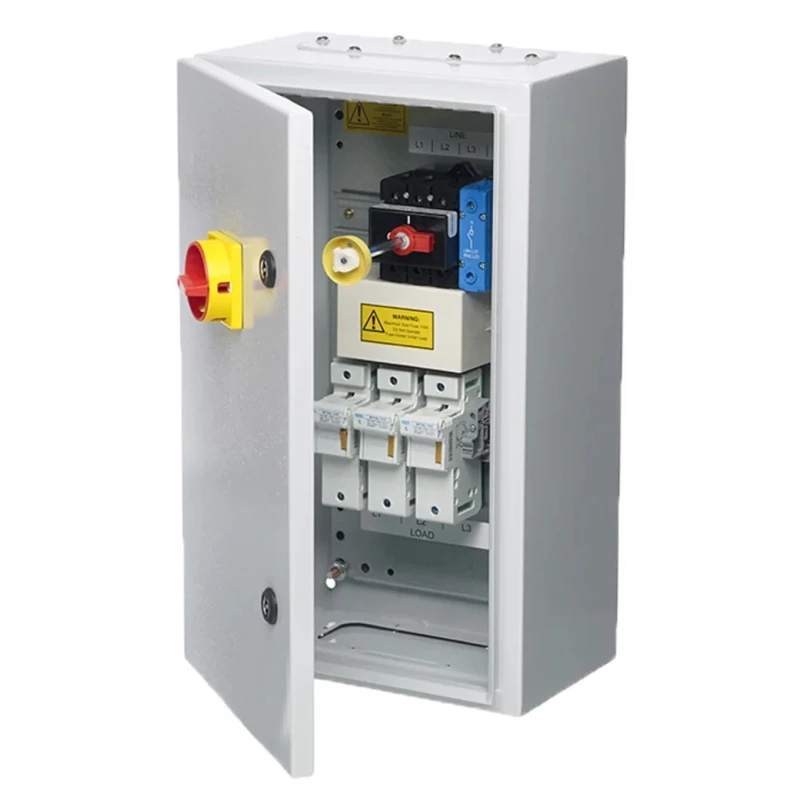

RS PRO 3-Pole Panel Mount Isolator Switch, IP65, 63A, 690V AC, 90 kW IP65

RS PRO IP65 3-Pole Panel Mount Isolator Switch is a robust electrical switch designed for panel mounting applications. It is suitable for industrial use in electrical power distribution, load isolation, and motor control scenarios. The isolator switch supports a rated current of 63A and a switching power of 90 kW at 690V AC, making it suitable for demanding electrical environments.

The enclosure is made of epoxy powder coated steel which provides excellent mechanical strength and resistance to corrosion, ensuring long-term reliability even in harsh conditions. The red switch handle is constructed from corrosion-resistant plastic, enhancing operational safety and durability. An IP65 rating confirms that the switch is dust-tight and protected against water jets, ideal for indoor and certain outdoor settings.

This product is equipped with 22 x 58 mm fuse holders to provide effective overcurrent protection. The switch design allows easy panel mounting via four 8.5 mm screw holes, facilitating secure installation. The handle can be locked with a padlock to prevent accidental or unauthorized operation, adding a layer of safety.

Designed to conform with IEC/EN standards, this isolator switch meets stringent industrial safety and usability requirements. Its large dimensions (500 mm length, 300 mm width, 244 mm depth) accommodate the necessary internal components securely.

Constructed from epoxy powder coated steel for enhanced durability. Lockable red plastic handle prevents unauthorized switching. IP65 rated enclosure ensures protection against dust and moisture. Fitted with standard 22 x 58 mm fuse holders for safety.

Panel mountable with four screw holes for stable installation. Compliant with IEC/EN electrical standards for quality assurance. Supports 3 poles with a rated switching current of 63A. Suitable for use in electrical power distribution and motor control.

This isolator switch is ideal for industrial, commercial, and manufacturing settings requiring reliable load isolation and motor control. It is an excellent choice for electrical panels that demand rugged and precise switching devices. Browse our broad range of Isolator Switches to find the solution that suits your application needs.
